Yokogawa DL950
| Atributo | Valor |
|---|---|
| Canales de entrada analógica | Hasta 16 canales analógicos (con módulos de expansión) |
| Frecuencia de muestreo máxima | 100 MS/s por canal |
| Resolución vertical | 12 bits |
| Ancho de banda | 200 MHz (-3 dB) |
| Memoria de adquisición | Hasta 1 GW (Gigaword) por canal |
| Pantalla | Pantalla táctil LCD TFT a color de 12,1 pulgadas |
| Tipos de módulos de entrada compatibles | Módulos de voltaje, temperatura, CAN, SENT, LIN y lógicos |
| Almacenamiento de datos | SSD interno, USB y red (compatible con almacenamiento continuo en tiempo real) |
| Interfaz de comunicación | Ethernet (1000BASE-T), USB 3.0, GP-IB (opcional) |
| Fuente de alimentación | 100-240 V CA, 50/60 Hz |
Yokogawa DL950 Options:
- DL950 - /VCE - Required option for using CAN Bus Monitor Module (720240), CAN/CAN FD Monitor Module (720242), CAN & LIN Bus Monitor Module (720241), or SENT Monitor Module (720243) with the DL950
- DL950 - /P4 - Probe power option (4-output) for use with current probes and differential probes
- DL950 - /P8 - Probe power option (8-output) for use with current probes and differential probes
| Model | DL950 |
|---|

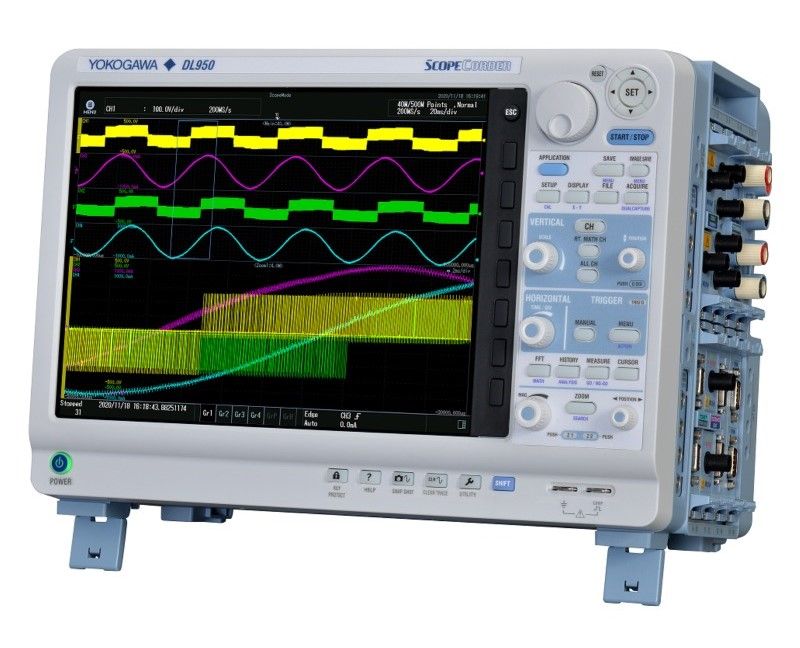

YOKOGAWA DL950 ScopeCorder
The Yokogawa DL950 ScopeCorder is a powerful and versatile instrument designed to capture and analyze various electrical, physical sensor signals, and serial buses. With its high sampling rates and long recording capabilities, it offers a detailed view of waveform details and enables monitoring trends over extended periods. Equipped with eight slots for input modules, the DL950 ScopeCorder allows users to combine measurements of electrical signals, mechanical performance parameters, and decoded vehicle serial bus signals, offering up to 160 channels of synchronized measurements when multiple units are synchronized. Its large touch screen and user-friendly application menu simplify pre-measurement setup, making it the most valued instrument in any lab.
The Yokogawa DL950 ScopeCorder excels in capturing any abnormal signal at a sample rate of up to 200 MS/s and offers efficient data transfer to a PC using 10 Gbps Ethernet. With a wide range of plug-in modules available, users can perform isolated voltage, temperature, acceleration, and strain measurements, among others. The Yokogawa DL950's 512 GB internal SSD allows long-duration recording at high speeds, and the non-volatile flash memory ensures data retention even after power-off. Its ability to extend the number of channels up to 160 by connecting sub units to a single main unit with optical fiber cords enhances its flexibility and adaptability for various measurement scenarios. Whether in the lab or on-field testing, the DL950 ScopeCorder provides unmatched precision and data capturing capabilities, making it an indispensable tool for engineers and researchers alike.
Specifications for the YOKOGAWA DL950 ScopeCorder Include:
| Module Slots | 8 |
| Capture Memory | 1 Gpoints (8 Gpoints option) |
| Sample Rate | 200 MS/s |
| Analog Resolution | Up to 16-bit |
