Exfo

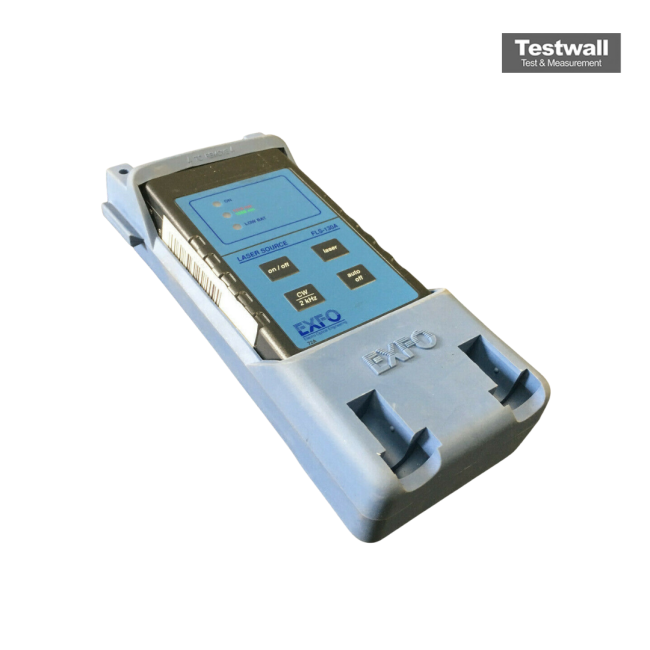

Exfo FLS-136A
Source laser
Stabilized LED Light Source Light Source Type
1310 nm / 1550 nm Wavelength
-7 dBm (typical) Output Power
±0.05 dB over 1 hour Power Stability
Universal (FC, SC, ST, LC interchangeable adapters) Connector Type
| Attribute | Value |
|---|---|
| Light Source Type | Stabilized LED Light Source |
| Wavelength | 1310 nm / 1550 nm |
| Output Power | -7 dBm (typical) |
| Power Stability | ±0.05 dB over 1 hour |
| Connector Type | Universal (FC, SC, ST, LC interchangeable adapters) |
| Fiber Compatibility | Single-mode fiber (SMF) |
| Modulation Modes | CW, 270 Hz, 1 kHz, 2 kHz |
| Battery Life | Up to 200 hours with standard AA batteries |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Standards Compliance | ITU-T G.650, IEC 61300-3-4 |
| Model | FLS-136A |
|---|
The FLS-136A Laser Source features a dual-wavelength source. The unit delivers continuous wave (CW) signals for power/loss measurements and 2-kHz signal generation for fiber identification. Powering options include a 9 V battery and a standard AC adapter. The battery life offers a minimum of seven hours of continuous operation. An auto-off function with a 10-minute timer is included to preserve battery life.
