Fluke 1746
| Attribute | Value |
|---|---|
| Measurement Parameters | Voltage (V), Current (A), Power (W), Power Factor, Frequency (Hz), Harmonics, Energy (kWh), Demand |
| Voltage Measurement Range | Up to 600 V RMS (Phase-to-Neutral), Up to 1000 V RMS (Phase-to-Phase) |
| Current Measurement Range | 1 A to 3000 A RMS (via compatible current probes/clamps) |
| Frequency Range | 40 Hz to 70 Hz |
| Harmonics Analysis | Up to 50th harmonic for voltage and current |
| Memory / Data Storage | Internal memory capable of storing up to 999 snapshots and extended logging sessions |
| Display | Backlit LCD display with real-time readings and graphical waveform display |
| Communication Interface | USB and RS-232 serial interface for data transfer to PC; compatible with Fluke software |
| Power Supply | Powered directly from the measured line (voltage inputs), 100 V to 600 V AC |
| Safety Rating | CAT III 600 V / CAT II 1000 V, compliant with IEC 61010-1 safety standards |
Fluke 1746 Options:
- 1746 - 1746-8/UPGRADE - Upgrade 1746 to 1748 functionality (includes hanger kit)
- 1746 - IEEE519/REPORT - Software license for IEEE 519 reporting
- 1746 - 15/EUS - WiFi/BLE Adapter + i17XX-flex1500 24" Current Probe (x4) + EU/US/UK Power Cords with MA-C8 adapter
- 1746 - 30/EUS - WiFi/BLE Adapter + i17XX-flex3000 24" Current Probe (x4) + EU/US/UK Power Cords with MA-C8 adapter
- 1746 - B/EUS - WiFi/BLE Adapter + EU/US/UK Power Cords with MA-C8 adapter (no current probes)
- 1746 - 15/INTL - i17XX-flex1500 24" Current Probe (x4) + EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1746 - 30/INTL - i17XX-flex3000 24" Current Probe (x4) + EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter
- 1746 - B/INTL - EU/US/UK/CN-AUS/BR Power Cords with MA-C8 adapter (no current probes)
| Model | 1746 |
|---|

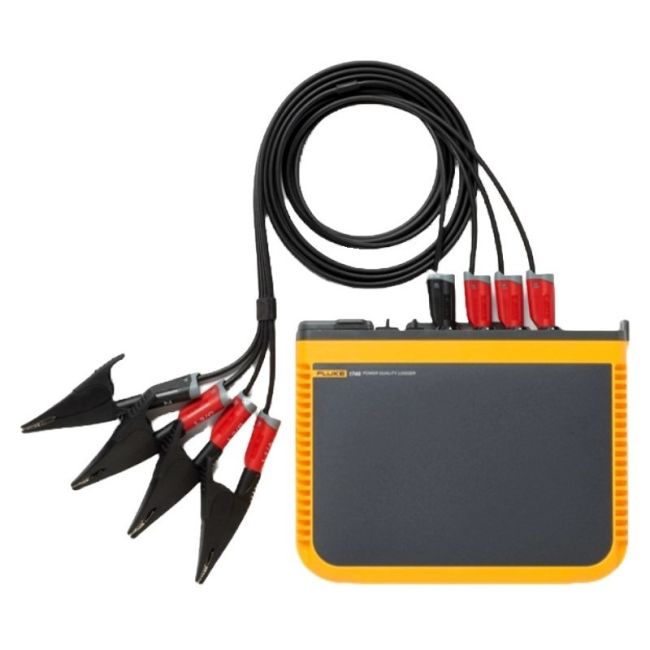

FLUKE 1746 Three Phase Power Quality Logger
The Fluke 1746 Three-Phase Power Quality Loggers is designed for technicians and engineers troubleshooting, quantifying energy usage, and analyzing power distribution systems. Compliant with international power quality standards, such as IEC 61000-4-30, it can capture events to uncover intermittent power quality issues more easily.
The Fluke 1746 logger measures all three voltage and cur phases, plus neutral current, meeting IEC 61000-4-30 Class A Edition 3 standard for power quality measurement. It includes features like event waveform capture, RMS event profile, and measures harmonics, interharmonics, unbalance, flicker, and rapid voltage changes. The Fluke 1746 offers wireless real-time measurements, easy data download, and advanced analysis capabilities through the Energy Analyze plus software.
Specifications for the FLUKE 1746 Three Phase Power Quality Logger Include:
| Voltage Range | 1000 V |
| Frequency Range | 42.5 Hz to 69 Hz |
| Max Voltage Resolution | 0.1 V |
