Fluke 1775
| Attribute | Value |
|---|---|
| Voltage Measurement Range | Up to 1000V AC/DC |
| Frequency Range | 10 Hz to 430 Hz |
| Power Quality Analysis | Single-phase and three-phase power quality monitoring |
| Current Measurement | Via external current probes (flexible, clamp, or Rogowski coils) |
| Memory Storage | Internal memory for logging and event capture |
| Display | Color LCD touchscreen display |
| Harmonic Analysis | Up to 50th harmonic measurement and analysis |
| Communication Interface | USB and Ethernet connectivity for data transfer |
| Standards Compliance | IEC 61000-4-30 Class A compliant power quality measurements |
| Power Supply | AC power adapter with battery backup capability |
Fluke 1775 Options:
- 1775 - FLUKE1775 - Fluke 1775 Power Quality Analyzer (standard, includes i17XX-FLEX1500 24" current probes, WiFi/BLE module, magnet probes, hanger kit, and soft case)
- 1775 - FLUKE1775/BASIC - Fluke 1775 Power Quality Analyzer Basic (does not include current probes or WiFi/BLE adapter)
| Model | 1775 |
|---|

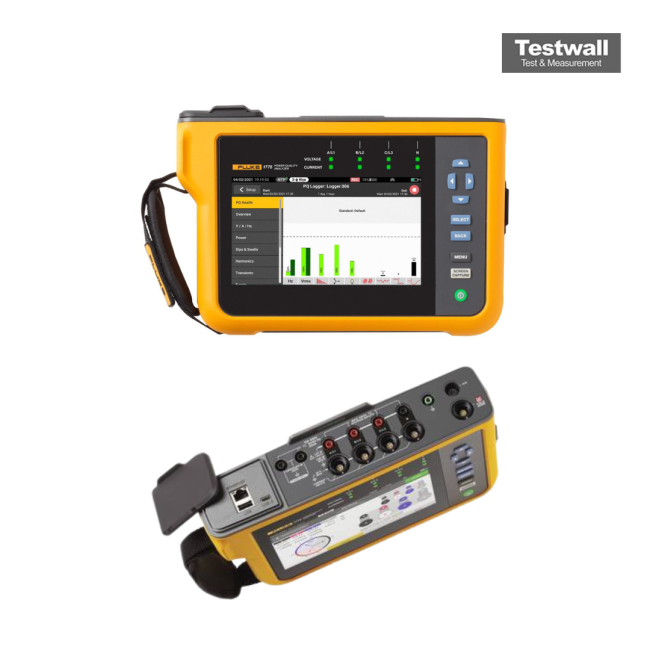

FLUKE 1775 Three-Phase Power Quality Analyzer
With the Fluke 1775 you'll never miss a critical power quality event €”from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and power measurements that enable you to characterize your electrical system. The Fluke 1775 offers a unique automatic measurement capture system that helps ensure you're collecting the right data every time, while still giving you the flexibility to select and adjust specific parameters as needed. Logged data is instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software which comes standard.
The Fluke 1775 is a 2-in-1 device that combines the troubleshooting functionality of a power quality meter with the robust analysis and logging capabilities of a standalone power quality analyzer in a single, easy-to-use, handheld device. The PQ Meter function gives you immediate access to live on screen data in the field so you can quickly identify potential problems while troubleshooting. The Fluke 1775 Power Quality Analyzer has 1MHz sampling capability to capture the fastest transients in high detail so you have the data you need to stop them in their tracks.
Specifications for the FLUKE 1775 Three-Phase Power Quality Analyzer Include:
| Max Input Voltage | 1000 V rms / 1000 V dc (1700 Vpk) |
| Resolution | 24-bit synchronous sampling |
| Bandwidth | DC to 30kHz |
| Sampling Frequency | 80 kS/s at 50/60 Hz |
