Fluke 45
| Attribute | Value |
|---|---|
| DC Voltage Range | 100 mV to 1000 V |
| AC Voltage Range | 100 mV to 750 V |
| DC Current Range | 100 µA to 10 A |
| AC Current Range | 100 µA to 10 A |
| Resistance Range | 100 Ω to 10 MΩ |
| Frequency Range | 1 Hz to 1 MHz |
| Display | Dual display, 50,000 count |
| Basic DC Voltage Accuracy | 0.025% |
| Measurement Functions | DC/AC voltage, DC/AC current, resistance, frequency, continuity, diode test |
| Power Supply | Line power (AC adapter) or battery operation |
Fluke 45 Options:
- 45 - 01 - Factory-Installed Rechargeable Lead-Acid Battery
- 45 - 05 - Factory-Installed IEEE-488.2 Interface
- 45 - 15 - Factory-Installed Battery and IEEE-488.2 Interface
- 45 - 01K - Rechargeable Lead-Acid Battery Kit (Field/Customer Installable)
- 45 - 05K - IEEE-488.2 Interface Kit (Field/Customer Installable)
| Model | 45 |
|---|

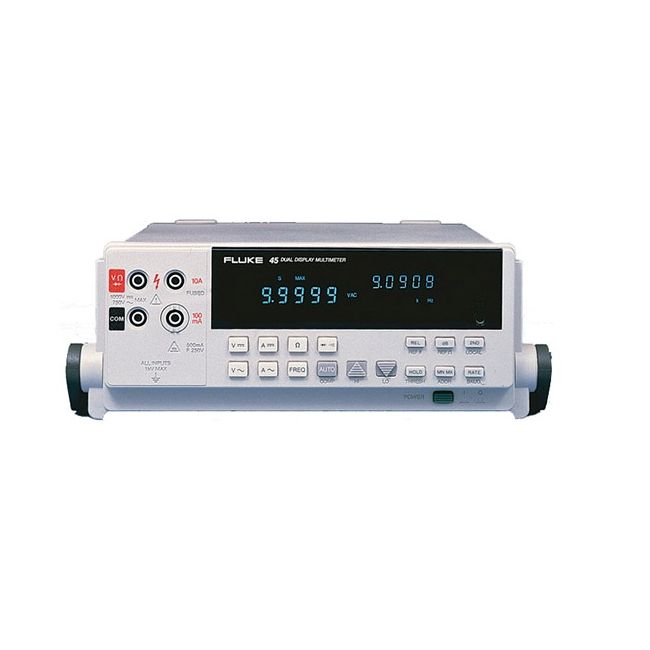

The Fluke 45 is a versatile bench multimeter equipped with dual vacuum fluorescent displays, allowing real-time measurement of AC/DC voltage, current, frequency, and resistance. It ensures True-RMS accuracy, 0.05% DC precision, and advanced features such as MIN/MAX capture, dB readings, relative and compare mode testing, plus RS‑232 output with optional IEEE‑488.2 connectivity.
Widely used in research, service, and maintenance applications, the Fluke 45 provides dependable performance with flexible measurement modes and rugged construction for demanding environments.
Testwall can supply the used Fluke 45, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Fluke 45.
