Keysight (Agilent) 34450A
| Attribute | Value |
|---|---|
| Number of Digits | 5.5 digits |
| DC Voltage Measurement Range | 100 mV to 1000 V |
| AC Voltage Measurement Range | 100 mV to 750 V |
| DC Current Measurement Range | 100 µA to 10 A |
| AC Current Measurement Range | 100 µA to 10 A |
| Resistance Measurement Range | 100 Ω to 100 MΩ |
| DC Voltage Basic Accuracy | 0.025% |
| Display | Dual display with backlit LCD |
| Connectivity Interface | USB Device (USBTMC) |
| Additional Measurement Functions | Continuity, Diode Test, Capacitance, Temperature, Frequency, Period |
Keysight (Agilent) 34450A Options:
- 34450A - 3445GPBU - GPIB connectivity upgrade
- 34450A - 3445MEMU - 50,000 memory points upgrade for data logging
| Model | 34450A |
|---|

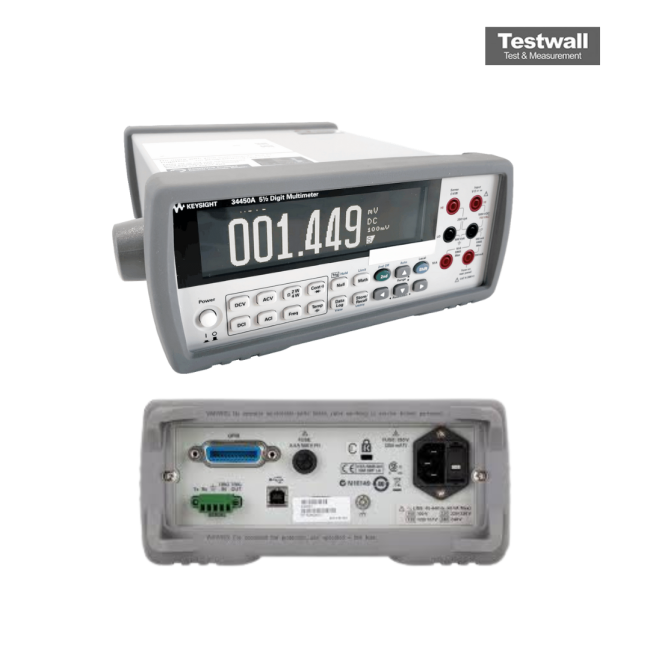

KEYSIGHT/AGILENT 34450A Digital Multimeter
The Keysight (Agilent) The 34450A digital multimeter is an intuitive and easy-to-use tool that provides a wide range of measurement functions and powerful features such as DC voltage, DC current, True RMS AC voltage and AC current, 2-wire and 4-wire resistance, frequency, diode test, continuity, capacitance and temperature. The 34450A offers a fast reading speed of up to 190 readings per second which can tremendously increase the manufacturing throughput. Keysight (Agilent) 34450A Benchtop Digital Multimeter simplifies day-to-day tasks with up to 50,000 memory points that can capture and log up to 14 hours of data.
The Keysight (Agilent) 34450A digital multimeter built-in with histogram and basic statistical functions, which allow simple data analysis within the unit itself. With its ultrabright OLED dual display, diffe measurements can be performed ensuring the right readings at first glance. Multiple connectivity options such as USB 2.0, Serial Interface (RS-232) and GPIB port provides greater flexibility to connect DMM to a PC for data access and retrieval for analysis. The 34450A comes with true RMS AC measurement capability and 0.015% DC voltage accuracy. BenchVue software for the PC makes Keysight (Agilent) 34450A digital multimeter simple to connect, control, capture and view Keysight's DMMs simultaneously with other Keysight bench instruments with no additional programming.
Specifications for the KEYSIGHT/AGILENT 34450A Digital Multimeter Include:
| Maximum Voltage Measurement | 750V (AC), 1000V (DC) |
| Maximum Cur Measurement | 10A (AC), 10A (DC) |
| Digits of Resolution | 5.5 digits |
| Basic 1-Yr DCV Accuracy | 0.015% |
