Fluke

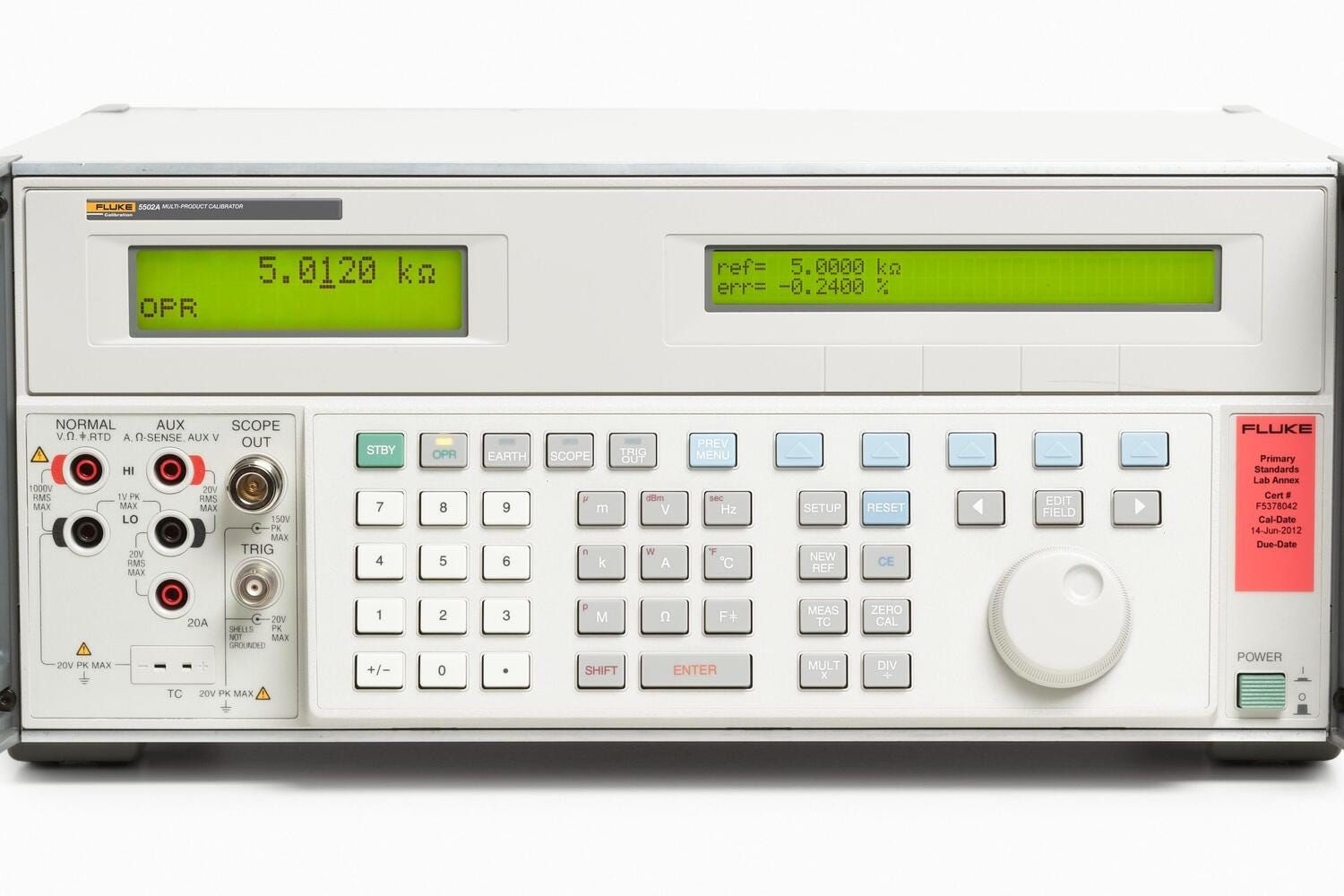

Fluke 5502A
Multi-Product Calibrator
0 to ±1020 V DC voltage
1 mV to 1020 V, 10 Hz to 500 kHz AC voltage
0 to ±20.5 A DC current
29 µA to 20.5 A, 10 Hz to 30 kHz AC current
Sine, square, triangle, truncated sine Waveforms
| Attribute | Value |
|---|---|
| DC voltage | 0 to ±1020 V |
| AC voltage | 1 mV to 1020 V, 10 Hz to 500 kHz |
| DC current | 0 to ±20.5 A |
| AC current | 29 µA to 20.5 A, 10 Hz to 30 kHz |
| Waveforms | Sine, square, triangle, truncated sine |
| Resistance | 0 Ω to 1100 MΩ |
| Capacitance | 220 pF to 110 mF |
| Thermocouple (source and measure) | B, C, E, J, K, L, N, R, S, T, U |
| RTD (source) | Pt385-100 Ω, Pt3926-100 Ω, Pt3916-100 Ω, Pt385-200 Ω, Pt385-500 Ω, Pt385-1000 Ω, PtNi385-120 Ω, Cu427-10 Ω |
| Frequency | 0.01 Hz to 2 MHz |
| Interfaces | RS-232, IEEE-488 (GPIB) |
| Warm-up time | Twice the time since last warmed up, maximum 30 minutes |
| Temperature | Operating 0 °C to 50 °C; calibration 15 °C to 35 °C; storage −20 °C to 70 °C |
| Line power | 100, 120, 220 or 240 V ±10 %, 47 Hz to 63 Hz |
| Power consumption | 600 VA |
| Dimensions (H × W × D) | 17.8 × 43.2 × 47.3 cm |
| Weight (without options) | 22 kg |
| Safety | IEC 61010-1 |
| Model | 5502A |
|---|
The Fluke 5502A Multi-Product Calibrator is a compact, rugged workload calibrator for handheld and bench instruments. It sources DC and AC voltage up to 1020 V, DC and AC current up to 20 A, resistance, capacitance and thermocouple/RTD temperature simulation, making it well suited to calibrating digital multimeters, clamp meters and process tools on site or in the lab.
