Keysight (Agilent) 11683A
| Attribute | Value |
|---|---|
| Function | Range Calibrator for Power Meters |
| Compatible Instruments | Keysight/Agilent 436A, 437B, 438A Power Meters |
| Frequency Range | 50 MHz |
| Output Power Level | 1 mW (0 dBm) |
| Output Connector | Type-N (Female) |
| Power Requirements | Powered directly from the power meter (no external power supply required) |
| Calibration Purpose | Provides a reference signal to calibrate power sensor range switching accuracy |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Dimensions | Compact handheld unit designed for bench-top use with compatible power meters |
| Model | 11683A |
|---|

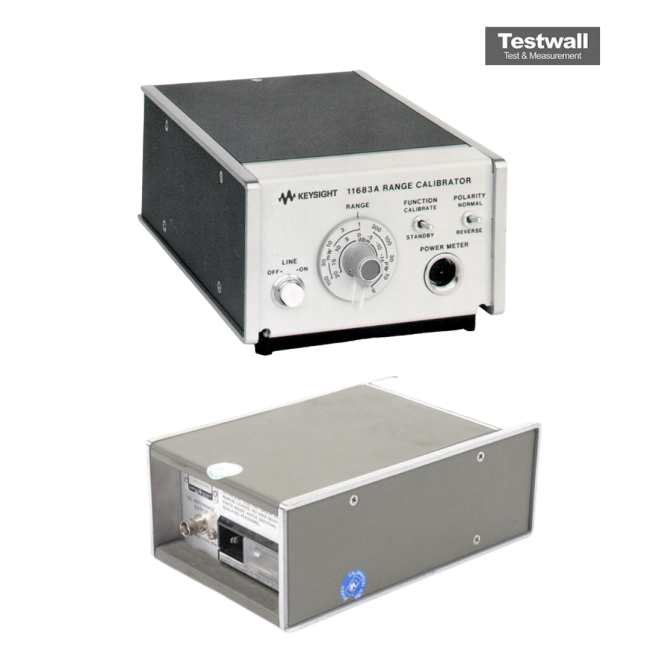

The Keysight (Agilent) 11683A CAL is a power meter range calibrator designed for compatibility with EPM, EPM-P, E1416A, and discontinued 70100A/43X series meters. It verifies full-scale readings and tracking on all ranges via direct cable connection. Calibration output levels include 3, 10, 30, 100, 300µW, and 1, 3, 10, 30, 100mW, with a calibration uncertainty of ±0.25%. Operating at 100–240VAC (±5%/-10%) and 48–440Hz, it consumes under 10VA and measures 133mm x 89mm x 216mm.
Ideal for labs and service centers, it ensures precise meter calibration and easy operation using the CAL ADJ control. Perfect for verifying a wide range of power levels efficiently.
Testwall can supply the used Keysight (Agilent) 11683A CAL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 11683A CAL.
