Fluke 5550A
| Attribute | Value |
|---|---|
| AC Voltage Range | 0 to 1100 V RMS |
| DC Voltage Range | 0 to 1100 V |
| AC Current Range | 0 to 20 A RMS |
| DC Current Range | 0 to 20 A |
| Resistance Range | 0 to 100 MΩ |
| Frequency Range | 10 Hz to 500 kHz |
| Basic DC Voltage Accuracy | ±(8 ppm of output + 2 ppm of range) |
| Output Power | Up to 20 VA |
| Calibration Standard Compliance | IEEE 488.2, SCPI compatible; meets IEC/EN 61010-1 safety requirements |
| Operating Temperature | 18 °C to 28 °C (64 °F to 82 °F) |
| Model | 5550A |
|---|

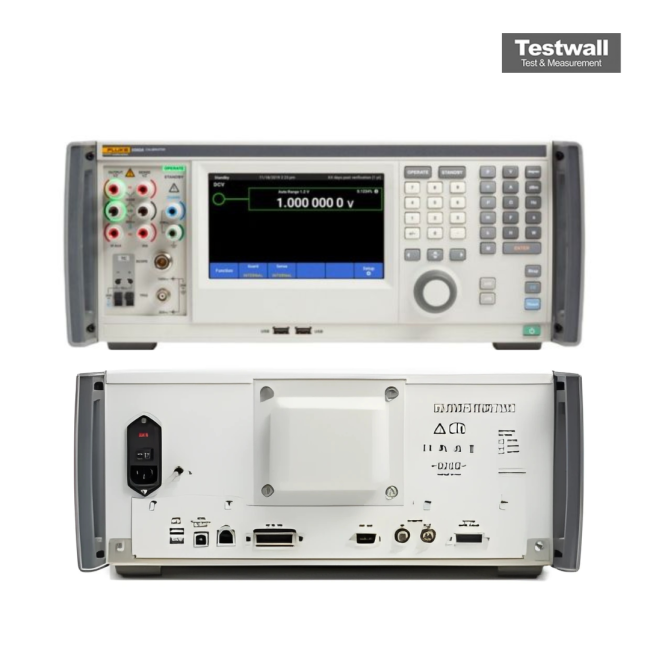

FLUKE 5550A Performance Multi-Product Calibrator
The patented ultra-linear analog-to-digital design enables the Fluke 5550A to achieve performance specifications that were not possible before, allowing you to calibrate a more accurate and demanding workload. Calibrate multimeters significantly faster with improved settling time, this means less wait time and more time actually performing the tests. The Fluke 5550A enhances the 5522A Multi-Product Calibrator with new calibration ranges optimized to better match your existing digital multimeter workload in a modern, ruggedized instrument with an intuitive graphical interface.
The Fluke 5550A Performance Multi-Product Calibrator is enhanced with new calibration ranges optimized to better match your existing digital multimeter workload in a modern, ruggedized instrument with an intuitive graphical interface. The Fluke 5550A works with MET/CAL, including hundreds of automated calibration procedures to consistently and dramatically improve throughput. MET/CAL v10.6 and later includes a Function Select Code (FSC) that enables you to add the 5550A seamlessly to your existing calibration operations.
Specifications for the FLUKE 5550A Performance Multi-Product Calibrator Include:
| Direct Volts | 0 V to ± 1020 V |
| Direct Current | 0 to ± 30.2 A |
| Alternating Volts | 1 mV to 1020 V, 3 Hz to 500 kHz |
| Alternating Current | 10 μA to 30.2 A, 3 Hz to 30 kHz |
