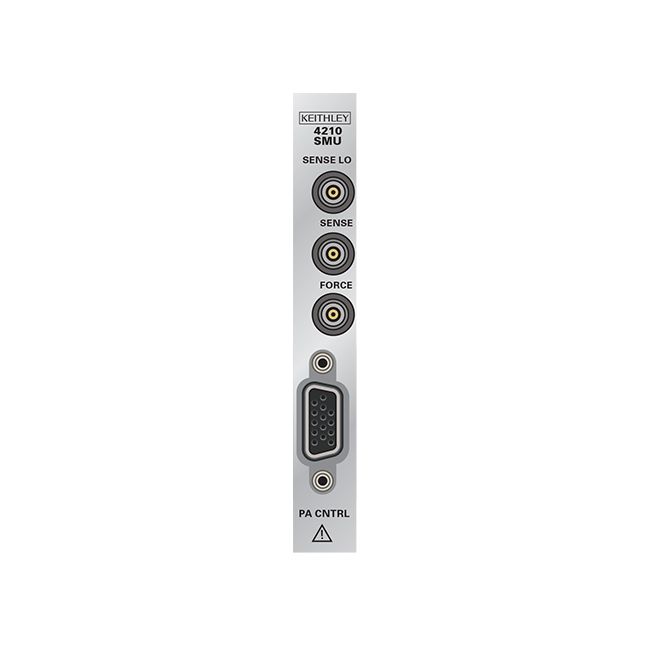

Keithley 4210-SMU
| Attribute | Value |
|---|---|
| Voltage Source Range | ±210 V |
| Current Source Range | ±1 A |
| Minimum Current Measure Resolution | 100 fA |
| Voltage Measurement Resolution | 1 µV |
| Maximum Power Output | 20 W |
| Number of Channels | 1 (single-channel SMU module) |
| Interface/Compatibility | Designed for use with Keithley 4200A-SCS Parameter Analyzer |
| Measurement Functions | Voltage sourcing, current sourcing, voltage measurement, current measurement |
| Guard Output | Driven guard for low-current measurements and cable capacitance reduction |
| Typical Current Measure Accuracy | 0.1% of reading + offset |
Keithley 4210-SMU Options:
- 4210-SMU - 4200-PA - Remote PreAmp module (optional, extends low current measurement capabilities to 0.1fA resolution)
- 4210-SMU - 4210-CVU - Multi-Frequency C-V Module (optional capacitance-voltage instrument, 1kHz to 10MHz)
- 4210-SMU - 4225-PMU - Ultra-Fast I-V Module (dual-channel, pulse widths from 60ns to DC, up to 200 MS/s)
- 4210-SMU - 4225-RPM - Remote Amplifier/Switch (optional accessory for 4225-PMU, extends lower current measurement ranges)
- 4210-SMU - 4220-PGU - Dual-Channel Pulse Generator (voltage pulses up to 40V, down to 20ns pulse width)
- 4210-SMU - 4200-SCP2 - 1.25GS Dual-Channel Oscilloscope Card (8-bit resolution, up to 2.5 GS/s sample rate)
- 4210-SMU - 4200-SCP2HR - 200MS Dual-Channel Oscilloscope Card (16-bit resolution, up to 400 MS/s sample rate)
- 4210-SMU - 4200-SCP2-ACC - Optional Scope Probe (70MHz bandwidth for SCP2, 1m length, BNC connector)
- 4210-SMU - 4200-BTI-A - Ultra-Fast NBTI/PBTI Option package (includes 4225-PMU, two 4225-RPMs, ACS software, and cabling)
- 4210-SMU - 4200-COMPILER - Optional compiler required for KULT custom algorithm integration
- 4210-SMU - 4200-CVU-Power - C-V Power Package (±200V DC bias, 100kHz to 10MHz, 100mA or 300mA maximum DC current)
| Model | 4210-SMU |
|---|
The Keithley 4210-SMU High Power Source Measure Unit integrates seamlessly into the 4200-SCS platform, offering exceptional precision with 1A to 100fA current range and 200V to 1µV voltage range, delivering up to 20W power. It includes voltage error correction when using a ground unit and supports four-quadrant source/sink operation for versatile testing capabilities.
Ideal for advanced semiconductor characterization, the 4210-SMU enables accurate source and measurement of current and voltage for a wide range of materials and device types.
Testwall can supply the used Keithley 4210-SMU, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 4210-SMU.
