Fluke 5560A
| Attribute | Value |
|---|---|
| Output Current Range | Up to 30 A |
| Output Voltage Range | Up to 1020 V |
| Frequency Range | 45 Hz to 5 kHz |
| DC Voltage Accuracy | ±24 ppm |
| AC Voltage Accuracy | ±100 ppm (at 1 kHz) |
| Resistance Output Range | 0 Ω to 100 MΩ |
| Power Output | Up to 1000 VA |
| Operating Temperature | 18 °C to 28 °C |
| Interface/Connectivity | IEEE-488 (GPIB), USB, Ethernet (LAN) |
| Compliance Standards | IEC 61010-1, CE Marked, CSA Certified |
| Model | 5560A |
|---|

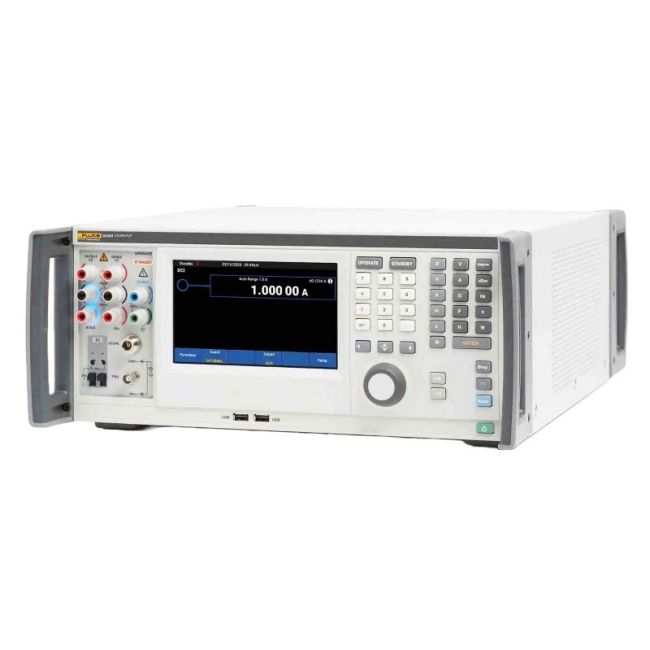

FLUKE 5560A Performance Multi-Product Calibrator
The patented ultra-linear analog-to-digital design enables the Fluke 5560A Performance Multi-Product Calibrator to achieve performance specifications that were not possible before, allowing you to calibrate a more accurate and demanding workload. Calibrate multimeters significantly faster with improved settling time, this means less wait time and more time actually performing the tests. The Fluke 5560A calibrates the most popular benchtop 6.5-digit multimeters with better than 4:1 test uncertainty ratio (TUR), and clamp meters to 1500 A.
The Fluke 5560A Performance Multi-Product Calibrator calibrates the most popular benchtop 6.5-digit multimeters with better than 4:1 test uncertainty ratio (TUR), and clamp meters to 1500 A. The Fluke 5560A works with MET/CAL, including hundreds of automated calibration procedures to consistently and dramatically improve throughput. MET/CAL v10.6 and later includes a Function Select Code (FSC) that enables you to add the 5560A seamlessly to your existing calibration operations.
Specifications for the FLUKE 5560A Performance Multi-Product Calibrator Include:
| Direct Volts | 0 V to ± 1020 V |
| Direct Current | 0 to ± 30.2 A |
| Alternating Volts | 1 mV to 1020 V, 3 Hz to 500 kHz |
| Alternating Current | 10 μA to 30.2 A, 3 Hz to 30 kHz |
