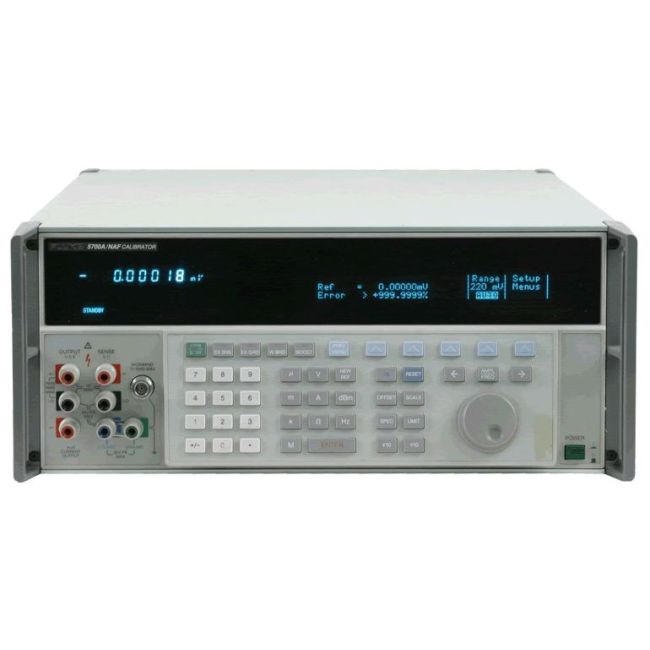

Fluke 5700A
| Attribute | Value |
|---|---|
| DC Voltage Accuracy | ±1.5 ppm of output |
| DC Voltage Range | 0 to ±1100 V |
| AC Voltage Range | 1 mV to 1100 V (10 Hz to 500 kHz) |
| DC Current Range | 0 to ±11 A |
| AC Current Range | 1 mA to 11 A (10 Hz to 10 kHz) |
| Resistance Range | 0 Ω to 110 MΩ |
| Frequency Range | 10 Hz to 500 kHz |
| Operating Temperature | 18 °C to 28 °C (64 °F to 82 °F) |
| Interface | IEEE-488 (GPIB), RS-232 |
| Power Requirements | 100 V, 120 V, 220 V, or 240 V AC, 50/60 Hz, 375 VA maximum |
Fluke 5700A Options:
- 5700A - 5700A-03 - Wideband AC Voltage (compatible with both the 5700A and the 5720A)
- 5700A - 5700A/EP - Upgrade your 5700A Series I Calibrator to 5720A Specifications
| Model | 5700A |
|---|
The Fluke 5700A is a high-accuracy multifunction calibrator designed for demanding metrology, providing precise DC/AC voltage, current, and resistance outputs. With rapid 30-minute stabilization and ppm-level uncertainties, it ensures unmatched performance in calibration environments.
Supporting IEEE‑488 and RS‑232 interfaces, the Fluke 5700A allows seamless automation and rack mounting. Its broad output range and stability make it indispensable for ISO-class labs and service centers.
Testwall can supply the used Fluke 5700A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Fluke 5700A.
