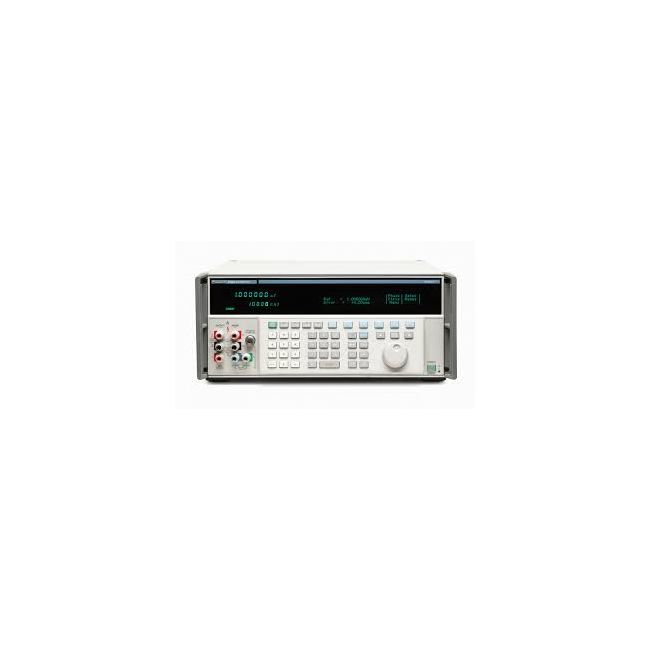

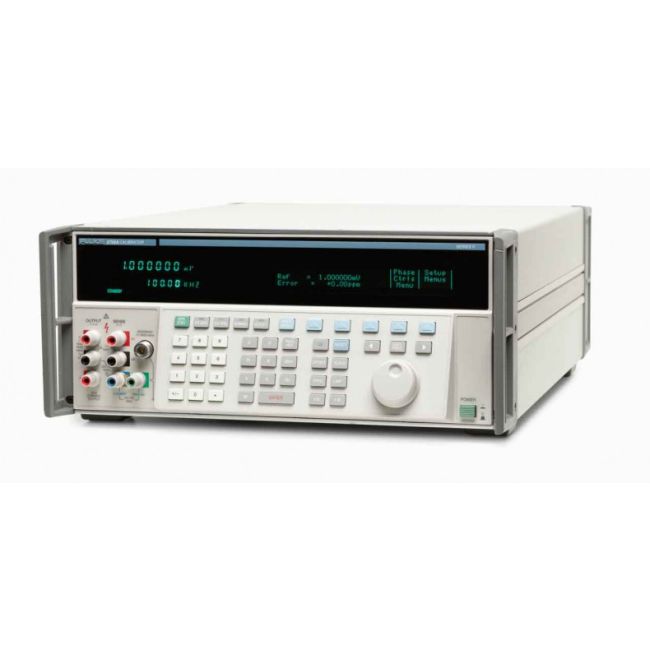

Fluke 5720A
| Attribute | Value |
|---|---|
| DC voltage range | 0 to ±1100 V |
| DC voltage, best 1-year accuracy (95 %) | 3.5 ppm + 2.5 µV |
| AC voltage range | 220 mV to 1100 V, 10 Hz to 1 MHz |
| AC voltage, best 1-year accuracy (95 %) | 45 ppm + 8 µV |
| DC current range | 0 to ±2.2 A; ±11 A with 5725A |
| DC current, best 1-year accuracy (95 %) | 35 ppm + 7 nA |
| AC current range | 9 µA to 2.2 A, 10 Hz to 10 kHz; 11 A with 5725A |
| AC current, best 1-year accuracy (95 %) | 120 ppm + 8 nA |
| Resistance | 0 to 100 MΩ, 18 values in ×1 and ×1.9 decades |
| Resistance, best 1-year accuracy (95 %) | 8.5 ppm |
| Wideband AC voltage option | 300 µV to 3.5 V, 10 Hz to 30 MHz (30 MHz option) |
| Wideband, best 1-year accuracy (99 %) | 0.4 % + 500 µV |
| Interfaces | IEEE-488 (GPIB), RS-232, phase lock in and out |
| Amplifier support | 5725A |
| Options | 30 MHz option, rear output option |
Fluke 5720A Calibrator Options:
- 5720A - 5700A-03 - Wideband AC Voltage (compatible with both the 5700A and the 5720A)
The Fluke 5720A is a high-precision multi-function calibrator covering DC/AC voltage, DC/AC current, resistance, capacitance, and ratio in a single bench unit. One of the most widely deployed precision calibrators in European ISO 17025 and ISO 9001 accredited laboratories.
Key Specifications
- DC Voltage: 0 to ±1020 V
- AC Voltage: 0 to 1020 V, 10 Hz – 30 MHz
- DC Current: 0 to ±11.0 A
- AC Current: 0.01 µA to 11 A, 10 Hz – 10 kHz
- Resistance: Short circuit to 330 MΩ
- Capacitance: 330 pF to 1100 µF
- Ratio: 0 to 1100 V:1 V (external divider)
Applications
Used for calibration of digital and analogue multimeters, oscilloscopes, power analysers, wattmeters, data loggers, and signal generators. Widely deployed in aerospace, defence, automotive, pharmaceutical, and electronics manufacturing labs. Compatible with the Fluke 5725A Amplifier for extended current output; emulates the Fluke 5100B and 5200A. Often compared with the Fluke 5500A and Fluke 5522A.
Buy Used Fluke 5720A from Testwall
Testwall is a European specialist in used and refurbished test & measurement equipment. This used Fluke 5720A is fully tested before despatch, backed by up to 12 months warranty, with EU- and UK-wide delivery. Calibration and repair of the Fluke 5720A are available as a service through our in-house ISO 9001:2015 accredited laboratory — contact us for a quote.
