Fluke 718-30G
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 30 psi (0 to 2 bar) |
| Pressure Type | Gauge |
| Accuracy | ±0.2% of full scale |
| Display | Dual display, 4-digit LCD |
| Pressure Units | psi, bar, kPa, inH2O, cmH2O, inHg, mmHg, kg/cm² |
| Power Supply | 9V alkaline battery (6F22) |
| Battery Life | Approximately 150 hours of continuous use |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Pressure Port Connection | 1/4 NPT male fitting |
| Safety Rating | CE marked, IP40 protection rating |
| Model | 718-30G |
|---|

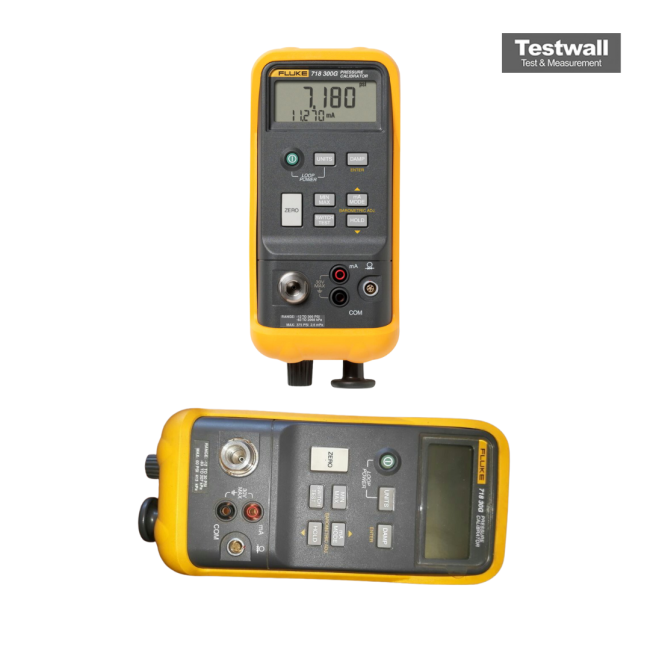

Fluke 718-30G Pressure Calibrator
The Fluke 718-30G Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). Fluke 718-30G is having a unique easy-to-clean integrated pump which helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.
Fluke 718-30G Pressure Calibrator features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. With an easy-to-use error % calculation you can make pass/fail decisions quickly. Meaning you can make decisions in the field without having to analyze the results later. The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation. Fluke 718-30G features the integrated pressure switch test function, and best-in-class mA accuracy (0.015%) which provide a high level of measurement confidence and even broader workload coverage.
Specifications for the Fluke 718-30G Pressure Calibrator Include:
| Range | -12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa) |
| Resolution | 0.001 psi, 0.1 mbar |
| Over pressure | 2x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
