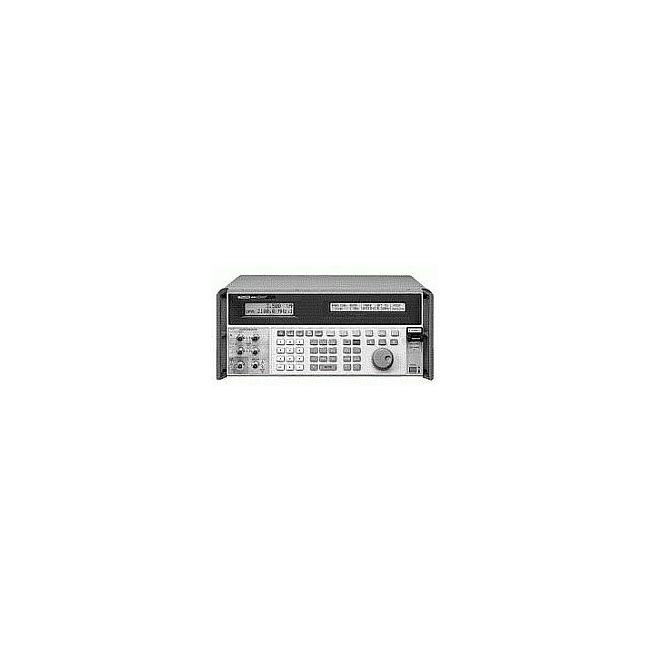

Fluke 5800A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 50 MHz |
| Amplitude Range | 1 mV to 20 V peak-to-peak into 50 Ω |
| Waveform Types | Sine, square, triangle, ramp, pulse, and arbitrary waveforms |
| Amplitude Accuracy | ±1% of setting ±2 mV |
| Output Impedance | 50 Ω ±1% |
| Frequency Accuracy | ±5 ppm from 18 °C to 28 °C |
| Harmonic Distortion | -55 dBc at 1 kHz, -40 dBc at 10 MHz |
| DC Offset Range | ±10 V into 50 Ω (±20 V into open circuit) |
| Operating Temperature | 0 °C to 50 °C |
| Interface/Connectivity | IEEE-488 (GPIB) and RS-232 interfaces standard |
Fluke 5800A Options:
- 5800A - 5800A-5 - Five Channel Output Option
- 5800A - 5800A-GHz - Extended Frequency Bandwidth Option
| Model | 5800A |
|---|
The Fluke 5800A is a precision instrument designed for validating analog and digital oscilloscopes with high waveform accuracy. It features automatic meter error computation, local front‑panel control, and remote operation via RS‑232 or IEEE‑488 interfaces, ensuring reliable amplitude, timing, and waveform fidelity verification.
Ideal for technicians requiring detailed oscilloscope performance checks, the 5800A provides accurate measurements for both analog and digital scopes with simple operation and robust functionality.
