Fluke 7102
| Attribute | Value |
|---|---|
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Temperature Stability | ±0.02°C |
| Temperature Uniformity | ±0.01°C |
| Heating/Cooling Time | Heating to 150°C in approximately 45 minutes; Cooling to -20°C in approximately 60 minutes |
| Bath Fluid Capacity | 4.5 liters |
| Display | Dual digital display showing set point and actual temperature |
| Temperature Resolution | 0.01°C |
| Power Requirements | 115V/230V AC, 50/60 Hz, 1000W |
| Immersion Depth | 152 mm (6 in) |
| Dimensions (W x D x H) | 222 mm x 356 mm x 394 mm (8.75 in x 14 in x 15.5 in) |
| Model | 7102 |
|---|

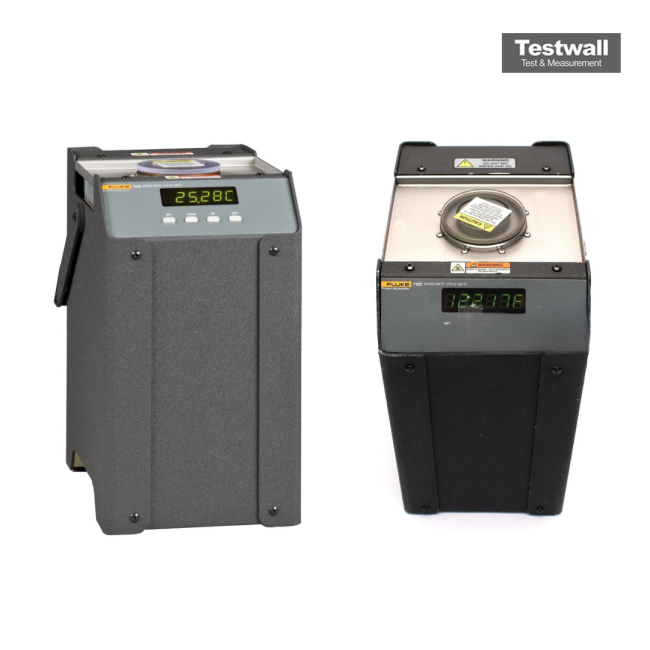

Fluke 7102 Micro Calibration Bath -5C to 125C
Fluke 7102 Micro Calibration Bath with extreme stability, can be used anywhere for any type of sensor. It's lighter and smaller than most dry-wells, has a spill-proof lid, and is easier to carry than your lunch box. You can take it where you need to go without carts or excessive effort. It can even be transported with the fluid in them. Fluke 7102 Micro Calibration Bath has RS-232 ports and can be used with MET/TEMP II software. This device also includes contacts to calibrate a thermal switch, eight set-point memory storage, ramp-rate adjust, and over-temperature safety cutout.
Fluke 7102 Micro Calibration Bath is stable to ±0.03 °C or better, depending on the fluid you use. Uniformity is at ±0.02 °C or better for low uncertainties using a reference thermometer. Display accuracy has been improved to ±0.25 °C for quick calibrations without a reference thermometer. It can calibrate any type of sensor including short, square, or odd-shaped sensors. The problems of fit and immersion are virtually eliminated by using a fluid medium rather than a dry-block calibrator. Fluke 7102 Micro Calibration Bath is perfect for liquid-in-glass and bimetal thermometers.
Specifications for the Fluke 7102 Micro Calibration Bath -5C to 125C Include:
| Range | €“5 °C to 125 °C (23 °F to 257 °F) |
| Accuracy | ±0.25 °C |
| Stability | ±0.015 °C at €“5 °C (oil 5010), ±0.03 °C at 121 °C (oil 5010) |
| Resolution | 0.01 °C/ °F |
