Tektronix

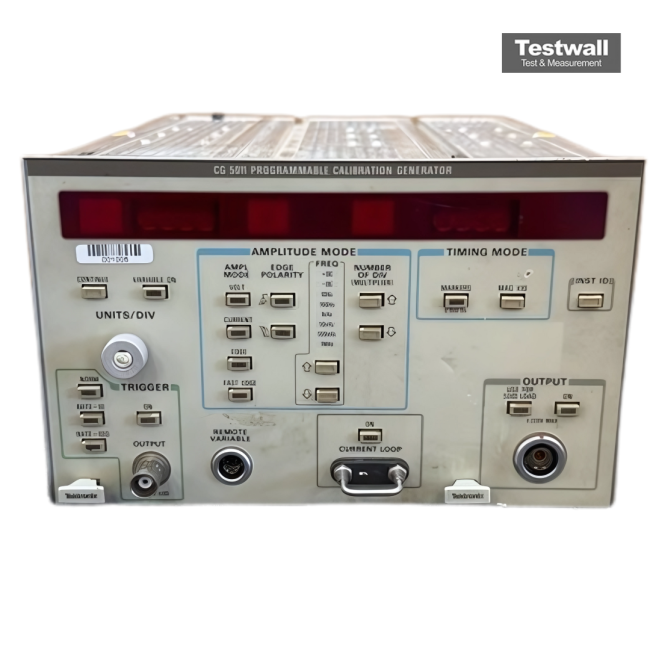

Tektronix CG5011
Programmable Calibration Generator
1 kHz Output Frequency
500 mV RMS (into 50Ω) Output Amplitude
Sine Wave Waveform Type
50Ω Output Impedance
±1% Accuracy
| Attribute | Value |
|---|---|
| Output Frequency | 1 kHz |
| Output Amplitude | 500 mV RMS (into 50Ω) |
| Waveform Type | Sine Wave |
| Output Impedance | 50Ω |
| Accuracy | ±1% |
| Power Supply | Powered via oscilloscope probe compensation terminal |
| Connector Type | BNC |
| Compatibility | Tektronix oscilloscopes with probe compensation output |
| Operating Temperature | 0°C to 50°C |
| Dimensions | Compact handheld calibration generator form factor |
Tektronix CG5011 Options:
- CG5011 - Opt. 01 - Adds High Stability Time Base
- CG5011 - Opt. 02 - Deletes Pulse Head
| Model | CG5011 |
|---|
The Tektronix CG5011 is a sophisticated calibration and pulse generator offering programmable delay and amplitude control. It features high accuracy with timing from microseconds to nanoseconds, and supports external clock synchronization for precise operations.
Ideal for time-domain and instrumentation tasks, the CG5011 ensures consistent waveform integrity and ease of use with its intuitive front panel controls.
Testwall can supply the used Tektronix CG5011, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CG5011.
