Fluke 718-100G
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 100 psi (0 to 6.9 bar) |
| Pressure Type | Gauge |
| Accuracy | ±0.05% of full scale |
| Display | Dual display, 5-digit LCD |
| Pressure Units | psi, bar, mbar, kPa, MPa, inH2O, inHg, mmHg, kg/cm² |
| Battery Life | Approximately 300 hours with alkaline batteries |
| Battery Type | 9V alkaline battery (1 x NEDA 1604 / IEC 6LR61) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Wetted Parts Material | 316L stainless steel |
| Model | 718-100G |
|---|

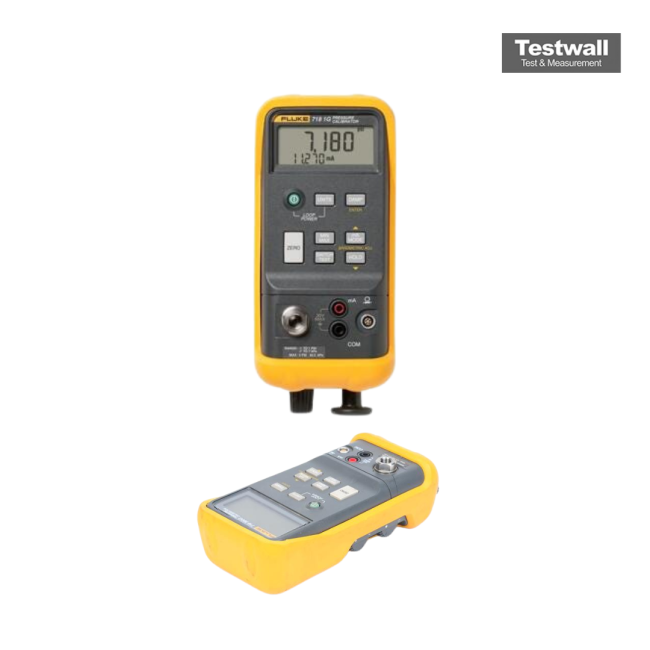

Fluke 718-100G Pressure Calibrator
The Fluke 718-100G Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). Fluke 718-100G is having a unique easy-to-clean integrated pump which helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.
Fluke 718-100G Pressure Calibrator features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. With an easy-to-use error % calculation you can make pass/fail decisions quickly. Meaning you can make decisions in the field without having to analyze the results later. The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation. Fluke 718-100G features the integrated pressure switch test function, and best-in-class mA accuracy (0.015%) which provide a high level of measurement confidence and even broader workload coverage.
Specifications for the Fluke 718-100G Pressure Calibrator Include:
| Range | -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) |
| Resolution | 0.01 psi, 0.1 mbar, 0.01 kPa |
| Over pressure | 2x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
