Stanford Research FS740
| Attribute | Value |
|---|---|
| Frequency Range | DC to 1.5 GHz |
| GPS Disciplined Oscillator | Internal GPS receiver with 12-channel all-in-view tracking |
| Frequency Accuracy | ±1 × 10⁻¹² (GPS disciplined, 24-hour average) |
| Reference Outputs | 10 MHz, 5 MHz, 1 MHz sine wave outputs; 1 pps TTL output |
| Phase Noise (10 MHz, 1 Hz offset) | −110 dBc/Hz |
| Time Interval Resolution | 50 ps single-shot resolution |
| Input Channels | 2 independent measurement input channels |
| Interface / Connectivity | GPIB, RS-232, USB, and Ethernet interfaces standard |
| Internal Oscillator Option | OCXO or optional rubidium oscillator available |
| Power Requirements | 100–240 VAC, 50/60 Hz, 60 W maximum |
| Model | FS740 |
|---|

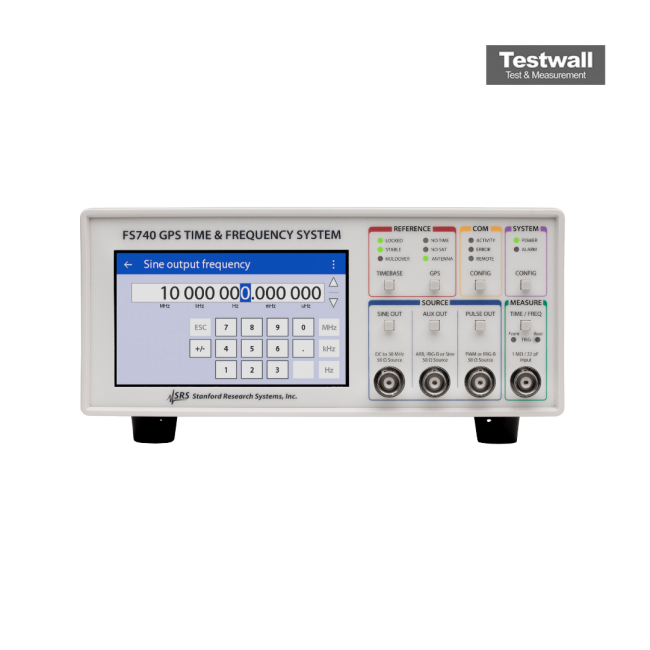

The Stanford Research (SRS) FS740 GPS/GNSS Time And Frequency System is a precision GPS/GNSS-based time and frequency system offering exceptional accuracy with 1 PPS, 10 MHz outputs, and low phase noise performance. It supports multiple GNSS constellations for enhanced reliability, advanced time transfer features, and versatile frequency outputs, ideal for laboratory, telecommunications, and navigation synchronization tasks.
Featuring intuitive controls, flexible I/O configurations, and robust monitoring capabilities, the Stanford Research (SRS) FS740 GPS/GNSS Time And Frequency System ensures stable, traceable timing for research, industrial, and geophysical applications.
Testwall can supply the used Stanford Research (SRS) FS740 GPS/GNSS Time And Frequency System, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Stanford Research (SRS) FS740 GPS/GNSS Time And Frequency System.
