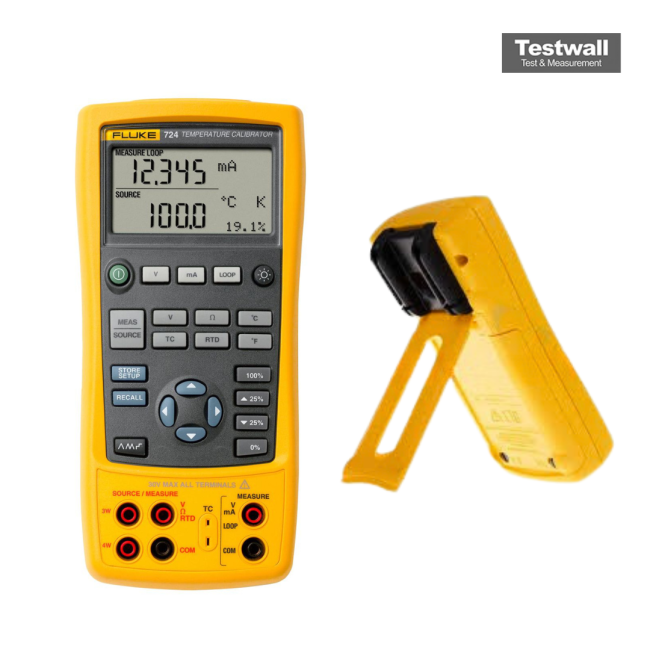

Fluke 724
| Attribute | Value |
|---|---|
| Temperature Range (RTD) | -200°C to 850°C (-328°F to 1562°F) |
| Temperature Range (Thermocouple) | -250°C to 1372°C (-418°F to 2502°F) |
| Pressure Measurement Range | Up to 10,000 psi (690 bar) depending on module used |
| Accuracy (Temperature) | ±0.05°C (±0.09°F) |
| Display | Dual display, 4.5-digit LCD |
| Power Supply | 6 AA alkaline batteries or AC adapter |
| Battery Life | Approximately 150 hours of continuous use |
| Supported Thermocouple Types | J, K, T, E, N, R, S, B |
| Supported RTD Types | PT100, PT200, PT500, PT1000, Cu10, Cu50, Ni120 |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Model | 724 |
|---|
FLIR GF77 Handheld Temperature Calibrator
The Fluke 724 Handheld Temperature Calibrator can measure and source 12 thermocouple types and seven RTD types, plus volts and ohms. The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power. The Fluke 724 is also able to measures mA while simultaneously supplying loop power to the transmitter.
The Fluke 724 can be used to test and calibrate almost any temperature instrument minimizing the amount of to tools to expertly test all the temperature sensors and transmitters. The Fluke 724 also uses dual-line measure/source display which lets you source temperature and view loop cur at the same time. With the Fluke 724 you are able to perform fast linearity tests using the 25% and 100% step functions, with the auto step or auto ramp you are able to perform remote tests.
Specifications for the FLIR GF77 Handheld Temperature Calibrator Include:
| Max Voltage | 30 V |
| Accuracy | 0.02 % + 2 counts (upper display) |
| Max Current | 24 mA |
| Step Functions (steps) | 25% of range, 100% of range |
