Fluke 725
| Attribute | Value |
|---|---|
| Voltage Measurement Range | 0 to 30 V DC, 0 to 24 V AC |
| Current Measurement Range | 0 to 24 mA |
| Temperature Measurement Range | -200°C to 1372°C (-328°F to 2501°F) |
| Pressure Measurement Range | Compatible with optional pressure modules up to 10,000 psi |
| Frequency Measurement Range | 0 to 1 kHz |
| Resistance Measurement Range | 0 to 3200 Ω |
| Output Signal Simulation | Simulates voltage, current, thermocouple, RTD, frequency, and pressure signals |
| Thermocouple Types Supported | J, K, T, E, N, R, S, B |
| RTD Types Supported | PT100, PT385, PT3916, Cu10, Ni120 |
| Power Supply | 9 V alkaline battery or AC adapter |
| Model | 725 |
|---|

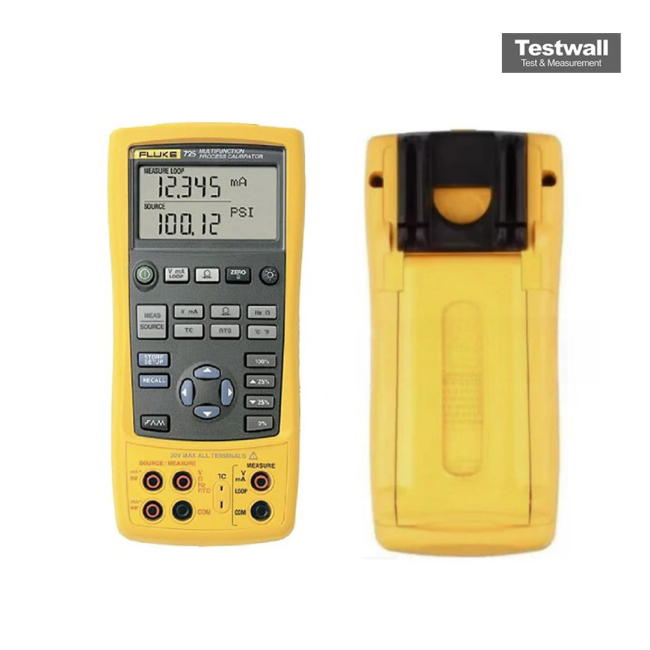

FLUKE 725 Multifunction Calibrator
The Fluke 725 Multifunction Process Calibrator is a powerful yet easy-to-use field calibrator. Use the measure and source functions to test and calibrate almost any process parameter. The Fluke 725 simple controls, without menus, make operation easy and the backlit display provides better visibility in poor light. It features a small, streamline shape and a rugged, reliable design that make it ideal for standing up to harsh field conditions.
Power transmitters during test using the loop supply with simultaneous mA measurement so you can test a transmitter out of circuit and better isolate problems. The Fluke 725 can also test a variety of fast pulsed RTD transmitters and PLCs (Programmable logic controllers), with pulses as short as 10 ms. Source mA with simultaneous pressure measurement to conduct valve and I/P (Input current/Output pressure) tests in a single device. You can also test flow meters with frequency and CPM (counts per minute) functions and perform fast linearity tests with auto-step and auto-ramp features so you can quickly verify the mA signal at diffe output levels.
Specifications for the FLUKE 725 Multifunction Calibrator Include:
| Voltage | 0-100 mV |
| Current | 0-24 mA |
| Frequency | 1-100 Hz |
| Resistance | 15Ω to 3200Ω |
