Fluke 7380-16
| Attribute | Value |
|---|---|
| Number of Channels | 16 |
| Compatible System | Fluke 7380 Series Multiplexer System |
| Switch Type | Multiplexer Module |
| Input Voltage Range | 300 V maximum |
| Current Rating | 1 A maximum per channel |
| Frequency Range | DC to 1 MHz |
| Contact Resistance | Less than 1 Ohm |
| Insulation Resistance | Greater than 10^9 Ohm |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Connector Type | Screw Terminal |
Fluke 7380-16 Options:
- 7380-16 - 7380-USR - Bundle, Automated 7380 System, US
- 7380-16 - 7380-USRT - Bundle, Automated 7380 System, US
- 7380-16 - 7380-UKR - Bundle, Automated 7380 System, UK
- 7380-16 - 7380-UKRT - Bundle, Automated 7380 System, UK
- 7380-16 - 7380-CHR - Bundle, Automated 7380 System, China
- 7380-16 - 7380-CHRT - Bundle, Automated 7380 System, China
- 7380-16 - 7380-OTR - Bundle, Automated 7380 System, other non US
- 7380-16 - 7380-OTRT - Bundle, Automated 7380 System, other non US
- 7380-16 - 5019 - Fluid, Halocarbon, 4 liters
- 7380-16 - 5022 - Fluid, Dynalene HF/LO, 4 liters
- 7380-16 - 5023 - Fluid, HFE Cold Bath, 4 liters
| Model | 7380-16 |
|---|

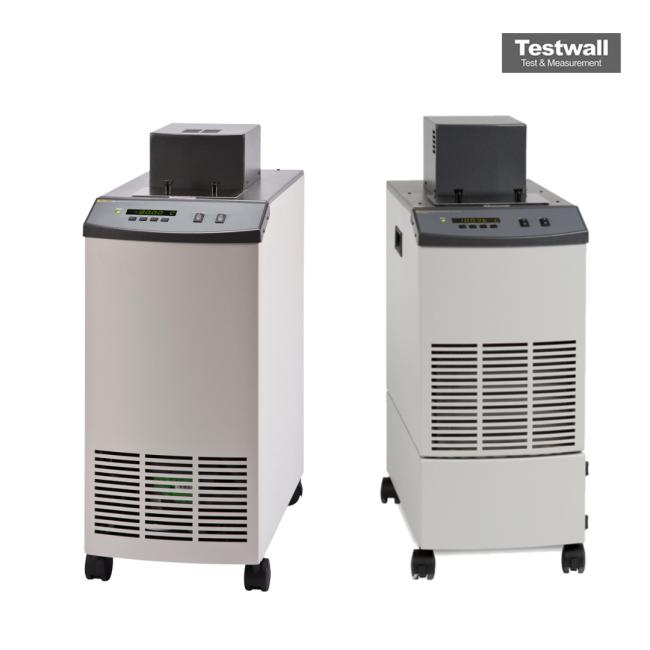

Fluke 7380-16 Compact Temperature Calibration Bath
The Fluke 7380-16 Compact Temperature Calibration Bath is a high performance calibration bath that offers exceptional accuracy, stability, and convenience. It is versatile and can be used for a wide range of temperature calibration applictions for laboratories, research facilities, and industries that require precise temperature measurements. It reaches and maintains ultracold temperatures quickly, saving testing time. It's cooling time from room temperature to €“80 °C is only 90 minutes and stabilization time is just 6 minutes.
Fluke 7380-16 Compact Temperature Calibration Bath is a true metrology bath with stability better than ±0.03 °C. With uniformity to ±0.008 °C, comparison calibration of temperature devices can be performed with high precision. Fluke 7380-16 is easy to use with intuitive controls. Windows Based Control Software makes operation simple. It includes RS-232 Interface for controlling bath from PC. With height of only 27 inches, Fluke 7380-16 Compact Temperature Calibration Bath is easy to use on benchtops or on matching carts.
Specifications for the Fluke 7380-16 Compact Temperature Calibration Bath Include:
| Range | €“80 °C to 100 °C |
| Stability | ± 0.006 °C at €“80 °C (ethanol), ± 0.010 °C at 0 °C (ethanol), ± 0.010 °C at 100 °C (oil 5012) |
| Heating time | 25 minutes, from 25 °C to 100 °C (oil 5010) |
| Cooling time | 130 minutes, from 25 °C to €“80 °C (ethanol) |
