Keithley KUSB-3116
| Attribute | Value |
|---|---|
| Number of Analog Input Channels | 16 single-ended / 8 differential |
| Analog Input Resolution | 16-bit |
| Maximum Sampling Rate | 200 kS/s |
| Analog Input Voltage Ranges | ±10V, ±5V, ±2.5V, ±1.25V |
| Number of Analog Output Channels | 2 |
| Analog Output Resolution | 16-bit |
| Digital I/O Lines | 16 (8 input, 8 output) |
| Interface | USB 2.0 (Full Speed) |
| Counter/Timer Channels | 2 (32-bit) |
| Operating Temperature Range | 0°C to 55°C |
Keithley KUSB-3116 Options:
- KUSB-3116 - 4801 - 48˝ Low Noise Coax BNC to BNC Cable. For KUSB-3116
- KUSB-3116 - 7051-2 - 2´ General Purpose BNC to BNC Cable. For KUSB-3116
- KUSB-3116 - 7051-5 - 5´ General Purpose BNC to BNC Cable. For KUSB-3116
- KUSB-3116 - 7051-10 - 10´ General Purpose BNC to BNC Cable. For KUSB-3116
- KUSB-3116 - C1800 - 18˝ Ribbon Cable with one 37-Pin D-type female connector and one 37-Pin D-type male connector. For KUSB-3116
- KUSB-3116 - C-1800/M - 18˝ Ribbon Cable with two 37-Pin D-type female connectors. For KUSB-3116
- KUSB-3116 - KUSB-BNC-DIN-KIT - Din Rail Kit for KUSB-3116
- KUSB-3116 - S1803 - Shielded 4.5´ Cable with 37-Pin D-type female connectors. For KUSB-3116
- KUSB-3116 - S1805 - Shielded 6.5´ Cable with 37-Pin D-type female connectors. For KUSB-3116
- KUSB-3116 - STA-U - Universal Screw Terminal Accessory for KUSB-3116
| Model | KUSB-3116 |
|---|

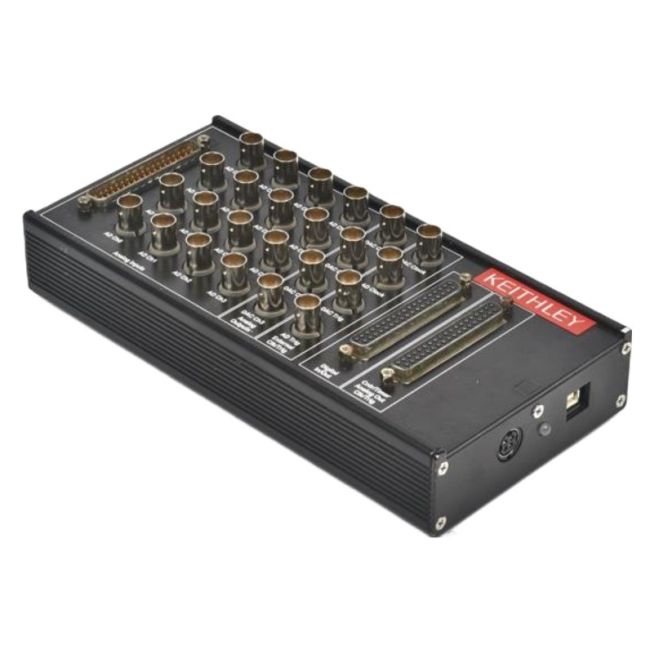

The Keithley KUSB-3116 is a multifunction USB 2.0 data acquisition module with 16-bit resolution, featuring 16 single-ended analog inputs, four waveform-quality analog outputs at 500 kS/s, 16 digital input/output lines, and five 32-bit counter/timer channels. Housed in a robust metal case with BNC and D-sub connectors, it supports USB 2.0 speeds up to 480 Mbps with 500V isolation for secure industrial use.
Ideal for industrial and laboratory environments requiring reliable analog/digital signal interfacing, the KUSB-3116 delivers precise performance with continuous and waveform output modes supporting up to 128 kSamples per channel.
Testwall can supply the used Keithley KUSB-3116, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley KUSB-3116
