Fluke 750P04

ManufacturerFluke
Model750P04
ProductPressure Module, 0 psi to 15 psi (0 to 1 bar), (0 to 100 kPa)
TypeUsed



Fluke 724

Fluke 724

Fluke 750P05

Fluke 750P05

Get Quote
SKU
tw750P04

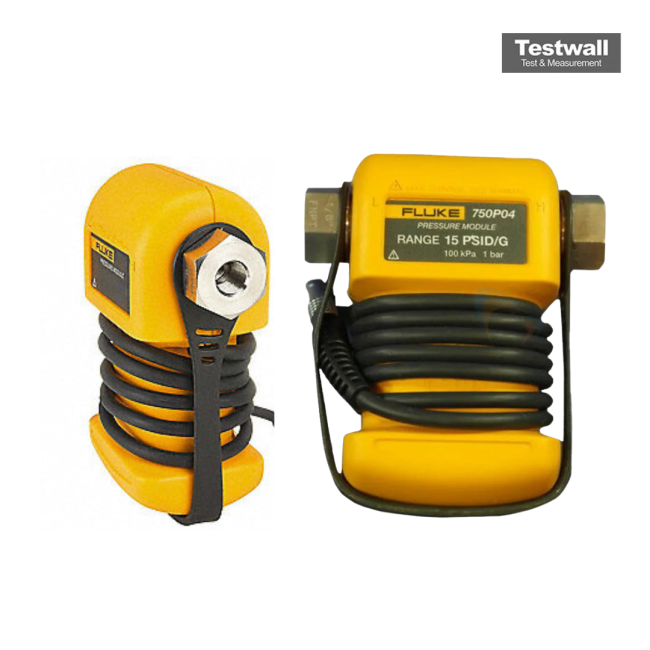

 Fluke 750P04 Pressure Module



The  Fluke 750P04 Pressure Module is  a differential  pressure module  that  turns  the Fluke multifunction calibrator into a full-fledged pressure calibrator to measure pressure. This pressure module  is highly accurate, with specifications that apply from 0 °C to 50 °C (32 °F to 122 °F), a feature that sets them apart from other pressure calibrators. Fluke 750P04 Pressure Module also extends the measurement range of Fluke pressure calibrators.

Fluke  750P04 Pressure Module  is easy to use as to measure pressure, you have to connect the pressure module to a pressure source or hand pump and then connect the pressure module cable to the calibrator. Now if you apply pressure from the pressure source it  will display digitally on the calibrator. At the touch of a button, the pressure may be displayed in up to 11 diffe engineering units.  Fluke 750P04 Pressure Module  has its own microprocessor, allowing it to run the measurement circuitry and to communicate digitally with a calibrator which  eliminates errors due to poor connections and electrical interference.



Specifications for the  Fluke 750P04 Pressure Module Include:

Parameter / range 0 to 15 psi (0 to 1 bar)
Burst rating 3X
Reference uncertainty ±0.0175%
Total uncertainty 6-month ±0.04%
