Fluke 9040
| Attribute | Value |
|---|---|
| Phase Sequence Indication | Clockwise (ABC) and Counter-Clockwise (ACB) |
| Voltage Range | 100 V to 600 V AC |
| Frequency Range | 15 Hz to 400 Hz |
| Display Type | LED indicator lights for phase sequence and voltage presence |
| Input Impedance | 287 kΩ per phase |
| Power Source | Line powered (no battery required) |
| Safety Rating | CAT III 600 V, CAT IV 300 V |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Standards Compliance | IEC 61010-1, IEC 61010-2-031, IEC 61010-031 |
| Model | 9040 |
|---|

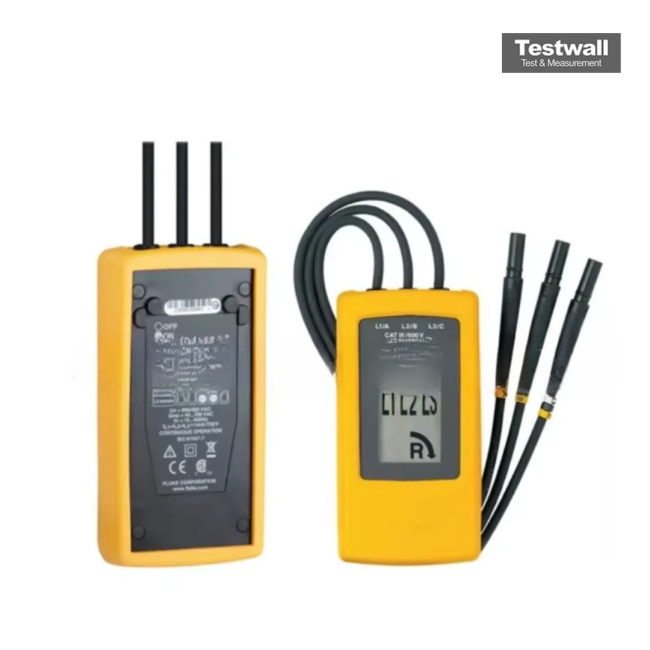

Fluke 9040 Phase Rotation Indicator
The Fluke 9040 Phase Rotation Indicator is a portable handheld instrument designed to detect the rotary field of three-phase systems. With three test leads, this rugged tester easily determines a clockwise or counterclockwise direction. Equipped with a clear, easy-to-read display and intuitive controls, the Fluke 9040 allows for straightforward operation and quick results. Designed with a compact form factor, Fluke 9040 Phase Rotation Indicator is easy to carry and use in diffe locations, enhancing convenience for fieldwork.
Fluke 9040 Phase Rotation Indicator is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Specifications for the Fluke 9040 Phase Rotation Indicator Include:
| Voltage range | 40-700 V |
| Frequency range | 15-400 Hz |
| Operating timer | Continuous |
| Operating temperature | 0 °C to 40 °C |
