Fluke 1625-2
| Attribute | Value |
|---|---|
| Test Method | 2-pole, 3-pole, and 4-pole earth ground testing |
| Measurement Range | 0.025 Ω to 20 kΩ |
| Frequency Range | 94 Hz to 125 Hz (selectable test frequency) |
| Stakeless (Clamp) Testing | Yes, supports stakeless testing using two clamps |
| Display | Backlit LCD with analog bar graph |
| Memory | Up to 99 test results stored internally |
| Communication Interface | USB and RS-232 for PC connectivity and data download |
| Power Supply | 6 x AA alkaline batteries |
| Safety Rating | CAT III 300 V, CAT IV 100 V |
| Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
Fluke 1625-2 Options:
- 1625-2 - EI-1625 - Selective/Stakeless Clamp Set for 1625
- 1625-2 - ES-162P3-2 - Stake Set for 3-Pole Measurement
- 1625-2 - ES-162P4-2 - Stake Set for 4-Pole Measurement
- 1625-2 - EARTH STAKE - Ground/Earth Stake
- 1625-2 - CABLE REEL 25M BL - Ground/Earth Cable Reel 25 m (81.25 ft)
- 1625-2 - CABLE REEL 25M GR - Ground/Earth Cable Reel 25 m (81.25 ft)
- 1625-2 - CABLE REEL 50M RD - Ground/Earth Cable Reel 50 m (162.5 ft)
- 1625-2 - EI-162BN - 320 mm (12.6 in) Split Core Transformer
- 1625-2 - EI-162X - Clip-on Current Transformer (Sensing) with Shielded Cable Set
- 1625-2 - EI-162AC - Clip-on Current Transformer (Inducing)
| Model | 1625-2 |
|---|

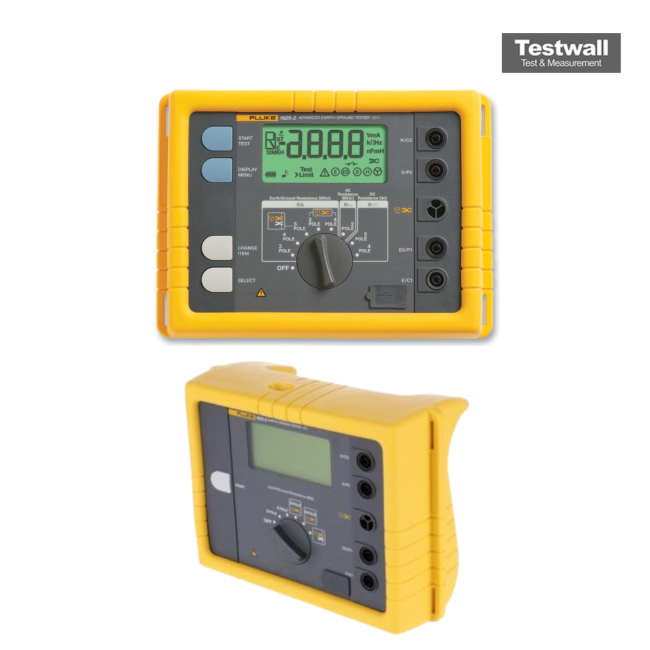

FLUKE 1625-2 Advanced GEO Earth Ground Tester
The Fluke 1625-2 Advanced GEO Earth Ground Tester is a cutting-edge instrument equipped with USB data storage and transfer capabilities. It boasts versatile features, including 3- and 4-pole Fall of Potential testing, 4-pole Soil Resistivity testing, selective earth ground rod testing with 1 clamp, and stakeless earth ground rod testing with 2 clamps. Its IP56 rating makes it suitable for outdoor use, and it comes in a professional carrying case with essential accessories.
The Fluke 1625-2 Advanced GEO Earth Ground Tester offers advanced features like Automatic Frequency Control (AFC) to minimize interference and R measurement for precise earth ground impedance calculation. The stakeless testing method simplifies measurements without disconnecting earth ground rods, making it a time-saving solution for various applications. This model can handle all four types of earth ground measurements and is user-friendly, making it a comprehensive and efficient earth ground testing solution.
Specifications for the FLUKE 1625-2 Advanced GEO Earth Ground Tester Include:
| Measurement Range | 1 V to 50 V |
| Resolution | 0.1 V |
| Frequency Range | DC / AC 45 Hz to 400 Hz sine |
| Limits of Error | ± (5 % of rdg + 5 digit) |
