Fluke 9102S
| Attribute | Value |
|---|---|
| Temperature Range | -25°C to 150°C (-13°F to 302°F) |
| Temperature Stability | ±0.005°C |
| Temperature Uniformity | ±0.05°C at 25°C |
| Display Resolution | 0.001°C |
| Heating/Cooling Time | Heating to 150°C in approximately 30 minutes; Cooling to -25°C in approximately 45 minutes |
| Well Diameter | 38 mm (1.5 in) |
| Well Depth | 160 mm (6.3 in) |
| Power Requirements | 115/230 VAC, 50/60 Hz, 550 W |
| Operating Environment | 10°C to 40°C ambient temperature, up to 80% relative humidity (non-condensing) |
| Weight | 9.5 kg (21 lb) |
Fluke 9102S Options:
- 9102S - 9102S-156 - DRY-WELL, HH LOW-TEMP
- 9102S - 9102S - HDRC Handheld Dry-Well
| Model | 9102S |
|---|

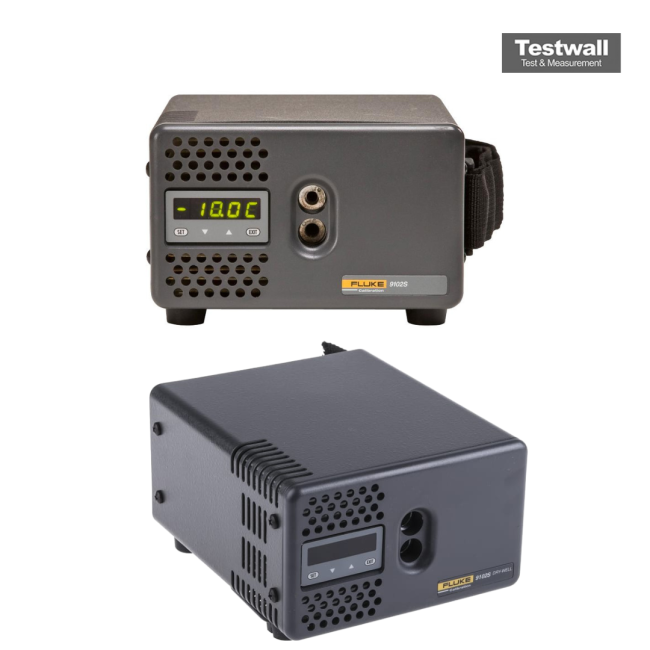

Fluke 9102S Portable Dry-Well Temperature
The Fluke 9102S Portable Dry-Well Temperature is a high-precision temperature calibrator designed for accurate and reliable calibration of temperature sensors and instruments. This dry-well is only four inches high and six inches wide making it easy to integrate into diffe lab setups. Fluke 9102S achieves temperatures as low as €“10 °C, includes a NIST-traceable calibration, and is stable to ±0.05 °C. Fluke 9102S Portable Dry-Well Temperature is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.
Fluke 9102S Portable Dry-Well Temperature has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size. This dry-well also has a battery pack option that gives you approximately four hours of field use when AC power is unavailable. It is equipped with an RS-232 interface for connectivity with PC. Fluke 9102S Portable Dry-Well provides high accuracy and excellent uniformity throughout the bath, ensuring that your calibration results are reliable and repeatable.
Specifications for the Fluke 9102S Portable Dry-Well Temperature Include:
| Range | €“10 °C to 122 °C (14 °F to 252 °F) at 23 °C ambient |
| Accuracy | ±0.25 °C |
| Stability | ±0.05 °C |
| Heating times | Ambient to 100 °C: 10 minutes |
