Fluke FI-500
| Attribute | Value |
|---|---|
| Fiber Type | Multimode and Single-mode |
| Wavelengths Supported | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Display | Built-in 2.4-inch color LCD touchscreen |
| Image Resolution | 640 x 480 pixels |
| Magnification | 200x digital magnification |
| Connector Compatibility | LC, SC, ST, FC, and MPO/MTP connectors (via interchangeable tips) |
| Battery Type | Rechargeable lithium-ion battery |
| Battery Life | Up to 4 hours of continuous use |
| Pass/Fail Analysis | Automated pass/fail grading per IEC 61300-3-35 standard |
| Data Storage and Reporting | Stores images and results; transfers via USB to PC for reporting |
| Model | FI-500 |
|---|

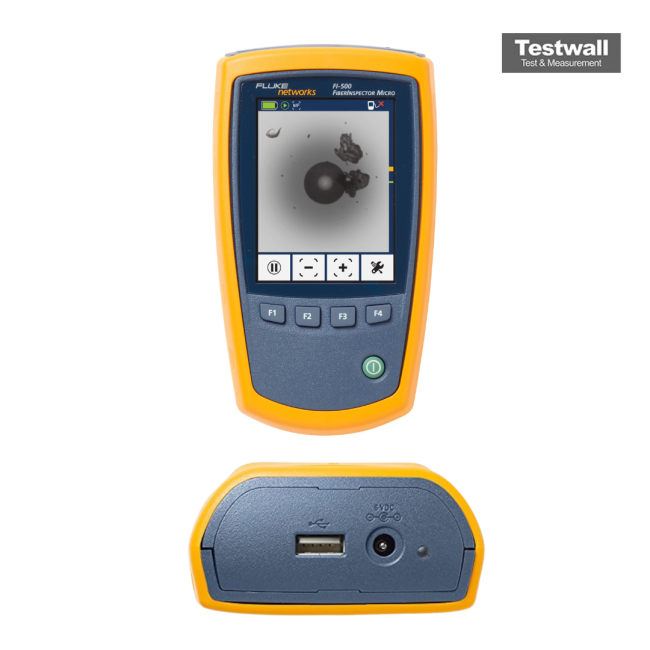

FLUKE FI-500 Fiber Optic Inspection Camera
The Fluke FI-500 Fiber Optic Inspection Camera is a handheld tool designed to simplify the inspection process of fiber optic cable ends, especially in the low light conditions found in most data centers and wiring closets. The built-in PortBright flashlight helps you find the right port or cable in dark sreas and dense panels. Fluke FI-500 features autofocus camera providing a sharp view of the endface in under a second, while the pause button freezes the image on the crisp 320 x 240 display for more detailed inspection.
The Fluke FI-500 Fiber Optic Inspection Camera has the simplicity and practicality of a manual inspection scope, but with advanced features to reduce troubleshooting and inspection time. The large display lets you easily view high-resolution images of single-mode and multimode fiber and faces. The small-profile probe fits into tight spots, and features push-button controls for simple operation. Fluke FI-500 includes 4 UPC tips (LC, SC, 1.25 mm, and 2.50 mm), with APC and bulkhead tips available. By ensuring the fiber ends are clean and undamaged, Fluke FI-500 Fiber Optic Inspection Camera plays a vital role in maintaining the high performance of fiber optic networks.
Specifications for the FLUKE FI-500 Fiber Optic Inspection Camera Include:
| Vibration | 2 g, 5 Hz to 500 Hz |
| Frames per second | ‰¥12 |
| Magnification | 200x. Zoom function has 1x, 2x and 4x settings |
| Resolution | 1 μm |
