Fluke Networks DTX-OTDR
| Attribute | Value |
|---|---|
| Compatibility | Compatible with DTX-1800, DTX-1200, and DTX-LT Cable Analyzers |
| Wavelengths | 1310 nm and 1550 nm |
| Dynamic Range | Up to 26 dB at 1310 nm and 24 dB at 1550 nm |
| Dead Zone (Event) | Less than 1.5 m |
| Distance Range | Up to 40 km |
| Fiber Types Supported | Single-mode (OS1/OS2) optical fiber |
| Connector Type | Universal FC adapter (SC, ST, LC adapters available) |
| Test Standards | TIA-568, ISO/IEC 11801, IEEE 802.3 |
| Power Source | Powered by DTX Cable Analyzer battery |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Fluke Networks DTX-OTDR Options:
- DTX-OTDR - DTX-1800-MSO - Complete DTX certification and troubleshooting kit: Includes DTX-1800 CableAnalyzer, sets of multimode DTX MFM2 and singlemode DTX SFM2 Fiber (loss/length) modules, DTX Compact OTDR, launch fibers, accessories and carrying case
- DTX-OTDR - DTX-QUAD-OTDR - DTX 1800 QUAD OTDR Kit: Includes DTX-1800 CableAnalyzer mainframe and DTX Compact OTDR and carrying case
- DTX-OTDR - DTX-OTDR-KIT - DTX OTDR Compact add-on Kit: Includes DTX Compact OTDR, launch fibers, accessories and carrying case
- DTX-OTDR - DTX-OTDR/LL-KIT - DTX Compact OTDR and Loss Length Kit: Includes sets of multimode DTX MFM2 and singlemode DTX SFM2 Fiber (loss/length) modules, DTX Compact OTDR, launch fibers, accessories and carrying case
- DTX-OTDR - DTX-OTDR-QMOD - 850/1300/1310/1550 DTX OTDR Module: Includes DTX Compact OTDR module and carrying case
- DTX-OTDR - GLD-DTX - DTX Gold Support: Includes no-charge repair, loaner kit, no-charge replacement of accessories, no-charge software or firmware upgrades, unlimited 24x7 multilingual technical support, unlimited access to knowledge base and online training, 20% discount on all in-person or on-site training programs, priority access to the used equipment list, and members only discounts on select products and enhancements
- DTX-OTDR - GLD-DTX-FIBERMOD - DTX Compact OTDR Gold Support: Includes no-charge repair, loaner kit, no-charge replacement of accessories, no-charge software or firmware upgrades, unlimited 24x7 multilingual technical support, unlimited access to knowledge base and online training, 20% discount on all in-person or on-site training programs, priority access to the used equipment list, and members only discounts on select products and enhancements
| Model | DTX-OTDR |
|---|

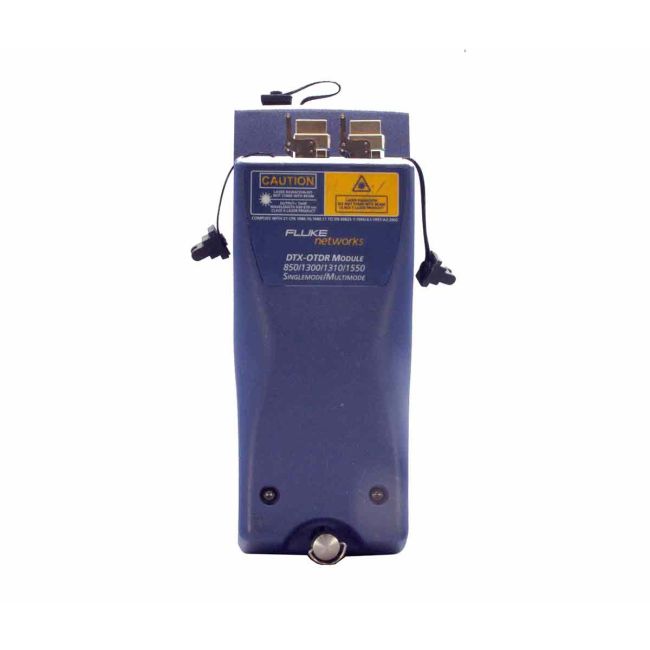

The Fluke Networks DTX Compact OTDR Module transforms the DTX CableAnalyzer into a full Optical Time Domain Reflectometer. It provides comprehensive singlemode and multimode fiber trace analysis with automatic OTDR setups, launch fiber compensation, and configurable event loss thresholds. Technicians can easily measure splice and connector distances, identify losses, and locate faults with precision using intuitive graphical traces and cursor tools.
With its integrated Visual Fault Locator (VFL), the Fluke Networks DTX Compact OTDR Module enables rapid identification of fiber continuity issues, connector defects, and bends. This streamlines troubleshooting, fiber diagnostics, and validation processes, all within the familiar DTX interface.
Testwall can supply the used Fluke Networks DTX Compact OTDR Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Fluke Networks DTX Compact OTDR Module.
