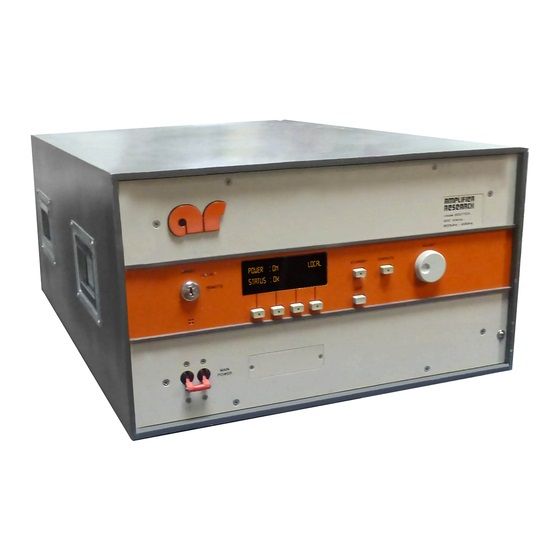

Amplifier Research 500T2Z5G7Z5
| Attribut | Valeur |
|---|---|
| Puissance de sortie | 500 W |
| Plage de fréquence | 2 MHz – 5 GHz |
| Gain typique | ≥ 50 dB |
| Impédance d'entrée/sortie | 50 Ohms |
| Tension d'alimentation | 208/240 V CA, monophasé |
| Connecteur d'entrée | Type N femelle |
| Connecteur de sortie | Type N femelle |
| Niveau de puissance d'entrée requis | ≤ 0 dBm (1 mW) |
| Refroidissement | Refroidissement par air forcé |
| Dimensions (L x H x P) | 482,6 mm x 222,25 mm x 609,6 mm |
Amplifier Research 500T2Z5G7Z5 Options:
- 500T2Z5G7Z5 - M1 - E1C: Cabinet without outer enclosure, 48.3 x 22.2 (5U) x 66.1 cm, 19 x 8.75 (5U) x 27 in. Subtract approximately 14 kg, 30 lbs.
- 500T2Z5G7Z5 - M2 - E3H: Front pull handles installed.
- 500T2Z5G7Z5 - M3 - E1C & E3H: Cabinet without outer enclosure plus front pull handles installed.
- 500T2Z5G7Z5 - M4 - E1C & E2S: Cabinet without outer enclosure plus slides installed (add approximately 2 kg, 5 lbs).
- 500T2Z5G7Z5 - M5 - E1C & E2S & E3H: Cabinet without outer enclosure, slides, and front pull handles installed.
- 500T2Z5G7Z5 - M6 - P1: 190-260 VAC single phase 50/60 Hz, 3.5 KVA maximum alternate primary power.
- 500T2Z5G7Z5 - M7 - E1C & P1: Cabinet without outer enclosure plus single phase alternate primary power.
- 500T2Z5G7Z5 - M8 - E1C & E2S & E3H & P1: Cabinet without outer enclosure, slides, front pull handles, and single phase alternate primary power.
- 500T2Z5G7Z5 - M9 - S1R: Reflected sample port on rear panel, type N female connector. Forward and reflected sample port calibration data supplied on disk in Excel format at 51 points.
- 500T2Z5G7Z5 - M10 - P1 & S1R: Single phase alternate primary power plus reflected sample port on rear panel.
- 500T2Z5G7Z5 - M11 - E1C & P1 & S1R: Cabinet without outer enclosure, single phase alternate primary power, and reflected sample port.
- 500T2Z5G7Z5 - M12 - P1 & S2V: Single phase alternate primary power plus video pulse capability (blanking, PRF up to 100 kHz, RF rise/fall 30 ns max).
- 500T2Z5G7Z5 - M13 - E1C & S3P & S6F: Cabinet without outer enclosure, power minimum 350 watts from 7.5–8.0 GHz, and external filter assembly with TWTA input/filtered output/coupled ports on front of subassembly.
- 500T2Z5G7Z5 - M14 - E1C & E2S & S5F: Cabinet without outer enclosure, slides, and external filter assembly with connectors on rear panel.
- 500T2Z5G7Z5 - M15 - S3P: Power minimum 350 watts from 7.5 GHz to 8.0 GHz (400 watts typical).
- 500T2Z5G7Z5 - M16 - E1C & E2S & E3H & P1 & S1R: Cabinet without outer enclosure, slides, front pull handles, single phase alternate primary power, and reflected sample port.
- 500T2Z5G7Z5 - M17 - E1C & E3H & P1 & S7C: Cabinet without outer enclosure, front pull handles, single phase alternate primary power, and RF output on rear panel with all other connectors on front panel (interlock BNC, RF output sample port 60 dB coupling factor).
- 500T2Z5G7Z5 - M18 - E3H & S2V: Front pull handles installed plus video pulse capability (blanking, PRF up to 100 kHz, RF rise/fall 30 ns max).
| Model | 500T2Z5G7Z5 |
|---|
L’Amplifier Research 500T2z5G7z5 est un amplificateur TWT large bande auto-refroidi par air forcé, offrant un minimum de 500 W sur 2,5–7,5 GHz. Il propose un gain minimum de 57 dB, un réglage continu de 35 dB, une protection VSWR et prend en charge AM, FM et modulation d’impulsions. Son alimentation modulaire, son affichage numérique et son interface IEEE-488 (GPIB) garantissent des performances fiables dans des environnements exigeants.
Idéal pour les tests CEM, la recherche industrielle, la R&D universitaire et les applications de service, le 500T2z5G7z5 assure une puissance élevée et une protection robuste.
Testwall peut fournir l’Amplifier Research 500T2z5G7z5 d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall assure des instruments fiables et performants. Contactez-nous si vous avez besoin d’étalonnage ou de réparation de l’Amplifier Research 500T2z5G7z5.
