Chroma 10656
| Attribut | Valeur |
|---|---|
| Plage de tension de sortie | 0 - 80 V DC |
| Plage de courant de sortie | 0 - 56 A |
| Puissance maximale | 1 800 W |
| Interface de communication | GPIB, RS-232, USB |
| Régulation de tension | ≤ 0,05% + 10 mV |
| Régulation de courant | ≤ 0,05% + 10 mA |
| Ondulation et bruit (tension) | ≤ 3 mV rms |
| Affichage | Affichage LED numérique |
| Tension d'alimentation | 100 - 240 V AC, 50/60 Hz |
| Format mécanique | 2U, montage en rack 19 pouces |
Chroma 10656 Options:
- 61507 - Programmable AC Source 0~350V, 15~2kHz / 3kVA
- 61508 - Programmable AC Source 0~350V, 15~2kHz / 4.5kVA
- 61509 - Programmable AC Source 0~350V, 15~2kHz / 6kVA
- 61607 - Programmable AC Source 0~350V, 15~2kHz / 3kVA
- 61608 - Programmable AC Source 0~350V, 15~2kHz / 4.5kVA
- 61609 - Programmable AC Source 0~350V, 15~2kHz / 6kVA
- A615007 - Softpanel for Model 61500 Series
- B615000 - 5kHz output frequency option (for 61507/61508/61509 only) (factory installation)
| Model | 10656 |
|---|
CHROMA 10656

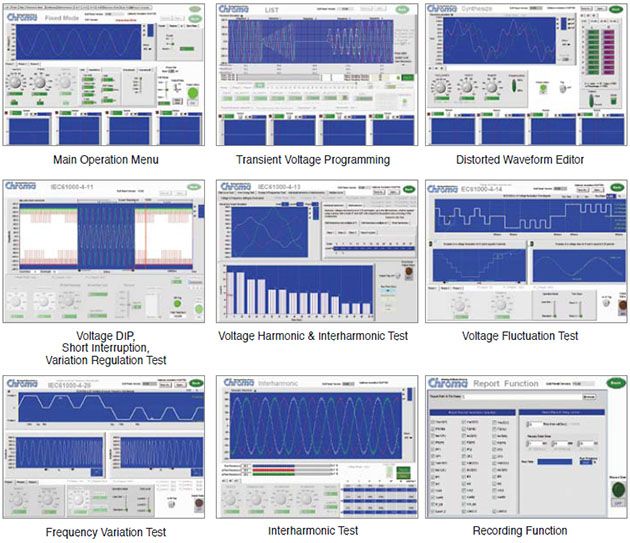

The Chroma 10656 Softpanel (SoftWare) is a graphical user interface which provides extraordinary capability and convenience to user for delivering control to the unit. The 10656 Softpanel is designed specifically for offering users control of the , , and AC sources by applying a user friendly interface configured in graphical, instrument like settings. The self explanatory graphical interface makes enabling of the extensive functions of the AC source easy with just few clicks of a button. Users are able to perform online and offline waveform editing with the implementation of the softpanel. The softpanel is also equipped with data recording functions as multiple measurement data can be recorded simultaneously. One of the most powerful features of our softpanel is the availability of a test environment configured specifically for conducting IEC regulation tests, including IEC61000-4-11, IEC61000-4-13, IEC61000-4-14 and IEC61000-4-28.
