Chroma 61800-100
| Attribut | Valeur |
|---|---|
| Puissance de sortie maximale | 100 kVA |
| Tension de sortie (CA) | 0 – 350 V (monophasé / triphasé) |
| Fréquence de sortie | 15 Hz – 1 200 Hz |
| Courant de sortie maximal | 165 A par phase |
| Tension d'entrée | 380 V / 400 V / 415 V CA, triphasé |
| Distorsion harmonique totale (THD) | ≤ 0,5 % (charge linéaire) |
| Temps de réponse de la régulation de tension | ≤ 1 cycle |
| Interface de communication | GPIB, RS-232, USB, LAN (optionnel) |
| Mode de fonctionnement | Monophasé, triphasé, mode découplé 3 × 1 phase |
| Dimensions (L × P × H) | 482 mm × 800 mm × 1 200 mm (format rack 19") |
Chroma 61800-100 Options:
- 61800-100 - B618003 - 500 VLN HV option (factory installation)
| Model | 61800-100 |
|---|

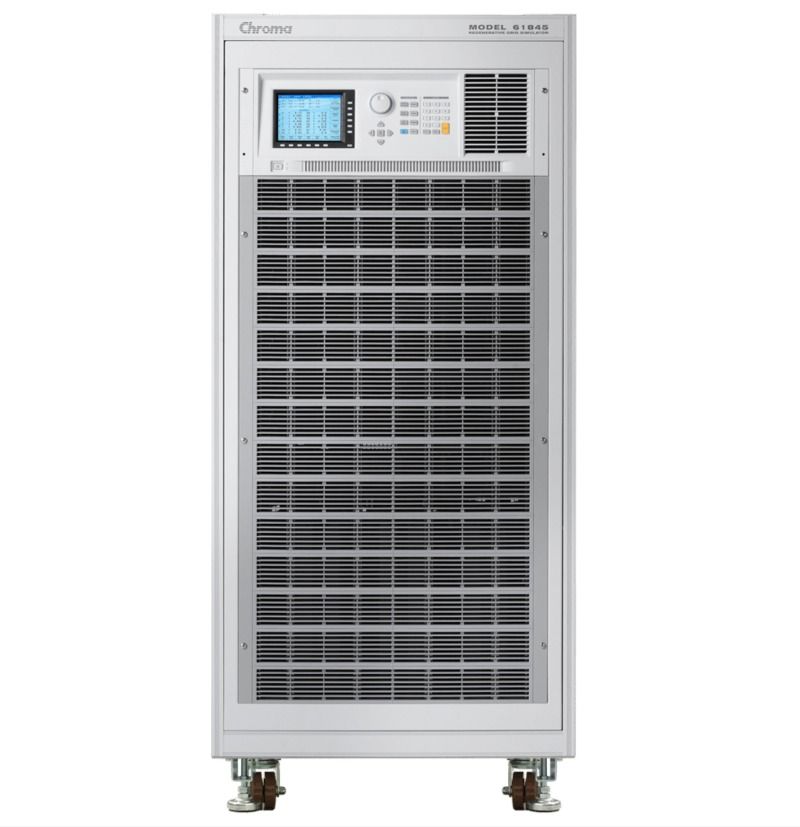

CHROMA 61800-100 Regenerative Grid Simulator
Chroma's new 61800-100 Grid Simulators have been designed to fulfill many test requirements by providing a full 4 quadrant, fully regenerative, grid simulator with advanced features for compliance, safety and product verification testing. The 61800-100 regenerative grid simulator allows users to vary relevant parameters in order to simulate real world grid environments and conditions. Supported variations include frequency, phase angle, voltage amplitude, voltage drops in either single or three phase modes. The 61800-100 grid simulator also meets test requirements for smart grid and EV related test applications, such as Vehicle to Grid (V2G) and Energy Storage System (ESS) testing.
The Chroma 61800-100 is also able to provide precision measurements such as RMS voltage, RMS current, true power, power factor, cur crest factor and many others. By applying advanced DSP technology, the 61800-100 can easily simulate power line disturbance (PLD) using LIST, PULSE and STEP modes. Additional features such as the waveform synthesis function allows users to program various distorted harmonic waveforms that are required by some regulatory standards. Most importantly, the regenerative feature of the 61800-100 product can sink the power generated by the Discrete Generator (DG) on the micro Grid and feed the power back to the main grid. The input side of 61800-100 series product has been specifically designed to be isolated from the main grid.
Specifications for the CHROMA 61800-100 Regenerative Grid Simulator Include:
| Max. Power | 105 kVA |
| Max. Power per phase | 35 kVA |
| Voltage | 0~300V LN/0~520V LL |
| Max. Cur (per phase in 3-Ph Mode) | 140A |
