ESI PRT73 Options:
- PRT73 - P/N 70192 - Rack Mount Kit
- PRT73 - P/N 70161 - 2.5 V/Hz Option (extends voltage capability to 2.5 V/Hz from 10 Hz to 1 kHz, improves resolution to 0.01 ppm, eight decades)
- PRT73 - P/N 70193 - Rear Panel Terminal Option
- PRT73 - OPT-Z540 - Z540 Compliant Calibration with Certificate and Data
| Model | PRT73 |
|---|

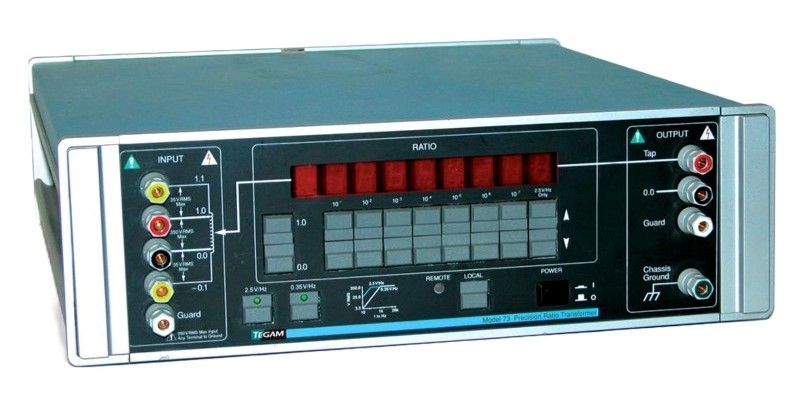

ESI / Tegam PRT73 PRT-73
The Tegam / ESI PRT73 Automated Precision Ratio Transformer meets or exceeds all of the requirements for a calibration standard in precision measurement applications. It is easily integrated into systems for either automated or manual calibration of ratio dividers, transformer standards, synchro/resolver standards, transformers, calibrators, and voltmeters. The PRT-73 is fully programmable via a standard IEEE-488 interface increasing calibration throughput reducing operator intervention.
Specifications of the PRT73 include:
- Remotely programmable via standard IEEE-488 interface
- Standard Resolution to 0.1 ppm
- Terminal Linearity up to 0.9 ppm
- Wide bandwidth 10 Hz to 20 kHz
- Overload protection
- Front panel display for easy set up and operation
- 2.5 V/Hz Option Kit Available
