Fluke 1775
| Attribut | Valeur |
|---|---|
| Classe de l'analyseur de qualité d'énergie | Classe A (conforme à la norme IEC 61000-4-30) |
| Plage de tension d'entrée | 1 V à 1000 V (valeur efficace), phase à neutre |
| Plage de fréquence | 42,5 Hz à 69 Hz |
| Plage de mesure du courant | 1 mA à 10 000 A (selon la sonde de courant utilisée) |
| Canaux de mesure | 4 canaux de tension, 4 canaux de courant |
| Taux d'harmoniques mesurés | Jusqu'au 50e harmonique (tension et courant) |
| Capacité de stockage interne | 8 Go de mémoire interne |
| Interface de communication | USB, Ethernet, Wi-Fi (en option) |
| Alimentation de l'appareil | 100 V à 500 V CA, 50/60 Hz (alimentation directe sur le réseau mesuré) |
| Indice de protection | IP50 (protection contre la poussière) |
Fluke 1775 Options:
- 1775 - FLUKE1775 - Fluke 1775 Power Quality Analyzer (standard, includes i17XX-FLEX1500 24" current probes, WiFi/BLE module, magnet probes, hanger kit, and soft case)
- 1775 - FLUKE1775/BASIC - Fluke 1775 Power Quality Analyzer Basic (does not include current probes or WiFi/BLE adapter)
| Model | 1775 |
|---|

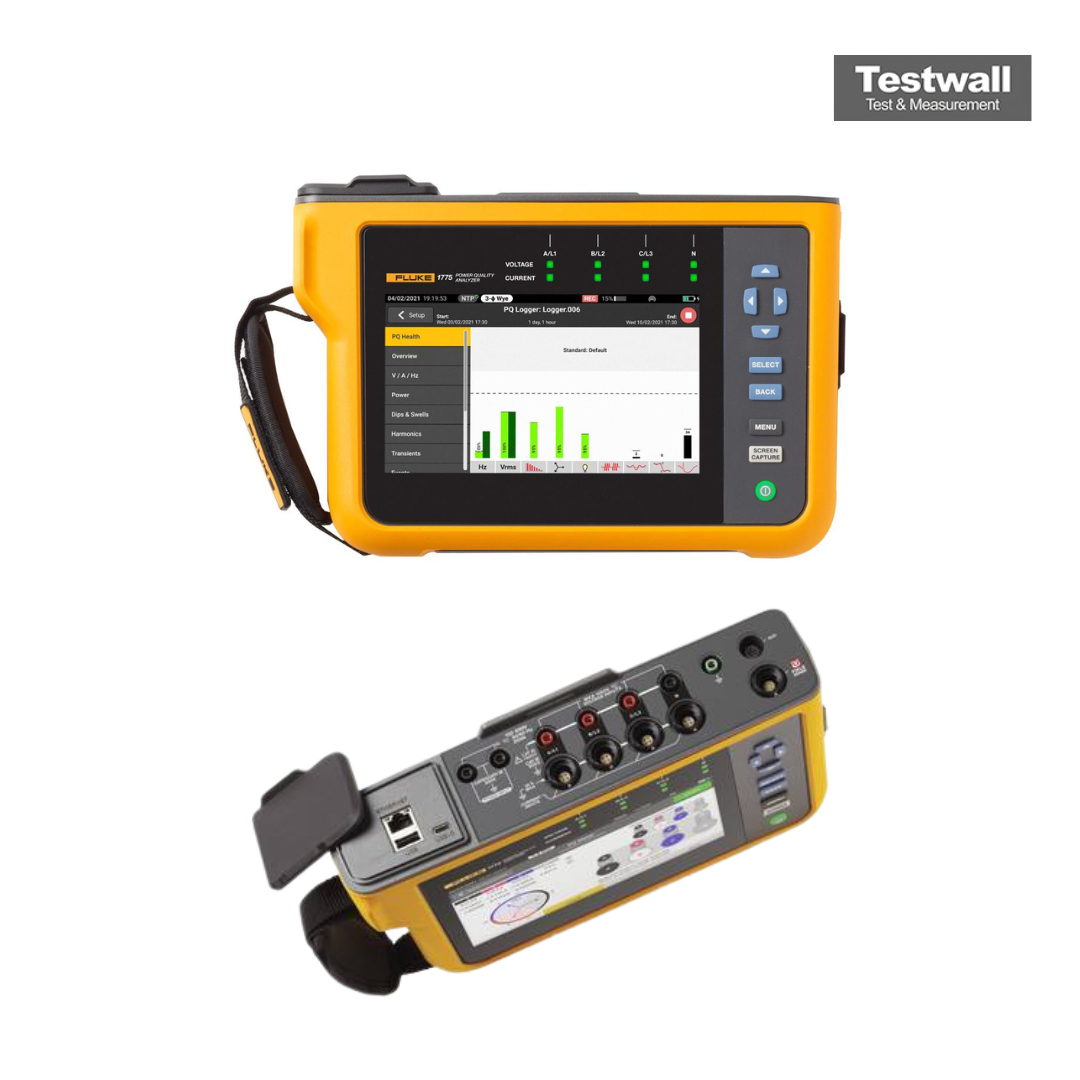

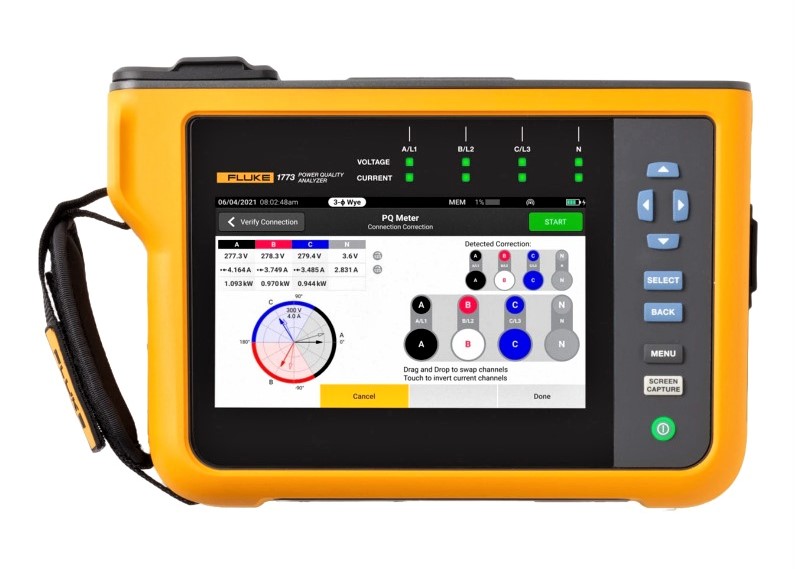

FLUKE 1775 Three-Phase Power Quality Analyzer
With the Fluke 1775 you'll never miss a critical power quality event €”from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and power measurements that enable you to characterize your electrical system. The Fluke 1775 offers a unique automatic measurement capture system that helps ensure you're collecting the right data every time, while still giving you the flexibility to select and adjust specific parameters as needed. Logged data is instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software which comes standard.
The Fluke 1775 is a 2-in-1 device that combines the troubleshooting functionality of a power quality meter with the robust analysis and logging capabilities of a standalone power quality analyzer in a single, easy-to-use, handheld device. The PQ Meter function gives you immediate access to live on screen data in the field so you can quickly identify potential problems while troubleshooting. The Fluke 1775 Power Quality Analyzer has 1MHz sampling capability to capture the fastest transients in high detail so you have the data you need to stop them in their tracks.
Specifications for the FLUKE 1775 Three-Phase Power Quality Analyzer Include:
| Max Input Voltage | 1000 V rms / 1000 V dc (1700 Vpk) |
| Resolution | 24-bit synchronous sampling |
| Bandwidth | DC to 30kHz |
| Sampling Frequency | 80 kS/s at 50/60 Hz |
