Fluke DTX-1800
| Attribut | Valeur |
|---|---|
| Catégorie de câble prise en charge | Catégorie 6A / Classe EA et inférieur |
| Fréquence maximale de test | 500 MHz |
| Précision de mesure | Niveau IV (Level IV) selon les normes IEC 61935-1 |
| Durée de test (câble Cat 6A) | Environ 65 secondes (test automatique complet) |
| Capacité de mémoire | Jusqu'à 250 résultats de test de câblage en mémoire interne |
| Interface de communication | USB, interface série RS-232, compatible avec le logiciel DTX CableAnalyzer |
| Autonomie de la batterie | Environ 8 heures en utilisation continue |
| Normes de test prises en charge | TIA-568-B, ISO/IEC 11801, EN 50173 et autres normes internationales |
| Température de fonctionnement | 0 °C à 50 °C |
| Certification et conformité | Conforme aux normes CE, UL ; certifié pour les tests de câblage structuré industriel et commercial |
Fluke DTX-1800 Options:
- DTX-1800 - Fiber Test Module (multimode) - Fiber Test Module, multimode (optional accessory)
- DTX-1800 - Fiber Test Module (singlemode) - Fiber Test Module, singlemode (optional accessory)
- DTX-1800 - Fiber Test Module (gigabit multimode) - Fiber Test Module, gigabit multimode (optional accessory)
- DTX-1800 - Class F permanent link adapter - Class F permanent link adapter (optional accessory)
- DTX-1800 - Class F channel adapter - Class F channel adapter (optional accessory)
- DTX-1800 - Coax Cable Test Adapters - Coax Cable Test Adapters (optional accessory)
- DTX-1800 - Patch Cord Test Adapters - Patch Cord Test Adapters (optional accessory)
| Model | DTX-1800 |
|---|

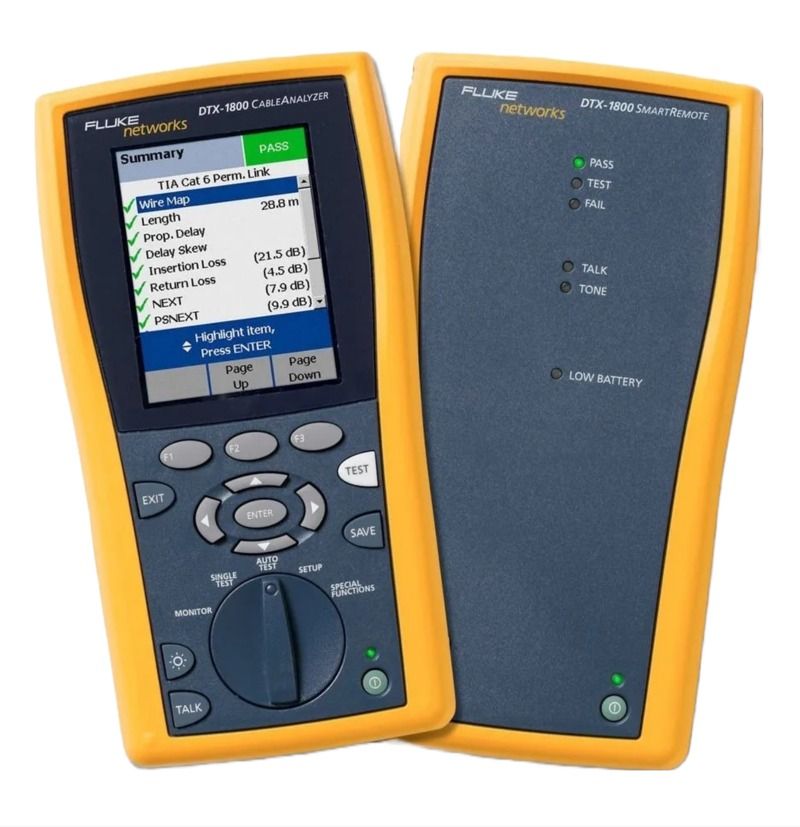

The Fluke DTX-1800 Cable Analyzer from Fluke Networks is the testing platform for today and tomorrow. This revolutionary new future-proof platform significantly reduces total time to certify by improving every aspect of the testing process.
It starts with 9-second Cat 6 Autotest that means you can meet TIA-568-B and ISO 11801:2002 certification requirements and receive structured cabling warranties much faster than ever before. With all this speed also comes increased accuracy. The Fluke DTX-1800 is the only independently verified tester to obtain UL classification for ISO Accuracy Level IV. And, the DTX 10 Gig Copper Kit together with DTX-1800 delivers on the promise of a future-proof investment - measuring 10 Gig cabling performance and Alien Crosstalk (ANEXT and AFEXT) in full compliance with the industry standards to 500 MHz. The AC Wiremap feature validates twisted-pair cabling for Power over Ethernet services in accordance with TIA/EIA standards, even if a Midspan power supply is used. With the DTX Series, you're ready for whatever the world throws at you - today and tomorrow.
Advantages of the Fluke DTX-1800 includes the following key features:
- DTX significantly reduces total certification costs up to 33% a year
- Three times faster than existing testers with 9-second Cat 6 Autotest
- Independently verified by UL to meet ISO Level IV and proposed TIA Level IIIe Accuracy requirements
- Analyze test results and create professional test reports using LinkWare reporting software
- Verify the availability of network and IP services using the Network Service Module
- Perform Basic fiber certification five times faster with DTX Fiber Module
- Perform Extended fiber Certification with DTX Compact OTDR
Features of the Fluke DTX-1800 include:
- Cat 6 Autotest time: 9 Seconds
- Maximum bandwidth: 900 MHz
- Accuracy level: IV
- Color display
- Stores graphical results data
- Internal memory capacity (graphical Cat 6): 250
- Removable memory card interface
- Cat 6 graphical results for each of 32 MB multiple: 600
- Lithium ion batteries €“ battery life: 12 hours
- Advanced diagnostics
- AC Wire Map capability
- USB interface
- Serial interface
- Cat 6A permanent link adapter
- Cat 6 channel adapter
- Accepts resident fiber module
- Start autotest at smart remote
- Talk between main and smart remote
- DTX Compact OTDR Module: Optional
- Fiber Loss/Length Test Module (multimode, singlemode, or gigabit multimode): Optional
- Fiber Compact OTDR Module: Optional
- DTX 10 Gig Kit: Optional
- Network Service Module: Optional
- Patch Cord Test Adapters: Optional
- Class F Adapters: Optional
- Coax Cable Test Adapters: Optional
- Multimedia memory card
- USB cable
- Serial computer interface cable
- Talk headset
- Carrying case
