FW Bell 5180 Options:
- 5180 - HTD18-0604 - 4" Transverse Probe
- 5180 - STD18-0402 - 2" Transverse Probe
- 5180 - SAD18-1904 - 4" Axial Probe
- 5180 - SAD18-1902 - 2" Axial Probe
- 5180 - STB1X-0201 - Ultra Thin Transverse Probe (0.020" thick)
- 5180 - MOS51-3204 - Low Field Probe
- 5180 - YA-111 - Zero Gauss Chamber (for axial, transverse and low-field probes)
- 5180 - PSRD-5 - AC Adapter, +5VDC Regulated Output, 110VAC Input, Domestic
- 5180 - PSRI-5 - AC Adapter, +5VDC Regulated Output, 220VAC Input, Switching, International
| Model | 5180 |
|---|

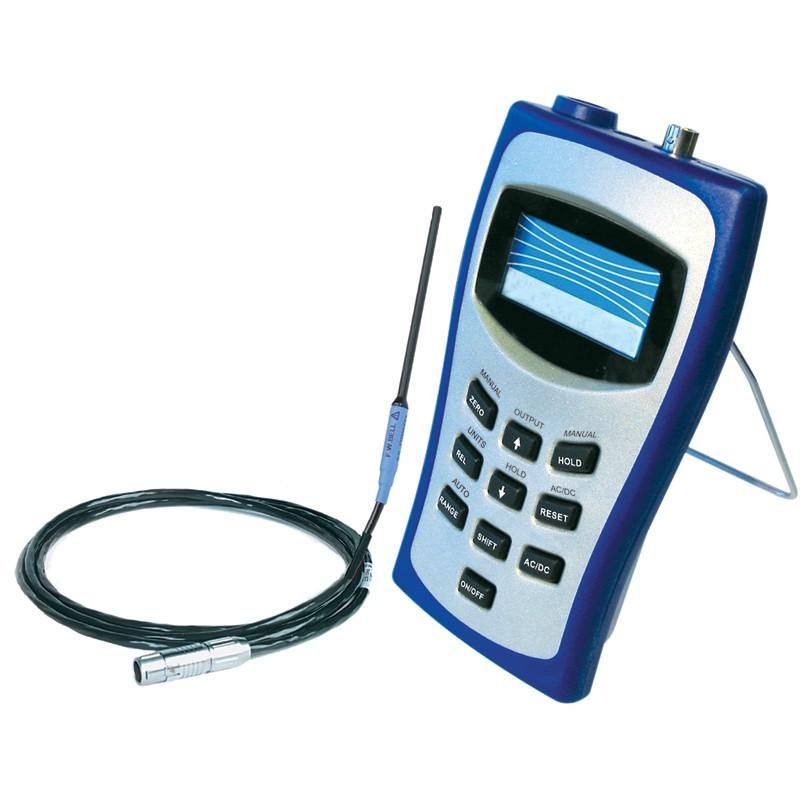

FW Bell 5180 RoHS Gaussmeter w/Transverse Probe
The FW Bell 5180 RoHS Gaussmeter w/Transverse Probe is designed for measuring the strength of magnetic fields. It's a high-quality instrument known for it's accuracy, reliability, and ease of use. It utilizes digital signal processing technology, a world first, along with a dynamic probe correction which allows measurements from 0 - 30 kG with a basic accuracy of 1.1%. Applications with these CE compliant meters can range from sensitive laboratory environments to rugged industrial settings.
FW Bell 5180 RoHS Gaussmeter w/Transverse Probe allows the user to choose between Gauss, Tesla, or Ampere/meter readings. It features an auto-zeroing function, auto range, relative mode and, min./max./peak hold. FW Bell 5180 include a built-in software that eliminates the need for complex calibration procedures. The custom-formatted LCD user prompts allow fast, simple push button operation. It also features a corrected analog output ( ±3V FS) and a USB communication port (1 sample/second). Application for FW Bell 5180 RoHS Gaussmeter range from the most sensitive laboratory environment to the most rugged industrial setting.
Specifications for the FW Bell 5180 RoHS Gaussmeter w/Transverse Probe Include:
| Frequency bandwidth | DC- 25 kHz |
| Basic DC Accuracy | 1.1% |
| Resolution | 1 mG - 10 G |
| Measuring Range | 1G (low-field probe only) - 30kG |
