For a fast overview of the exposure levels due to individually definable frequency ranges, services and providers as absolute values or automatically evaluated according to common human safety standards.
Narda

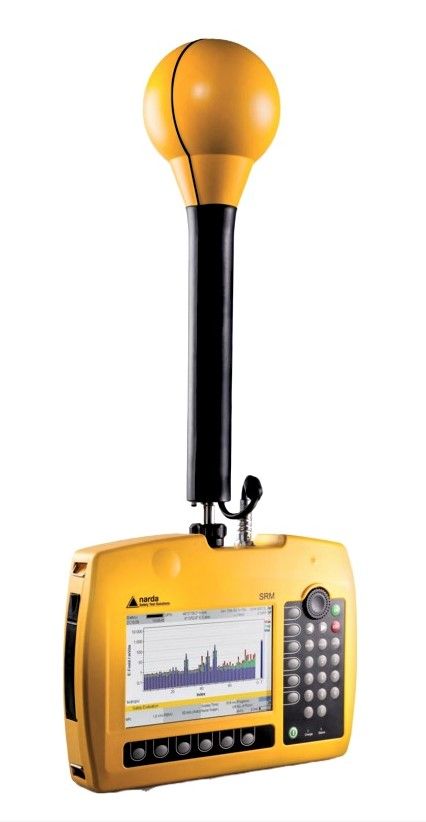

Narda SRM-3006
Selective Radiation Meter, 9 kHz - 6 GHz
100 kHz – 3 GHz Plage de fréquences
0,5 mV/m – 100 kV/m (champ électrique) Plage de mesure
Antennes isotropes à large bande pour champs électriques et magnétiques Antennes compatibles
Mesure de la valeur efficace (RMS), analyse spectrale, mesure temporelle Modes de mesure
Écran couleur TFT tactile Affichage
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 100 kHz – 3 GHz |
| Plage de mesure | 0,5 mV/m – 100 kV/m (champ électrique) |
| Antennes compatibles | Antennes isotropes à large bande pour champs électriques et magnétiques |
| Modes de mesure | Mesure de la valeur efficace (RMS), analyse spectrale, mesure temporelle |
| Affichage | Écran couleur TFT tactile |
| Normes de sécurité supportées | ICNIRP, IEEE, FCC, normes nationales et internationales d'exposition aux champs électromagnétiques |
| Autonomie de la batterie | Jusqu'à 5 heures en fonctionnement continu |
| Interface de communication | USB, Bluetooth (option) |
| Conditions d'utilisation | Température : -10 °C à +50 °C, Humidité : jusqu'à 95 % sans condensation |
| Dimensions et poids | Environ 270 x 85 x 45 mm, environ 700 g (sans antenne) |
Narda SRM-3006 Options:
- SRM-3006 - 3701/04 - Option, UMTS P-CPICH Demodulation
- SRM-3006 - 3701/05 - Option, Scope
- SRM-3006 - 3701/06 - Option, LTE (for FDD networks)
- SRM-3006 - 3701/07 - Option, LTE (for TDD networks)
| Model | SRM-3006 |
|---|
NARDA SRM-3006
The Narda SRM-3006 Selective Radiation Meter is the 2nd generation hand-held system for narroband analysis of electromagnetic fields, produced by Narda. Differentiating itself from the Narda NBM-520, NMB-550 and NBM-580 Broadband Radiation Field Meters, the SRM-3006 has the ability to give you the results of individual emitters and also generate a total of all emitters. The SRM-3006 allows you to verify compliance with the US FCC 5% Rule, as well as accurately detect fields well below domestic and international standards. The Narda SRM-3006 also has the ability to measure fields more accurately than broadband test equipment, and perhaps more importantly, it is able to give the user more information than just the total emissions; you will know precisely what emitter or emitters are generating the most power.
At the time of this writing, there is no other measurement system in the world that provides all the information and accuracy as the Narda SRM-3006. The US version of the SRM3006 includes the basic unit, and a 2-axis, E-field antenna (27 MHz to 3 GHz and works down to 200 µV/m). The meter is essentially a Spectrum Analyzer which covers the 9 kHz to 6 GHz spectrum, which has been enhanced to also make accurate field strength measurements. The SRM-3006 can be used with any compatible antenna, but is optimized to work specifically with Narda's calibrated high-performance antennas.
The Narda SRM-3006 is portable, rugged, splash-proof, incorporates a very readable color display, GPS Receiver and microphone for voice editing, and includes the SRM-TS software package. Additional antennas are available.
Features of the Narda SRM-3006 include:
- Measurements conforming to ICNIRP and national standards with results displayed directly in terms of the permitted limit value
- Fast, reliable results using predefined measurement routines, setups, and automatic settings
- LTE and UMTS operating modes for evaluating pilot signal information and extrapolation to maximum exposure levels
- Scope mode for short term analysis of pulsed signals and long term recording of variable exposure levels
- Editable tables for automatic correlation of results with telecommunications services (e.g. broadcasting, GSM, WiMAX)
- Individual preparation of field campaigns with subsequent evaluation and handling of large quantities of measurement data
- Suitable for outdoor use: Radiation protected, robust, splash-proof, ergonomically designed; uses exchangeable rechargeable batteries; equipped with integrated GPS and voice recorder
Operating modes of the SRM-3006 include:
