Keysight (Agilent) M1971V
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 50 GHz à 75 GHz |
| Type de module | Module de détecteur de puissance harmonique (Waveguide) |
| Bande de fréquence | Bande V (50 GHz - 75 GHz) |
| Connecteur d'entrée | Connecteur guide d'ondes WR-15 |
| Compatibilité | Compatible avec les analyseurs de spectre et analyseurs de signal Keysight série PSA, ESA et MXA |
| Niveau de puissance d'entrée maximal | +20 dBm |
| Perte de conversion typique | Inférieure à 30 dB (typique) |
| Température de fonctionnement | 0 °C à +55 °C |
| Interface de connexion à l'analyseur | Câble de connexion Smart Harmonic Mixer (interface dédiée Keysight) |
| Numéro harmonique | Harmonique 8 (×8) |
Keysight (Agilent) M1971V Options:
- M1971V - 101 - 1 meter LO cable
- M1971V - 102 - 3 meter LO cable
- M1971V - 201 - 1.8 meter USB cable
- M1971V - 202 - 3 meter USB cable
- M1971V - 301 - Standard jackstand for mixer
| Model | M1971V |
|---|

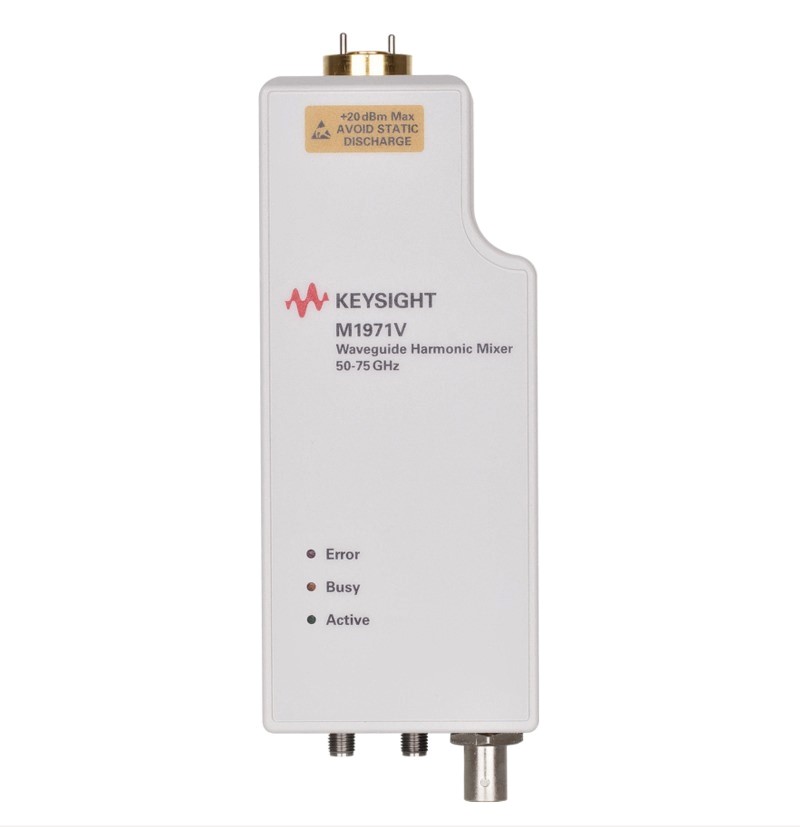

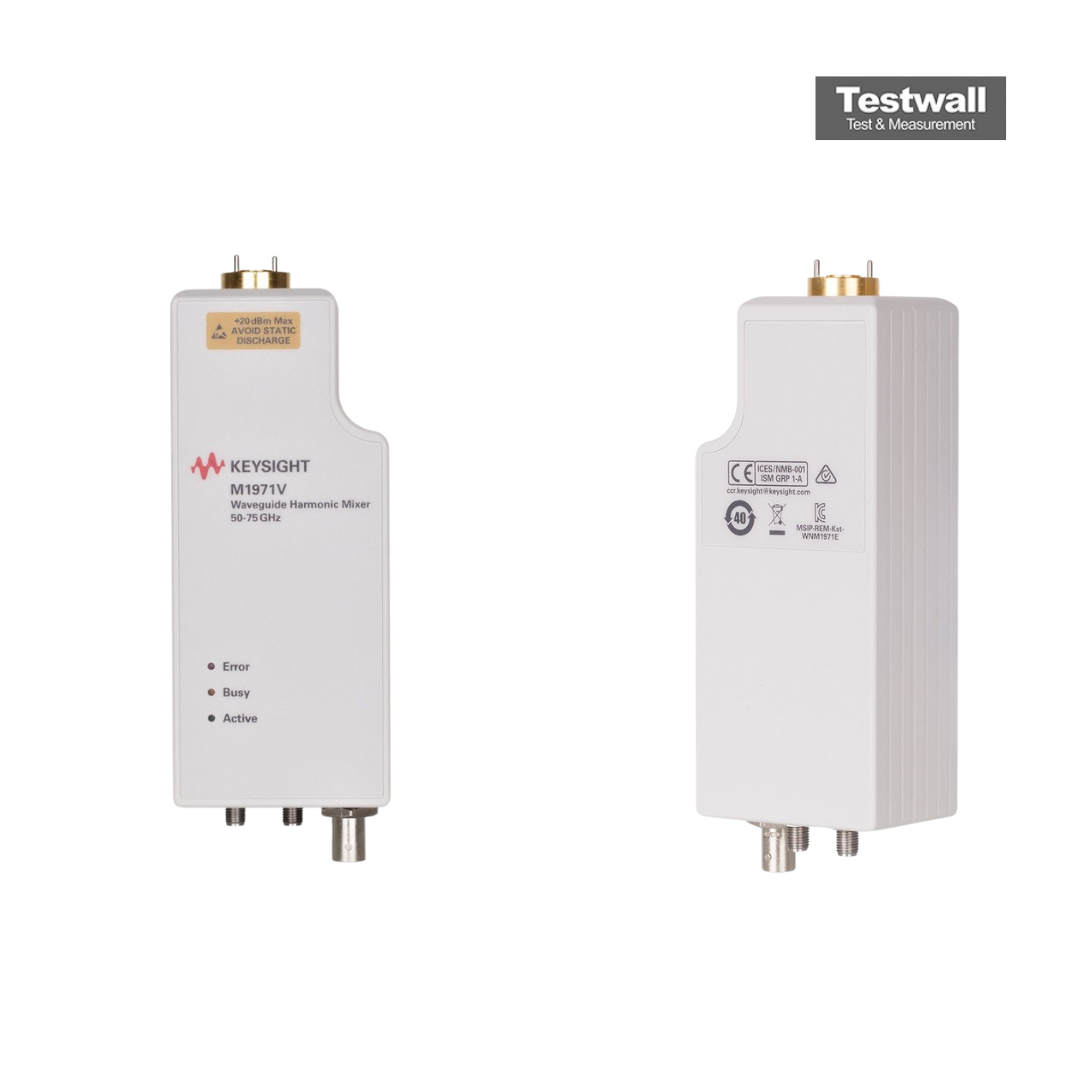

Keysight (Agilent) M1971V Waveguide Harmonic Mixer
The Keysight M1971V 50 to 75 GHz waveguide harmonic mixer is an un-preselected mixer that provides a complete solution for wideband millimeter-wave signal analysis of more than 2 GHz with X-Series signal analyzers. Embedded smart features help you to greatly simplify your overall test setup and improve the DANL and TOI of your test system. The M1971V works ideally for applications in the area of 5G design and development, WiGig/11ad, automotive radar and millimeter-wave microwave backhaul that require wideband millimeter-wave signal analysis of more than 2 GHz.
Embedded with smart features, the mixer provides fast and the most efficient test setup with measurement accuracy that's needed in the demanding mixer application test environment. The Keysight M1971V uses a simple USB plug-and-play connection that can automatically configure the X-series signal analyzers to detect the specific mixer connected, then download the conversion loss data and automatically compensate for the local oscillator path loss. Therefore, it greatly shortens the overall startup process and technically improves the overall DANL and TOI of your test systems with excellent conversions and amplitude accuracy.
Specifications for the Keysight (Agilent) M1971V Waveguide Harmonic Mixer Include:
| RF frequency range | 50 to 75 GHz |
| LO harmonic number | -4 and -6 |
| LO frequency range | 8 to 14 GHz |
| Calibration accuracy | +/- 2.2 dB |
