Keysight (Agilent)

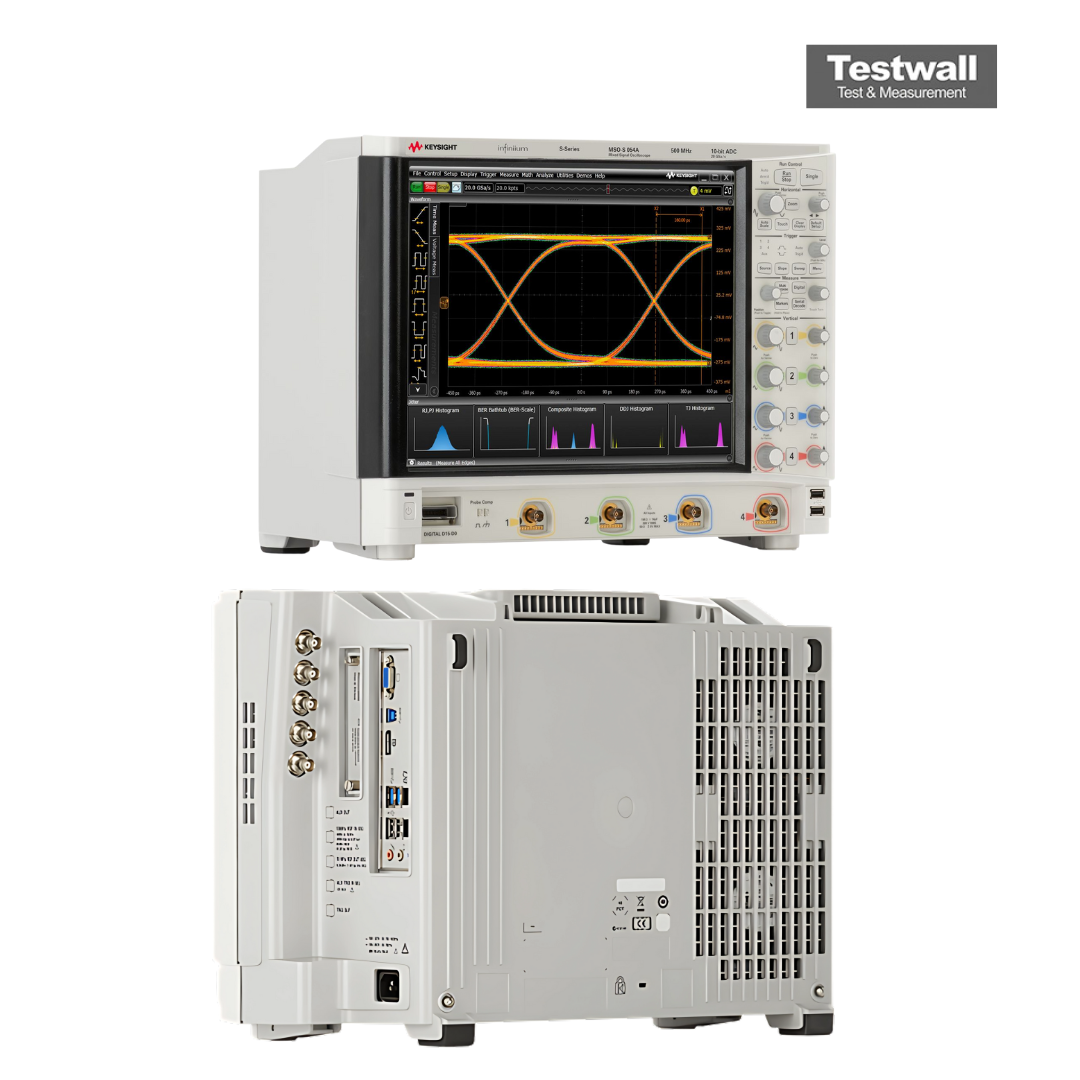

Keysight (Agilent) MSOS054A

500MHz 4 Channel 20GS/s Scope + 16 Logic Channels
500 MHz Largeur de bande
4 Nombre de voies analogiques
20 GSa/s Taux d'échantillonnage maximum
100 Mpts Mémoire par voie
8 bits (jusqu'à 12 bits en mode haute résolution) Résolution verticale
Attribut Valeur
Largeur de bande 500 MHz
Nombre de voies analogiques 4
Taux d'échantillonnage maximum 20 GSa/s
Mémoire par voie 100 Mpts
Résolution verticale 8 bits (jusqu'à 12 bits en mode haute résolution)
Profondeur d'affichage de la forme d'onde 1 000 000 formes d'onde par seconde
Taille de l'écran 15,3 pouces (écran tactile capacitif)
Voies numériques (MSO) 16 voies logiques
Plage de tension d'entrée 1 mV/div à 10 V/div
Interface de connectivité USB, LAN (LXI), GPIB (en option)
Keysight (Agilent) MSOS054A Options:
  • MSOS054A - DSOS000-200 - Memory upgrade to 200 Mpts (4 ch) / 400 Mpts (2 ch)
  • MSOS054A - DSOS000-400 - Memory upgrade to 400 Mpts (4 ch) / 800 Mpts (2 ch)
  • MSOS054A - DSOS001-DSA - DSA package (200 Mpts memory plus EZJit Complete)
  • MSOS054A - DSOS000-821 - Precision BNC to SMA adapters
  • MSOS054A - N2153A - Additional removable SSD
  • MSOS054A - N2902B - Rackmount kit
  • MSOS054A - D9010JITA - EZJit Complete jitter, vertical noise and phase noise analysis
  • MSOS054A - D9010SCNA - InfiniiScan zone trigger
  • MSOS054A - D9010DMBA - De-embedding (PrecisionProbe / InfiniiSim Basic)
  • MSOS054A - D9010ASIA - Advanced signal integrity (equalisation, crosstalk)
  • MSOS054A - D9010POWA - Power integrity analysis (rails, PSIJ, PMIC)
  • MSOS054A - D9010PAMA - PAM-N analysis
  • MSOS054A - D9010UDAA - User defined application (test automation)
  • MSOS054A - D9010LSSP - Low-speed serial trigger and decode (I2C, SPI, UART/RS232, JTAG, I2S, etc.)
  • MSOS054A - D9010EMBP - Embedded protocol decode (USB 2.0, 10/100 Ethernet, USB-PD)
  • MSOS054A - D9010AUTP - Automotive decode (CAN, CAN FD, LIN, FlexRay, SENT)
  • MSOS054A - D9020AUTP - 100BASE-T1 automotive Ethernet decode
  • MSOS054A - D9010MPLP - MIPI low-speed decode (RFFE, I3C, SPMI)
  • MSOS054A - D9010MILP - Military decode (MIL-STD-1553, ARINC 429, SpaceWire)
  • MSOS054A - D9010USBP - USB protocol decode
  • MSOS054A - D9010MPMP - MIPI M-PHY decode
  • MSOS054A - D9010PCIP - PCIe/SATA/SAS decode
  • MSOS054A - D9010BDLP - Protocol decode bundle
Formulaire d'étalonnage Keysight (Agilent) MSOS054A

Formulaire de réparation Keysight (Agilent) MSOS054A
Maximum file size: 40MB

L'oscilloscope Keysight (Agilent) MSOS054A offre une bande passante analogique de 500 MHz avec 4 canaux analogiques et 16 numériques, un taux d'échantillonnage maximal de 20 GSa/s. Sa mémoire de 100 Mpts/canal et une profondeur totale jusqu’à 800 Mpts garantissent une capture précise. Son écran tactile capacitif XGA de 15" et le convertisseur ADC 10 bits optimisent la fidélité du signal.

Le mode haute résolution fournit jusqu’à 16 bits de résolution verticale, idéal pour l’analyse fine des signaux et les tests logiques.

Testwall peut fournir l’oscilloscope Keysight (Agilent) MSOS054A d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit une instrumentation performante, fiable et de qualité. Contactez-nous directement pour la calibration ou la réparation du Keysight (Agilent) MSOS054A.
