Keysight (Agilent)

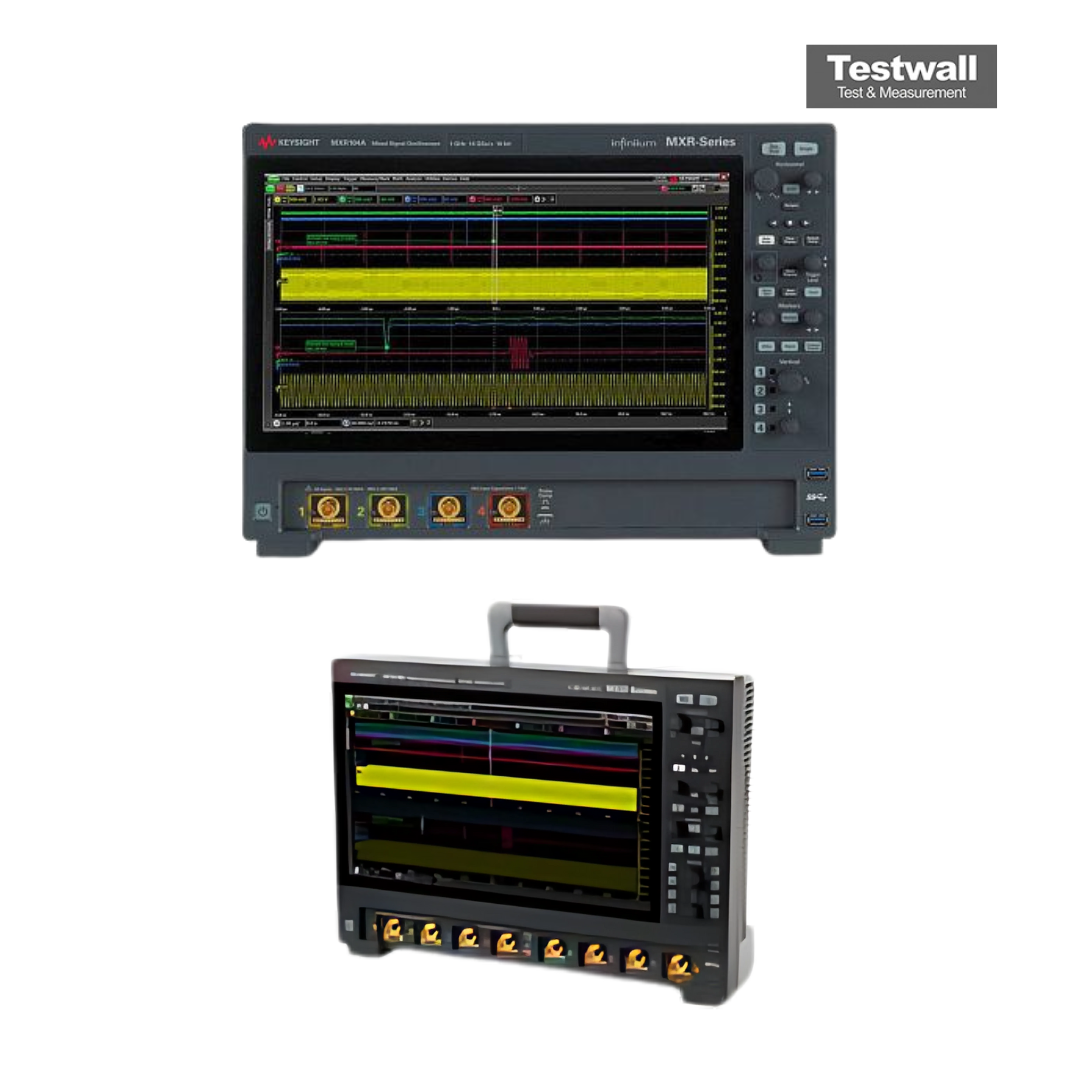

Keysight (Agilent) MXR104A
1GHz 4 Channel 16GS/s Digital Oscilloscope
1 GHz Largeur de bande
4 voies Nombre de voies
16 GSa/s Taux d'échantillonnage
800 Mpts (standard), jusqu'à 2 Gpts (optionnel) Profondeur mémoire
8 bits (jusqu'à 12 bits en mode haute résolution) Résolution verticale
| Attribut | Valeur |
|---|---|
| Largeur de bande | 1 GHz |
| Nombre de voies | 4 voies |
| Taux d'échantillonnage | 16 GSa/s |
| Profondeur mémoire | 800 Mpts (standard), jusqu'à 2 Gpts (optionnel) |
| Résolution verticale | 8 bits (jusqu'à 12 bits en mode haute résolution) |
| Plage de tension d'entrée | 1 mV/div à 10 V/div |
| Impédance d'entrée | 50 Ω ou 1 MΩ |
| Taille de l'écran | 15,6 pouces (écran tactile capacitif HD) |
| Base de temps | 5 ps/div à 200 s/div |
| Interfaces de connectivité | USB, LAN (LXI), GPIB (optionnel) |
| Model | MXR104A |
|---|
Keysight (Agilent) MXR104A 1GHz 4 Channel 16GS/s Digital Oscilloscope Description: 1 GHz Bandwidth 4 Analog Channels 16 Digital Channels Vertical Resolution: 10 bits (up to 16 Bits with high resolution) 16 GSa/s Maximum Sample Rate 200 Mpts/channel of Standard Memory Integrated 4-digit DVM & 10-digit counter The Keysight MXR104A is a 4 Channel 1GHz Analog Bandwidth Infiniium MXR-Series oscilloscope with a maximum sample rate of 16GSa/s. The MXR104A features a 15.6闁艰鲸绮忛崜楣冩 full HD touch screen display with dual screen support. The Infiniium MXR-Series offers up to 6 GHz bandwidth and 16 GSa/s sample rate on each channel (four and eight channel versions are available). An integrated 4 digit DVM and 10 digit counter are installed as standard. Retrofittable options are available to extend the capabilites of the MXR104A even further, including: - Increase analog bandwidth to 6GHz - Increase analog channels to 8 - Add 1.6Gpts / channel 闁艰鲸绮忛崜鍓ф尒鐎涘窅exible闁艰鲸绮忛崜鐐▕ Memory - Add Real Time Spectrum Analyzer - Extend RF Frequency to 6GHz - Add 50MHz Waveform Generator - Add 16 Digital Channels
