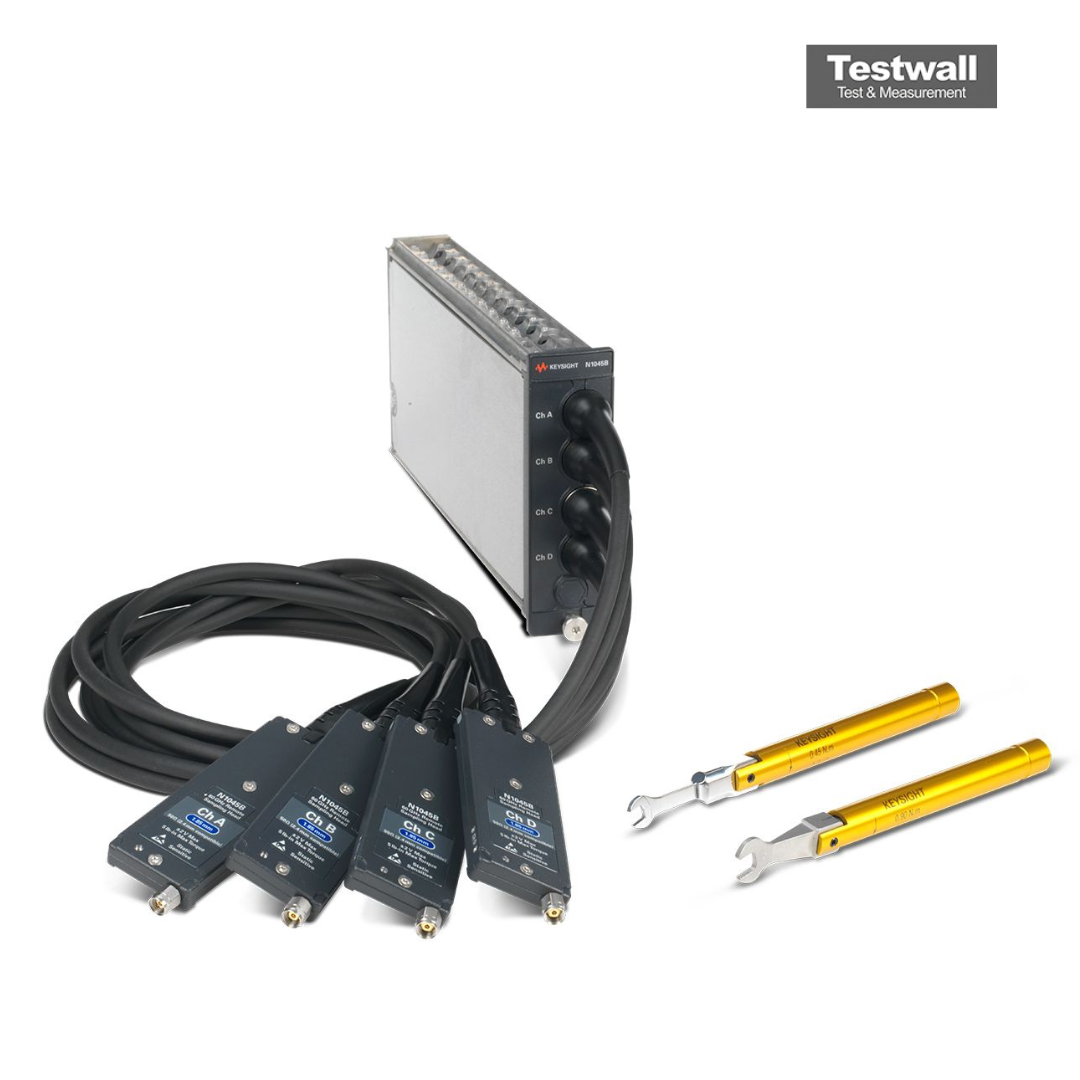

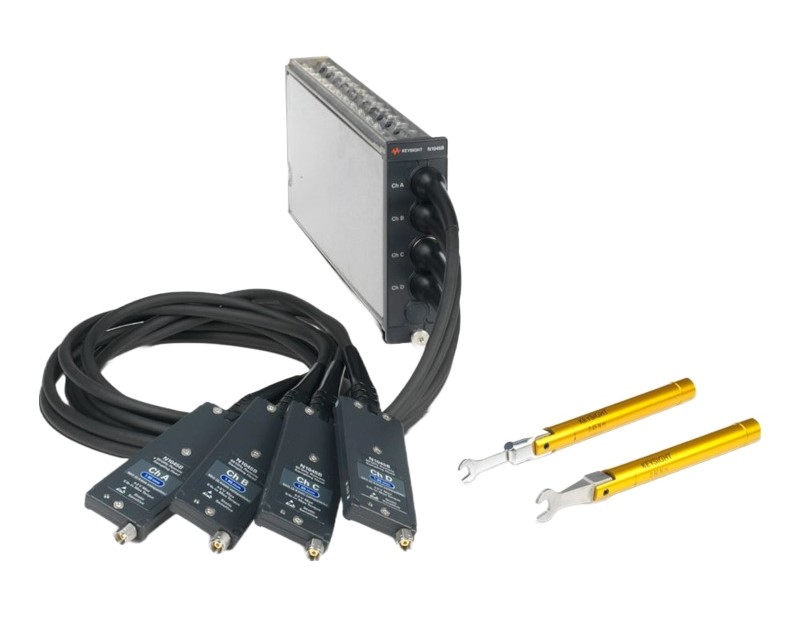

Keysight (Agilent) N1045B
60 GHz 2 or 4-Port Electrical Remote Sampling Head
jusqu'à 50 GHz Largeur de bande
2 ports Nombre de ports
2,4 mm (compatible SMA) Type de connecteur
50 Ohms Impédance caractéristique
1 mètre Longueur du câble
| Attribut | Valeur |
|---|---|
| Largeur de bande | jusqu'à 50 GHz |
| Nombre de ports | 2 ports |
| Type de connecteur | 2,4 mm (compatible SMA) |
| Impédance caractéristique | 50 Ohms |
| Longueur du câble | 1 mètre |
| Perte d'insertion maximale | ≤ 10 dB à 50 GHz |
| Réflexion (VSWR) | ≤ 1,5:1 jusqu'à 50 GHz |
| Plage de température de fonctionnement | 0 °C à +55 °C |
| Application principale | Câble de démultiplexage différentiel pour oscilloscopes haute fréquence |
| Compatibilité | Compatible avec les oscilloscopes Keysight série Infiniium |
Keysight (Agilent) N1045B Options:
- N1045B - 02F - 2 channel remote head, 1.85mm, female inputs
- N1045B - 02M - 2 channel remote head, 1.85mm, male inputs
- N1045B - 04F - 4 channel remote head, 1.85mm, female inputs
- N1045B - 04M - 4 channel remote head, 1.85mm, male inputs
- N1045B - C0C - Certificate of calibration
- N1045B - UK6 - Commercial calibration certificate with test data
- N1027A - 45A - Accessory kit for two N1045A/N1045B channels
| Model | N1045B |
|---|
Keysight (Agilent) N1060A Precision Waveform Analyzer
The N1045B 60 GHz remote sampling head module is engineered to provide superior measurement accuracy with the highest throughput for testing multi-lane electrical designs. The remote head design allows the high-bandwidth sampler to be located very near the device under test which minimizes loss due to cabling.
€¢ 60 GHz bandwidth (65 GHz typical)
€¢ Independent skew control on each sampler
€¢ 2 to 16 electrical channels per mainframe
€¢ Simultaneous data acquisition on all channels
€¢ Maximum sampling rate:
€¢ In 86100D mainframe: 40 kSa/s
€¢ In N1000A mainframe: 250 kSa/s
Specifications for the Keysight (Agilent) N1060A Precision Waveform Analyzer Include:
| Bandwidth | 60 GHz (65 GHz typ.) |
| Channels per Module | 2 or 4 (selectable) |
| Min SIRC Freq | 10 GHz |
| Max SIRC Freq | 70 GHz |
