Keysight (Agilent)

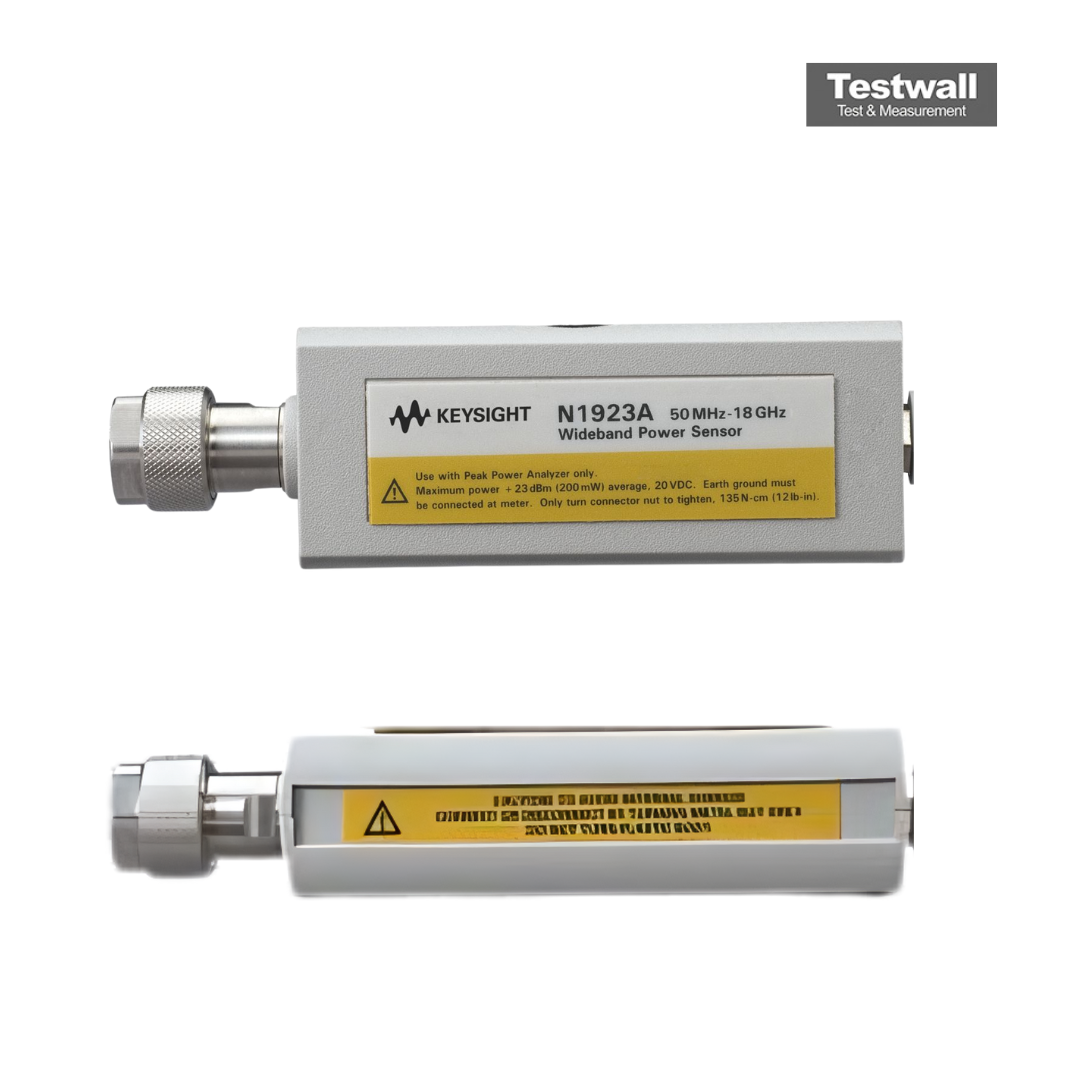

Keysight (Agilent) N1923A
Wideband Peak Power Sensor, 50 MHz to 18 GHz
50 MHz à 18 GHz Gamme de fréquences
-35 à +20 dBm Plage de puissance
≤3 ns (≥500 MHz) Temps de montée
type N mâle Connecteur
8990B Wattmètres compatibles
| Attribut | Valeur |
|---|---|
| Gamme de fréquences | 50 MHz à 18 GHz |
| Plage de puissance | -35 à +20 dBm |
| Temps de montée | ≤3 ns (≥500 MHz) |
| Connecteur | type N mâle |
| Wattmètres compatibles | 8990B |
| Type de capteur | crête et moyenne (diode), large bande |
| Puissance maximale | +23 dBm moyenne, +30 dBm crête (<1 µs) |
| TOS | 1,2 max. à 50 MHz à 10 GHz, 1,26 max. à 10 à 18 GHz |
| Dimensions (L × H × P) | 40 × 27 × 135 mm |
| Poids | 0,4 kg (1,5 m câble), 0,6 kg (3 m câble) |
Wattmètres compatibles
Keysight (Agilent) N1923A Options:
- N1923A - 105 - Fixed cable option length, 1.5 m (5 ft)
- N1923A - 106 - Fixed cable option length, 3 m (10 ft)
- N1923A - 1A7 - Certificate of compliance calibration - ISO 17025 with test data; printed
- N1923A - A6J - Certificate of compliance calibration - ANSI Z540 with test data; printed
- N1923A - ABJ - Japan, Japanese user guide, printed
- N1923A - 0B1 - English language user guide, printed
- N1923A - 0BN - English language service guide, printed
RENT KEYSIGHT N1923A (Agilent) Power Sensor (call for availability)
The Keysight N1923A Wideband Power Sensor provides internal zero and calibration by uniquely integrating a DC reference source and switching circuits into the power sensor. This feature eliminates the multiple connections associated with using an external calibration source, thus minimizing connector wear, test-time and measurement uncertainty.
Features and Specifications of the Keysight N1923A (Agilent) Power Sensor include:
- Zero and calibrate while connected to the DUT
- Wide Dynamic Range for peak power measurements: -35 dBm to +20 dBm
- Calibration factors, linearity, temperature and bandwidth correction data stored in EEPROM
- Precision N-type connector as standard

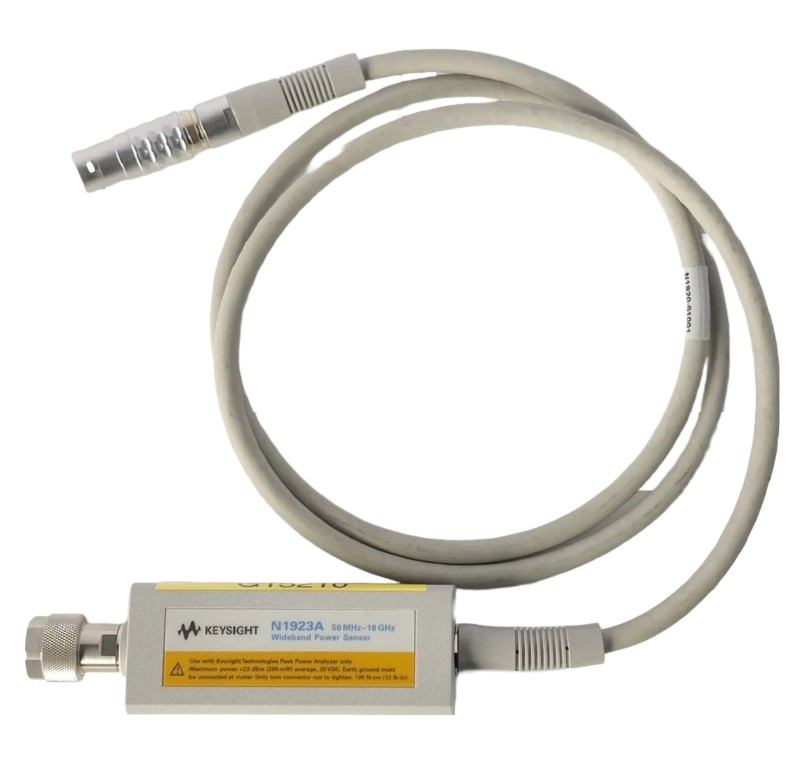

- Sensor Cable:
- Fixed to sensor
- Available cable lengths:
- 1.5m (5ft)
- 3m (10ft)
