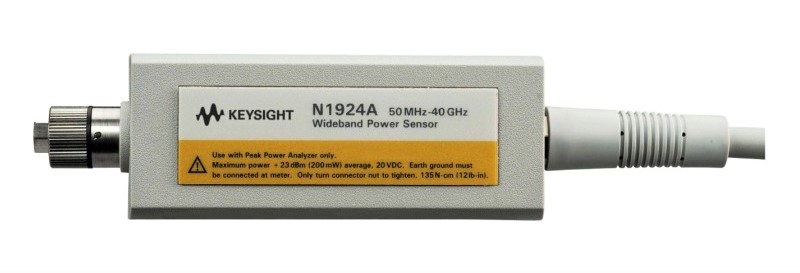

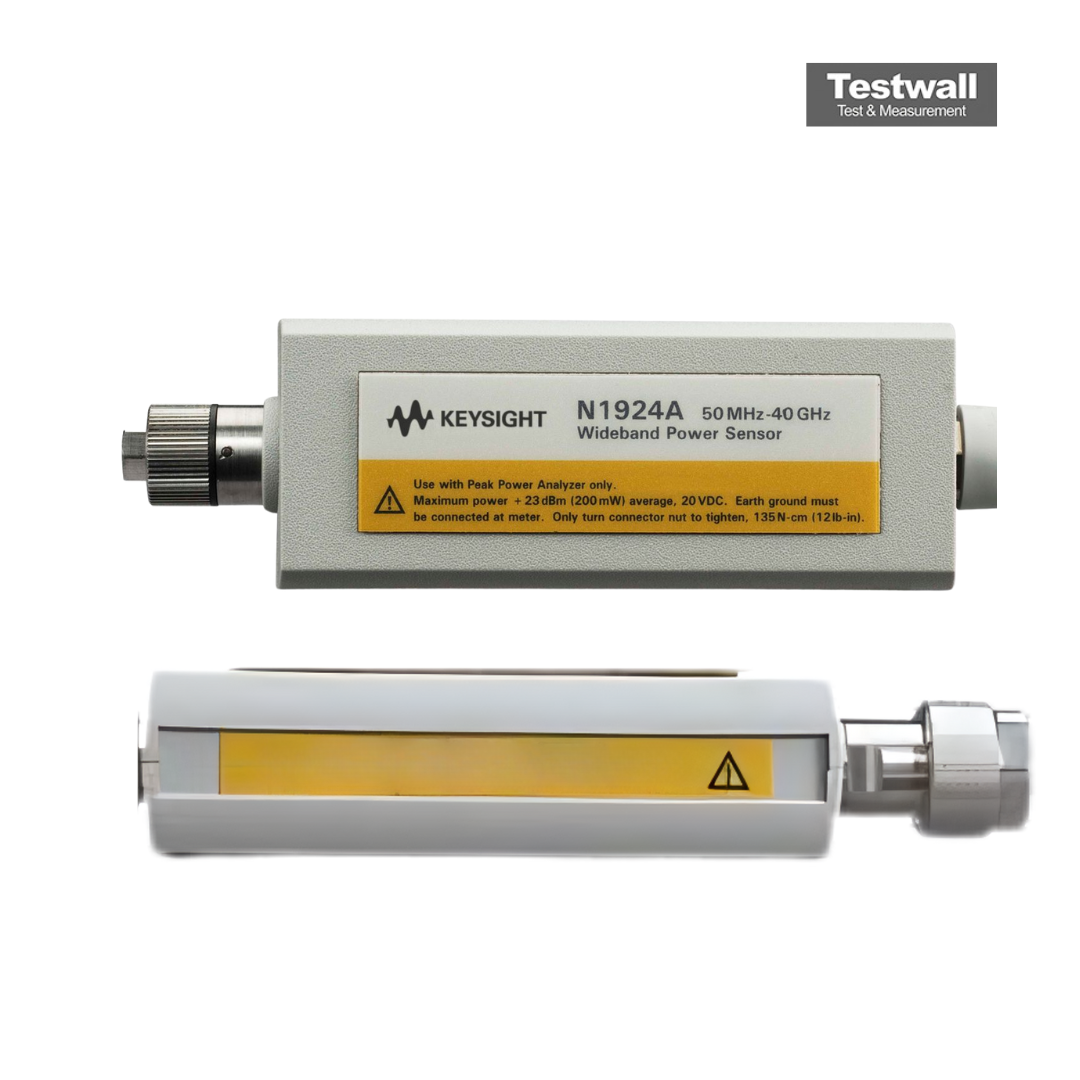

Keysight (Agilent) N1924A
Wideband Peak Power Sensor, 50 MHz to 40 GHz
50 MHz à 18 GHz Plage de fréquence
-70 dBm à +20 dBm Plage de puissance mesurable
Capteur de puissance à diode large bande Type de capteur
50 Ohms Impédance d'entrée
Type N (mâle) Connecteur d'entrée
| Attribut | Valeur |
|---|---|
| Plage de fréquence | 50 MHz à 18 GHz |
| Plage de puissance mesurable | -70 dBm à +20 dBm |
| Type de capteur | Capteur de puissance à diode large bande |
| Impédance d'entrée | 50 Ohms |
| Connecteur d'entrée | Type N (mâle) |
| Incertitude de mesure | ± 0,9 dB (typique) |
| Temps de réponse | Inférieur à 200 µs |
| Compatibilité | Compatible avec les wattmètres Keysight séries N1911A/N1912A et E4418B/E4419B |
| Puissance maximale admissible | 200 mW (23 dBm) en continu |
| Température de fonctionnement | 0 °C à 55 °C |
Keysight (Agilent) N1924A Options:
- N1924A - 105 - Fixed cable option length, 1.5 m (5 ft)
- N1924A - 106 - Fixed cable option length, 3 m (10 ft)
- N1924A - 1A7 - Certificate of compliance calibration - ISO 17025 with test data; printed
- N1924A - A6J - Certificate of compliance calibration - ANSI Z540 with test data; printed
- N1924A - ABJ - Japan, Japanese user guide, printed
- N1924A - 0B1 - English language user guide, printed
- N1924A - 0BN - English language service guide, printed
| Model | N1924A |
|---|
RENT KEYSIGHT N1924A (Agilent) Power Sensor (call for availability)
The Keysight N1924A Wideband Power Sensor provides internal zero and calibration by uniquely integrating a DC reference source and switching circuits into the power sensor. This feature eliminates the multiple connections associated with using an external calibration source, thus minimizing connector wear, test-time and measurement uncertainty.
Features and Specifications of the Keysight N1924A (Agilent) Power Sensor include:
- Zero and calibrate while connected to the DUT
- Wide Dynamic Range for peak power measurements: -35 dBm to +20 dBm
- Calibration factors, linearity, temperature and bandwidth correction data stored in EEPROM
- Precision N-type connector as standard
- Sensor Cable:
- Fixed to sensor
- Available cable lengths:
- 1.5m (5ft)
- 3m (10ft)
