Keysight (Agilent) N2804A
| Attribut | Valeur |
|---|---|
| Type de sonde | Sonde de courant à effet Hall |
| Plage de mesure de courant | DC à 30 A (crête) |
| Bande passante | DC à 100 kHz |
| Sensibilité | 100 mV/A |
| Diamètre de l'ouverture du conducteur | 11 mm |
| Impédance de sortie | 50 Ω |
| Tension d'alimentation requise | ±15 V (via module d'alimentation N2779A) |
| Température de fonctionnement | 0 °C à 55 °C |
| Connecteur de sortie | BNC |
| Compatibilité | Oscilloscopes Keysight / Agilent compatibles avec sondes de courant standard |
Keysight (Agilent) N2804A Options:
- N2804A - N2816A - Probe tip accessory kit for N2804A including 2 each alligator clips, 2 each pincer clips, and 1 extension leads (30 cm)
- N2804A - N2817A - Probe tip accessory kit for N2805A including 2 each alligator clips, 2 each hook clips, 2 each pincer clips, and 2 each browser tips
- N2804A - N7014A - Banana-to-socketed adapters (1 pair) for N2805A for connecting to 0.025" square pins (headers)
| Model | N2804A |
|---|

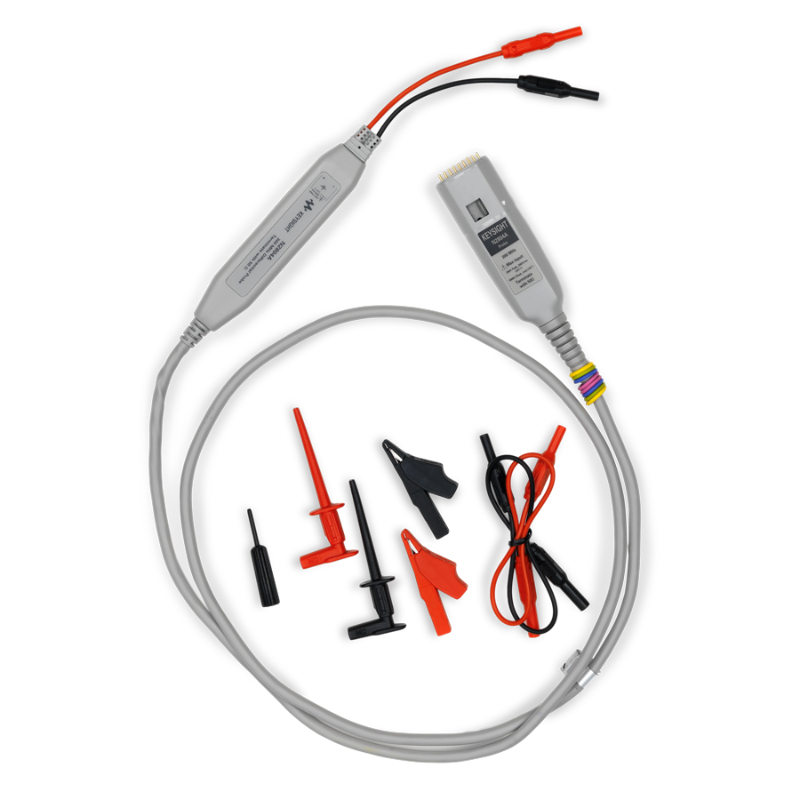

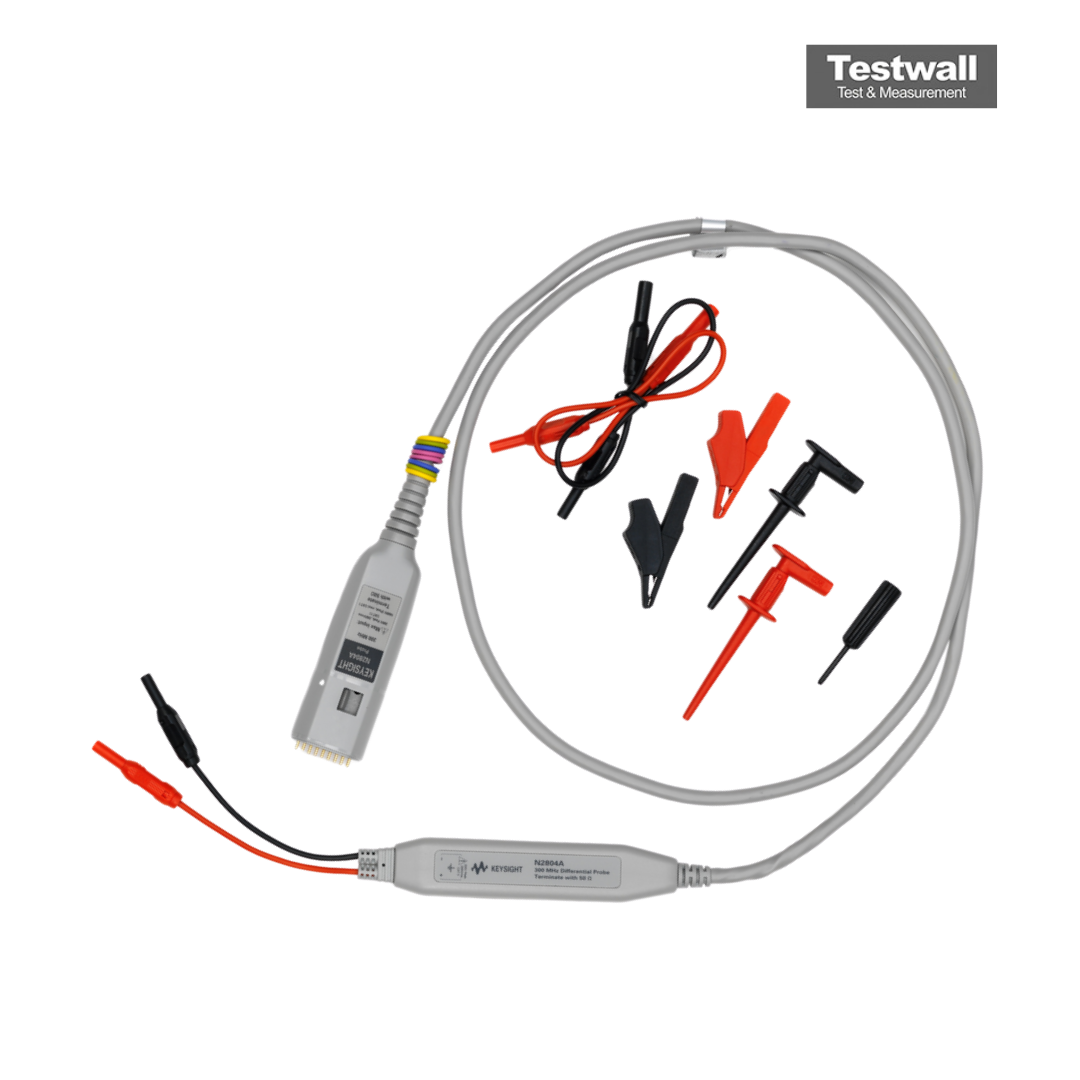

KEYSIGHT/AGILENT N2804A High Voltage Differential Probe
The Keysight (Agilent) N2804A High Voltage Differential Probe provides superior general-purpose differential signal measurements that are required for high-speed power measurements such as measuring characteristics of switching power devices, DC-DC converters or class D amplifiers, vehicle bus measurements, and high-speed digital system designs. Both probes are powered by the oscilloscope's AutoProbe interface. Because of outstanding common mode rejection ratio of the probe across the full frequency ranges, N2804A allows measurement of small differential signal in the presence of much larger common mode signals typically found in power measurements.
The N2804A High Voltage Differential Probe offers 100:1 attenuation ratio, allowing it to be used adequately for high voltage signal measurements. Powered by the oscilloscope's AutoProbe interface, N2804A differential probe has a differential input resistance of 4 M? and low input capacitance of 4 pF to minimize circuit loading. The Keysight (Agilent) N2804A High Voltage Differential Probe comes with a pair of extension leads (30 cm long) with a damping resistor built in to damp out the in-band resonance and provide flat frequency response even while using the extension leads and probe tip accessories.
Specifications for the KEYSIGHT/AGILENT N2804A High Voltage Differential Prob Include:
| Bandwidth | 300 MHz |
| Max differential operating voltage | ± 300 V (DC+ peak AC) and ± 200 Vrms |
| Rise time | 1.167 ns |
| DC gain accuracy | ± 1% |
