Keysight (Agilent)

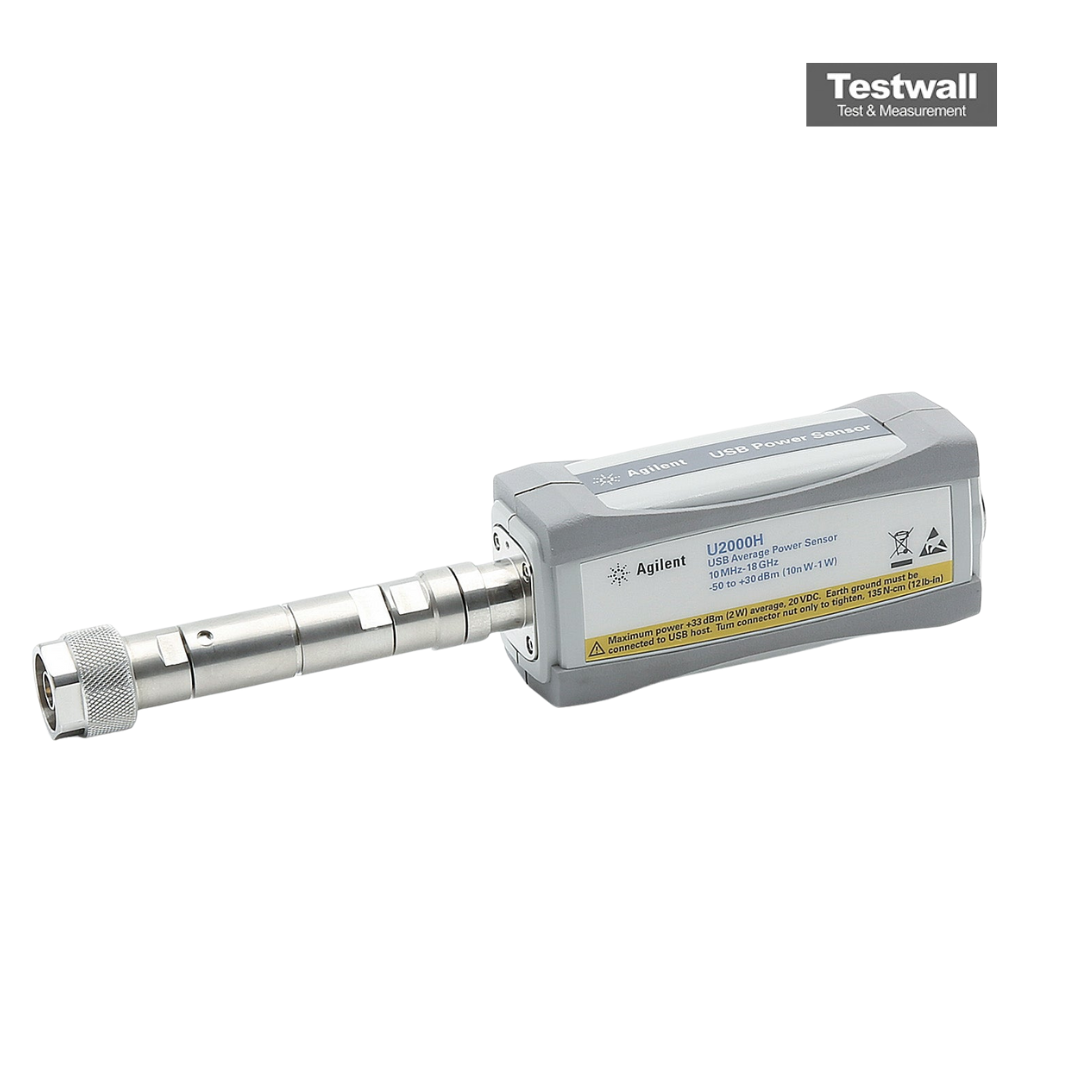

Keysight (Agilent) U2000H
USB Power Sensor, 10 MHz to 18 GHz, -50 dBm to +30 dBm
10 MHz à 18 GHz Plage de fréquences
-60 dBm à +20 dBm Plage de puissance mesurable
Capteur de puissance USB à diode Type de capteur
50 Ohms Impédance d'entrée
Type N (mâle) Connecteur d'entrée
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 10 MHz à 18 GHz |
| Plage de puissance mesurable | -60 dBm à +20 dBm |
| Type de capteur | Capteur de puissance USB à diode |
| Impédance d'entrée | 50 Ohms |
| Connecteur d'entrée | Type N (mâle) |
| Interface de communication | USB 2.0 |
| Temps de mesure | Jusqu'à 200 mesures par seconde |
| Précision de mesure | ± 0,5 dB (typique) |
| Puissance maximale admissible | 200 mW (23 dBm) en continu |
| Alimentation | Alimenté par port USB (bus USB) |
Keysight (Agilent) U2000H Options:
- U2000H - 1A7 - ISO 17025 calibration with test data
- U2000H - A6J - ANSI Z540 calibration with test data
- U2000H - R-51B-001-5Z - Warranty Assurance Plan - Return to Keysight - 5 years
- U2000H - OB1 - English language Operating and Service Guide
- U2000H - ABD - German language Operating and Service Guide
- U2000H - ABE - Spanish language Operating and Service Guide
- U2000H - ABF - French language Operating and Service Guide
- U2000H - ABJ - Japanese language Operating and Service Guide
- U2000H - ABZ - Italian language Operating and Service Guide
- U2000H - AB2 - Simplified Chinese language Operating and Service Guide
| Model | U2000H |
|---|
The Keysight U2000H (Agilent) USB Power Sensor makes setup and measurement fast without the need of a power meter, just plug the USB sensor cable to the PC, you can control the USB power sensor with the FREE Power Panel (N1918A) software.
Features and Specifications of the Keysight U2000B USB Power Sensor include:
- Frequency range of 10 MHz to 18 GHz
- Wide dynamic range (-50dBm to +30 dBm)
- Internal zeroing while connected to the DUT
- High measurement speed of up to 250readings/second
- Support internal and external trigger measurements
- Display power measurements on a PC without the need of power meter
- Compatible with other Agilent instruments
- Internal triggering and trace display capability
