Keysight (Agilent)

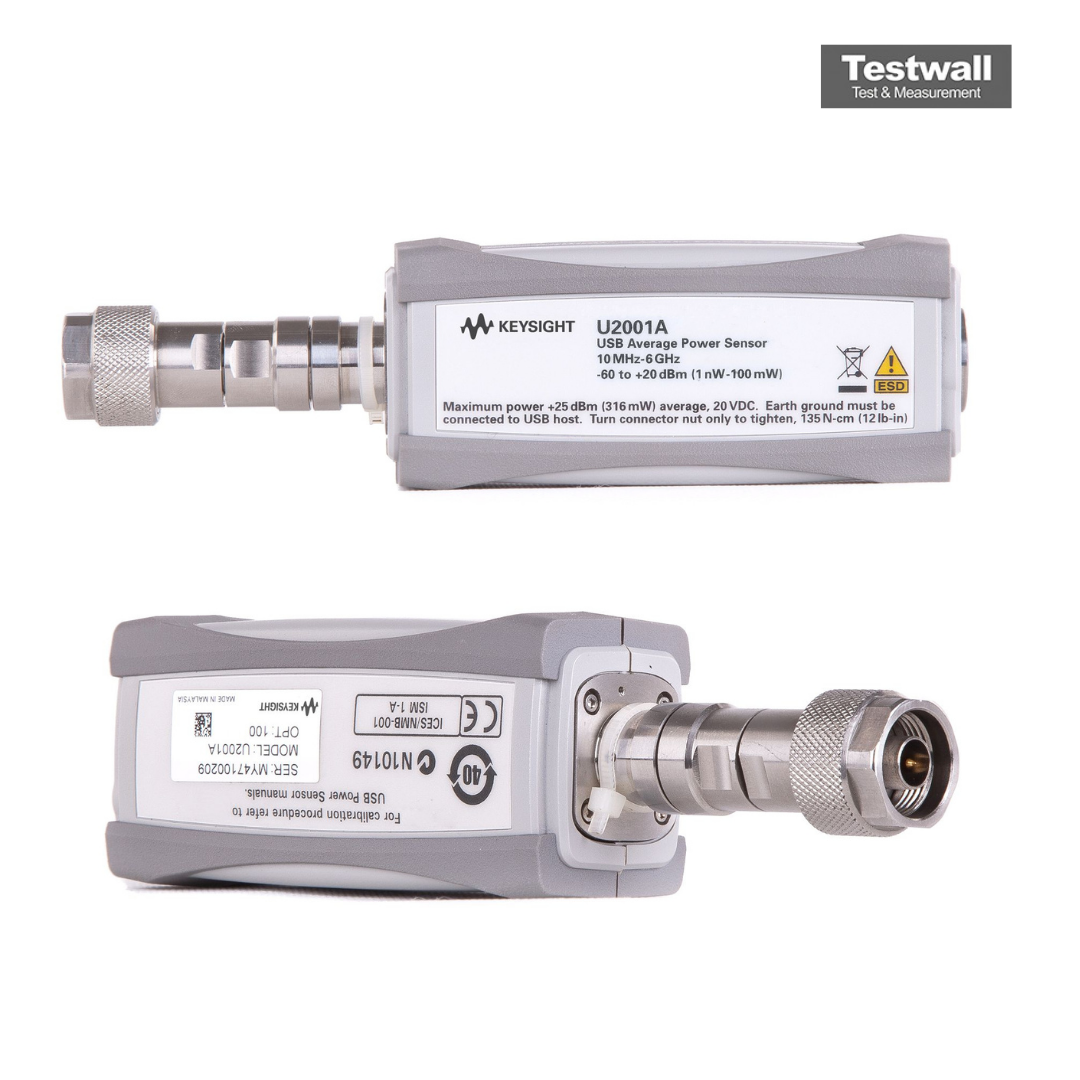

Keysight (Agilent) U2001A
USB Power Sensor, 10 MHz to 6 GHz, -60 to +25 dBm
10 MHz à 6 GHz Gamme de fréquences
-60 à +20 dBm Plage de puissance
1,13 à 1,19 max. TOS
type N mâle Connecteur
USB 2,0 Interfaces
| Attribut | Valeur |
|---|---|
| Gamme de fréquences | 10 MHz à 6 GHz |
| Plage de puissance | -60 à +20 dBm |
| TOS | 1,13 à 1,19 max. |
| Connecteur | type N mâle |
| Interfaces | USB 2,0 |
| Type de capteur | USB moyenne puissance capteur (diode) |
| Puissance maximale | +25 dBm moyenne, +33 dBm crête (<10 µs) |
| Vitesse de mesure | jusqu’à 110 mesures/s (fast), 1000 mesures/s (buffered) |
| Wattmètres compatibles | autonome via PC (BenchVue); N9340A/B, MXG, PNA/PNA-L/PNA-X |
| Dimensions (L × H × P) | 46 × 35,9 × 163,75 mm |
| Poids | 0,262 kg |
Wattmètres compatibles
Keysight (Agilent) U2001A Options:
- U2001A - H03 - U2001A sensor with extended frequency range, 3 MHz to 6 GHz
- U2001A - H16 - With 1K ohms input trigger impedance (higher impedance typically required when several instruments' input trigger ports are connected in parallel for triggering purpose; standard option has 50 ohms input trigger impedance)
- U2001A - H25 - U2001A sensor with extended power range, –60 dBm to +25 dBm
- U2001A - 1A7 - ISO 17025 calibration with test data
- U2001A - A6J - ANSI Z540 calibration with test data
- U2001A - R-51B-001-5Z - Warranty Assurance Plan - Return to Keysight - 5 years
- U2001A - OB1 - English language Operating and Service Guide
- U2001A - ABD - German language Operating and Service Guide
- U2001A - ABE - Spanish language Operating and Service Guide
- U2001A - ABF - French language Operating and Service Guide
- U2001A - ABJ - Japanese language Operating and Service Guide
- U2001A - ABZ - Italian language Operating and Service Guide
- U2001A - AB2 - Simplified Chinese language Operating and Service Guide
The Keysight U2001A (Agilent) USB Power Sensor makes setup and measurement fast without the need of a power meter, just plug the USB sensor cable to the PC, you can control the USB power sensor with the FREE Power Panel (N1918A) software.
Features and Specifications of the Keysight U2001A USB Power Sensor include:
- Frequency range of 10 MHz to 6 GHz
- Wide dynamic range of -60 to +20 dBm
- Internal zeroing capability to eliminate external calibration
- High measurement speed of up to 250readings/second
- Support internal and external trigger measurements
- Display power measurements on a PC or other Agilent's instruments
- Internal triggering and trace display capability
