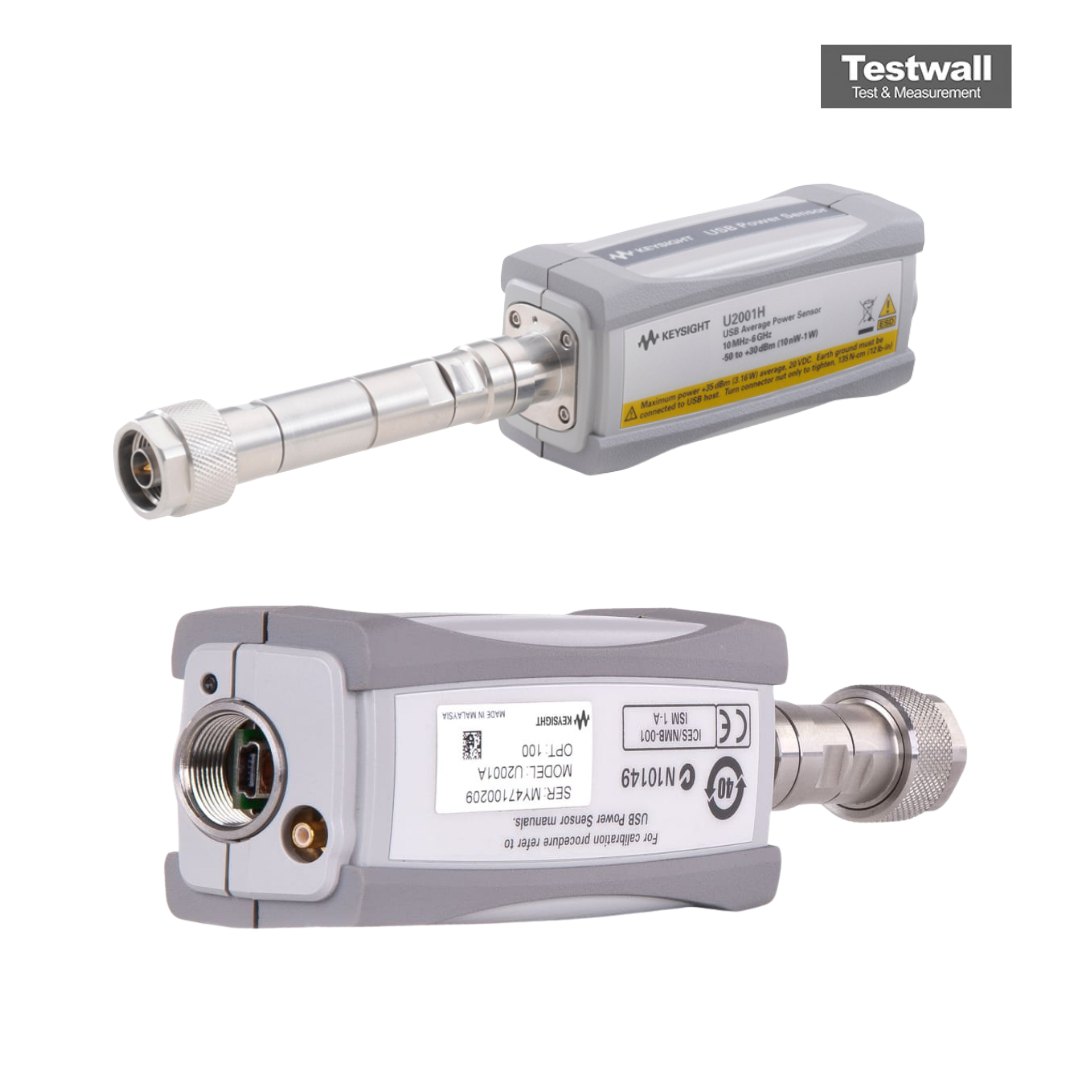

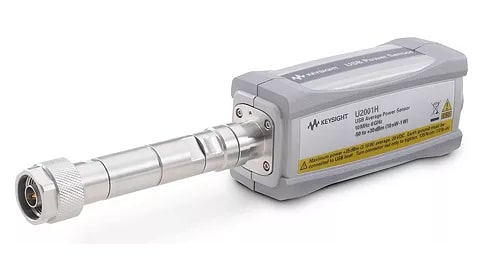

Keysight (Agilent) U2001H
USB Power Sensor, 10 MHz to 6 GHz, -50 dBm to +30 dBm
10 MHz à 18 GHz Plage de fréquences
-60 dBm à +20 dBm Plage de puissance
Type N (mâle) Connecteur d'entrée
50 Ohms Impédance d'entrée
USB 2.0 Interface de communication
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 10 MHz à 18 GHz |
| Plage de puissance | -60 dBm à +20 dBm |
| Connecteur d'entrée | Type N (mâle) |
| Impédance d'entrée | 50 Ohms |
| Interface de communication | USB 2.0 |
| Temps de mesure | 200 µs (mode rapide) |
| Incertitude de mesure | ± 0,5 dB (typique) |
| Puissance maximale d'entrée | +25 dBm (continu) |
| Alimentation | Via port USB (bus USB) |
| Température de fonctionnement | 0 °C à 55 °C |
Keysight (Agilent) U2001H Options:
- U2001H - 1A7 - ISO 17025 calibration with test data
- U2001H - A6J - ANSI Z540 calibration with test data
- U2001H - R-51B-001-5Z - Warranty Assurance Plan - Return to Keysight - 5 years
- U2001H - OB1 - English language Operating and Service Guide
- U2001H - ABD - German language Operating and Service Guide
- U2001H - ABE - Spanish language Operating and Service Guide
- U2001H - ABF - French language Operating and Service Guide
- U2001H - ABJ - Japanese language Operating and Service Guide
- U2001H - ABZ - Italian language Operating and Service Guide
- U2001H - AB2 - Simplified Chinese language Operating and Service Guide
| Model | U2001H |
|---|
Keysight U20001H
The Keysight/Agilent U2001H USB Power Sensor makes setup and measurement fast without the need of a power meter, just plug the USB sensor cable to the PC, you can control the USB power sensor with the FREE Power Panel (N1918A) software.
Features and Specifications for this Agilent U2001H USB Power Sensor include:
- Frequency range of 10 MHz to 6 GHz
- Wide dynamic range (-50 dBm to +30 dBm)
- Internal zeroing while connected to the DUT
- High measurement speed of up to 250readings/second
- Support internal and external trigger measurements
- Display power measurements on a PC without the need of power meter
- Compatible with other Keysight/Agilent instruments
- Internal triggering and trace display capability
