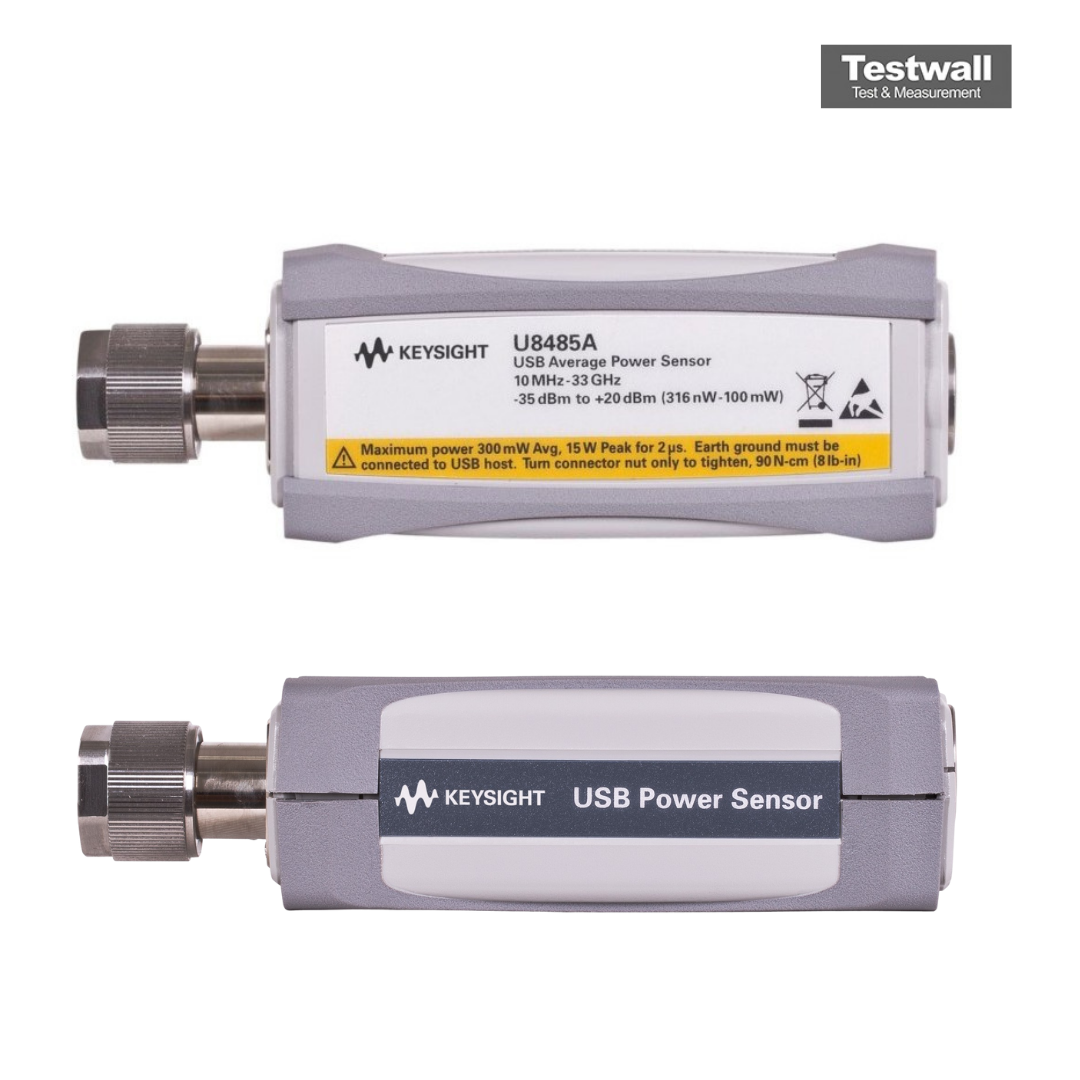

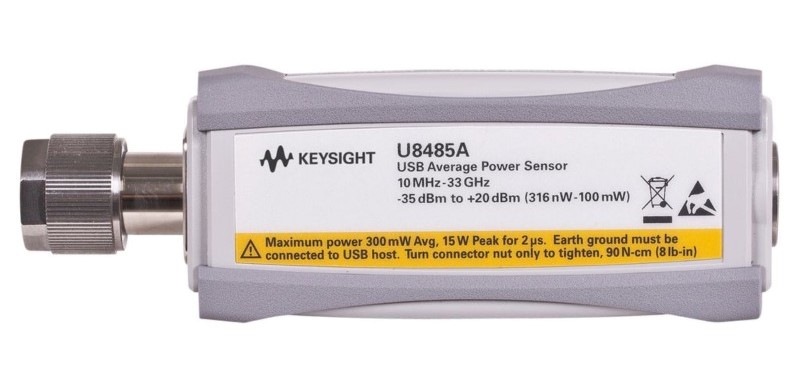

Keysight (Agilent) U8485A
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 100 kHz à 33 GHz |
| Plage de puissance | -70 dBm à +20 dBm |
| Type de capteur | Capteur de puissance USB à diode |
| Connecteur RF | 2,4 mm (mâle) |
| Interface de communication | USB 2.0 |
| Impédance | 50 Ohms |
| Incertitude de mesure | ±0,5 dB (typique) |
| Puissance maximale d'entrée | 200 mW (23 dBm) |
| Température de fonctionnement | 0 °C à 55 °C |
| Alimentation électrique | Alimenté par bus USB (aucune alimentation externe requise) |
Keysight (Agilent) U8485A Options:
- U8485A - 100 - Standard option – 10 MHz to 33 GHz
- U8485A - 200 - DC coupled option – DC to 33 GHz
| Model | U8485A |
|---|
Keysight (Agilent) U8485A Thermocouple Power Sensor
The Keysight Technologies U8485A USB thermocouple power sensors come with a measurement speed of 900 readings/second and power linearity of less than 0.8%, providing high accuracy and stability to help you make average power measurements quickly and confidently. Synchronize your measurement capture with the built-in trigger in function, without the need of an external module. The Keysight U8485A plugs directly into your PC or USB-enabled Keysight instrument and gives you the capability to measure power without needing an external power meter or power supply. The sensors draw power directly from a USB port and do not need additional triggering modules to operate.
The Keysight U8485A power sensor is supported by the Keysight BenchVue software and BV0007B power meter/sensor control and analysis app. The U8485A USB thermocouple power sensors now compute this value in real time and at any given point, removing the need for manual MU calculations, shortening test time and providing highly accurate measurements. The U8485A, like all other Keysight USB power sensors, can be used as an accessory for other Keysight instruments, allowing these instruments to perform specific power measurement applications without needing to connect to a PC or laptop.
Specifications for the Keysight (Agilent) U8485A Thermocouple Power Sensor Include:
| Frequency Range | DC/10 MHz to 33 GHz |
| Dynamic Range | -35 dBm to +20 dBm |
| power linearity | < 0.8% |
| Internal calibration duration | 1.5 s |
