Keysight (Agilent) U8488A
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 50 MHz à 33 GHz |
| Plage de puissance mesurable | -35 dBm à +20 dBm |
| Type de capteur | Capteur de puissance diode USB |
| Connecteur RF | 2,92 mm (mâle) |
| Interface de communication | USB 2.0 |
| Incertitude de mesure | ±0,5 dB (typique) |
| Impédance d'entrée | 50 Ohms |
| Puissance d'entrée maximale | +25 dBm (316 mW) |
| Plage de température de fonctionnement | 0 °C à +55 °C |
| Compatibilité logicielle | Compatible avec Keysight BenchVue et N1918A Power Panel |
Keysight (Agilent) U8488A Options:
- U8488A - 100 - Standard option – 10 MHz to 67 GHz
- U8488A - 301 - Power sensor cable, 5 ft (1.5 m)
- U8488A - 302 - Power sensor cable, 10 ft (3 m)
- U8488A - 303 - Power sensor cable, 16.4 ft (5 m)
- U8488A - 1A7 - ISO17025 compliant calibration and test data
- U8488A - A6J - ANZIZ540 compliant calibration and test data
- U8488A - ABJ - Japan - Japanese user guide; printed
- U8488A - 0B1 - English language user guide; printed
- U8488A - ABZ - Italy - Italian language user guide; printed
- U8488A - ABE - Spain - Spanish user guide; printed
- U8488A - ABD - Germany - German user guide; printed
- U8488A - AB2 - China - Simplified Chinese user guide; printed
- U8488A - ABF - France - French language user guide; printed
- U8488A - 0BF - English language programming guide; printed
- U8488A - 0BN - English language service guide; printed
| Model | U8488A |
|---|

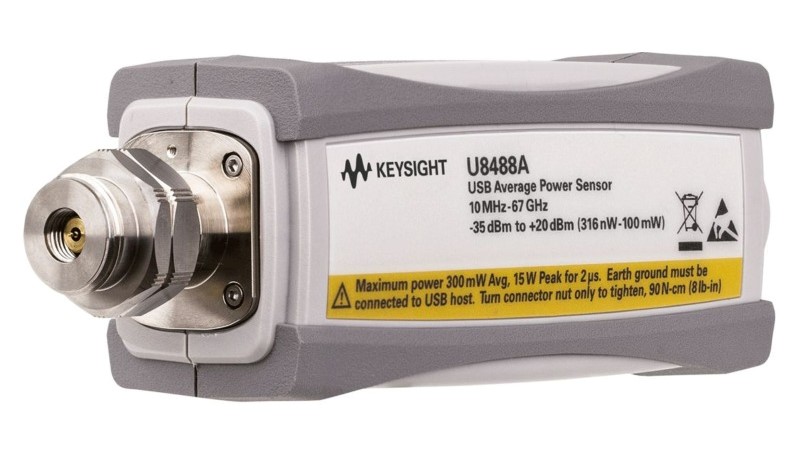

KEYSIGHT U8488A
The Keysight U8488A USB Power Sensor features a frequency range up to 67 GHz. Tthe U8488A allows you to make fast and accurate high frequency power measurements in applications ranging from PNA / MXG calibration to high volume manufacturing.
Real time measurement uncertainty
The U8488A USB thermocouple power sensor now computes this value in real time and at any given point, removing the need for manual MU calculations, shortening test time and providing highly accurate measurements. Users can also display power measurements and their measurement uncertainty simultaneously.
S-parameter and Gamma correction
Achieve greater accuracy with the S-parameter and gamma correction features, which correct impedance mismatch errors as well as the errors caused by components inserted between the DUT and power sensor.
Measurements direct from your PC
The U8488A USB power sensor comes with the N1918A power panel software at no additional cost. For enhanced features, the N1918A power analysis manager software is available for purchase separately.
Specfications of the Keysight U8488A Power Sensor include:
- Frequency range of 10 MHz to 67 GHz
- Fastest measurement speed for thermocouple sensor, > 900 readings/s (free run/fast buffer mode)
- Best-in-class power linearity of less than 0.8%
- Wide dynamic range from -35 dBm to +20 dBm
- Real time measurement uncertainty (MU) feature
- S-parameter and gamma correction function
- Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) or National Physical Laboratory (NPL)
- BenchVue software enabled
