Tektronix

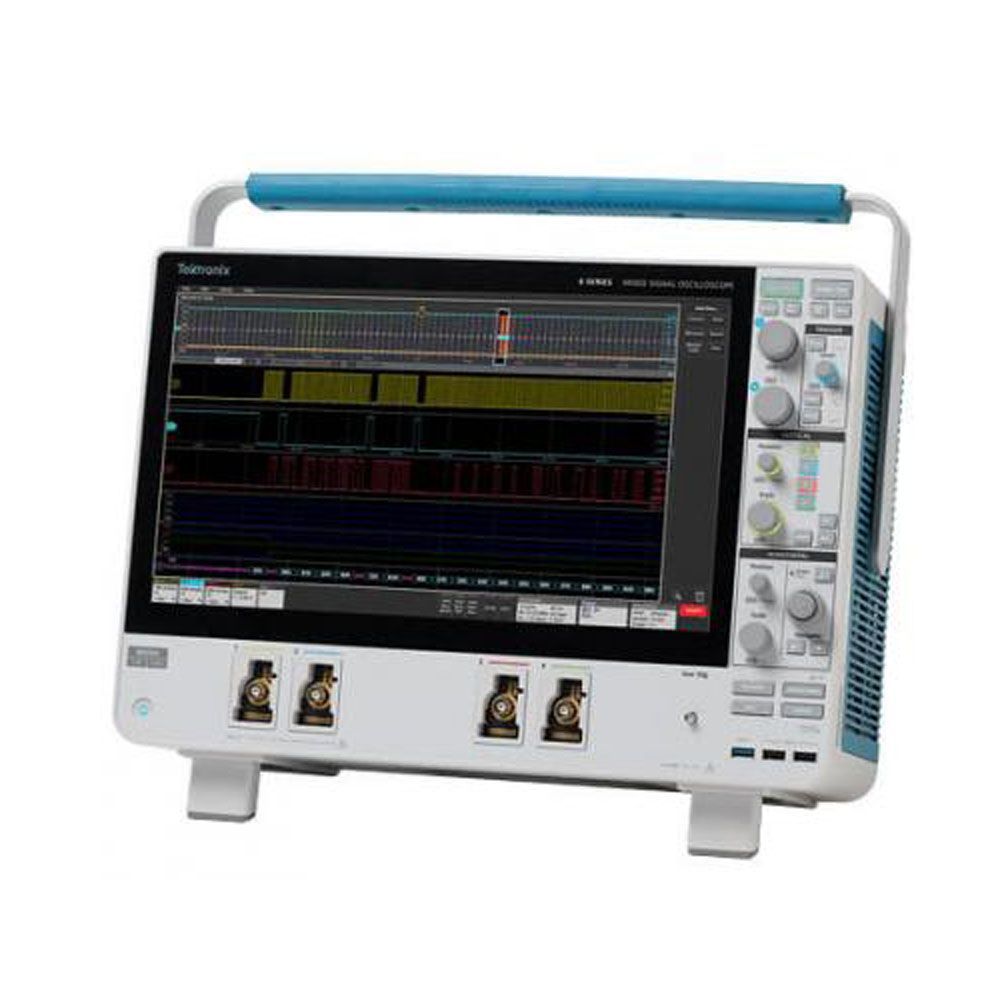

Tektronix MSO64
Optical Module
6 GHz Bande passante
4 voies Nombre de voies analogiques
25 GS/s Taux d'échantillonnage
12 bits Résolution verticale
jusqu'à 62,5 Mpoints par voie Longueur d'enregistrement
Tektronix MSO64 6-BW-4000 Features and Specifications:
- Bandwidth: 4GHz, upgradeable up to 6GHz and 8GHz
- Real-time sample rate: 25 GS/s (on four channels)
- Full high-definition resolution (1,920 x 1,080/396mm display)
- 15.6-inch capacitive touchscreen with pinch-zoom-swipe features
- 62.5M record length (upgradable to 125M/250M)
- FlexChannels: Four
- Decode and trigger support options
- Advanced power analysis options
Available configurations
| Model | Bandwidth | Channels |
| MSO64 6-BW-1000 | 1 GHz | 4 |
| MSO64 6-BW-2500 | 2.5 GHz | 4 |
| MSO64 6-BW-4000 | 4 GHz | 4 |
| MSO64 6-BW-6000 | 6 GHz | 4 |
| MSO64 6-BW-8000 | 8 GHz | 4 |
